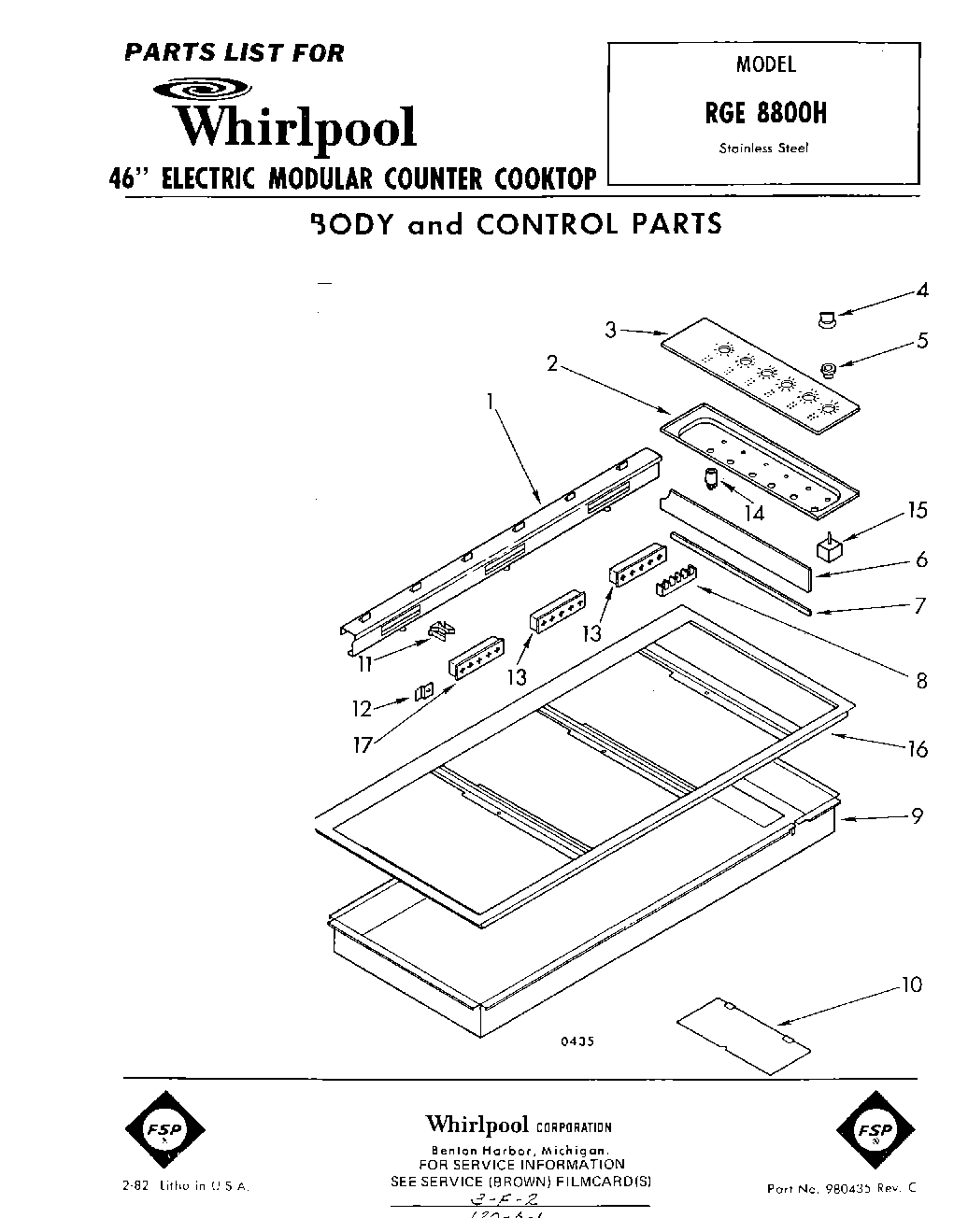

RGE8800H 01 – BODY AND CONTROL, LIT/OPTIONAL

Products

PositionProduct
1Shield, Wire
2Bracket, Control
3WPL 866454
3Gladd, Control Panel
4Knob, Control (2) (Oven Selector & Thermostat)
5Bushing, Switch (4)
6Divider, Box
7Pad, Foam
8WPL 834649
8Hex Nut, 10-32 (6)
8WP8203546 Whirlpool Terminal Block
9Box, Outer
10Cover, Access
11Terminal, Female (10)
12Clip, Receptacle (4)
12Model KIH160UK (Cord Only)
13Receptacle, Female (2)
14WPL 868433
15WPL 486525
15Switch, Infinite (4)
16Clip, Frame (4)
16Screw, 10-24 x 1 (4)
16Screw 10-24 x 1/2
16Frame, Cooktop
17Receptacle, Female
17Instructions, Installation
17Guide, Use & Care
17List, Repair Parts
