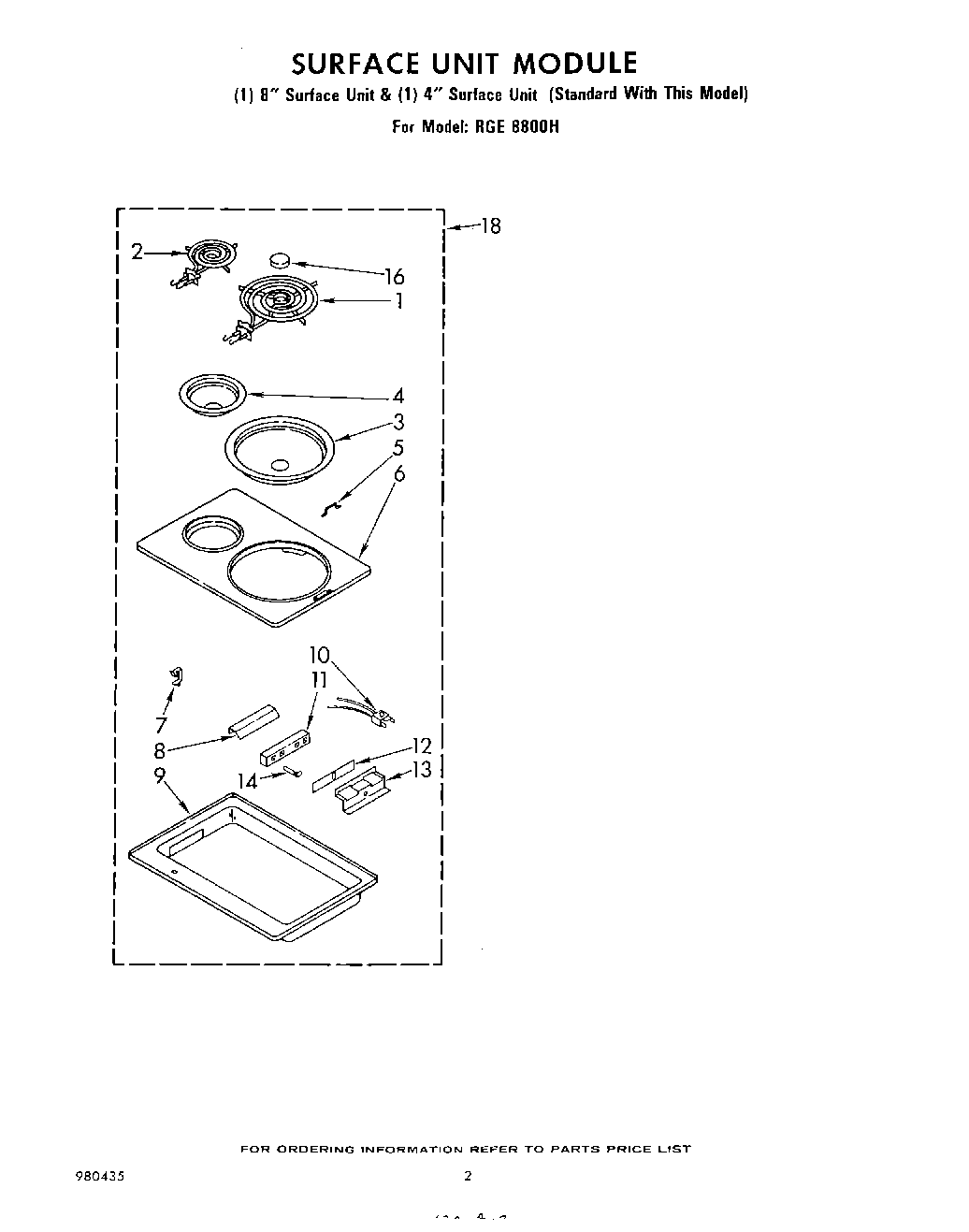

RGE8800H 02 – SURFACE UNIT

Products

Position	Product
1	WP660533 Whirlpool Oven 8" Surface Element
2	Unit, Surface (4``) (1)
3	DRIP BOWL 8" W/HOLE CHROME
4	Bowl, Surface Unit (4``) (1)
5	Handle, Cooktop
6	Screw, 8-32 x 3/8 (4)
6	Cooktop (4/8)
7	Clamp, Wire
8	Shield, Wire
9	Pan, Surface Unit
10	BURNER RECEPTACLE KIT
11	WPL 486525
11	Receptacle, Male
12	Insulator, Receptacle
13	Bracket, Ground
13	Pushnut, 1/8
13	WP486754 Whirlpool Compactor Screw
14	Terminal, Male (4)
16	WPL 868522
16	Medallion (For 4`` Unit)
18	Surface Unit Module (Complete)
