RGH647GEH1

RGH647GEH1

Written by

in

RGH647GEH1

Products

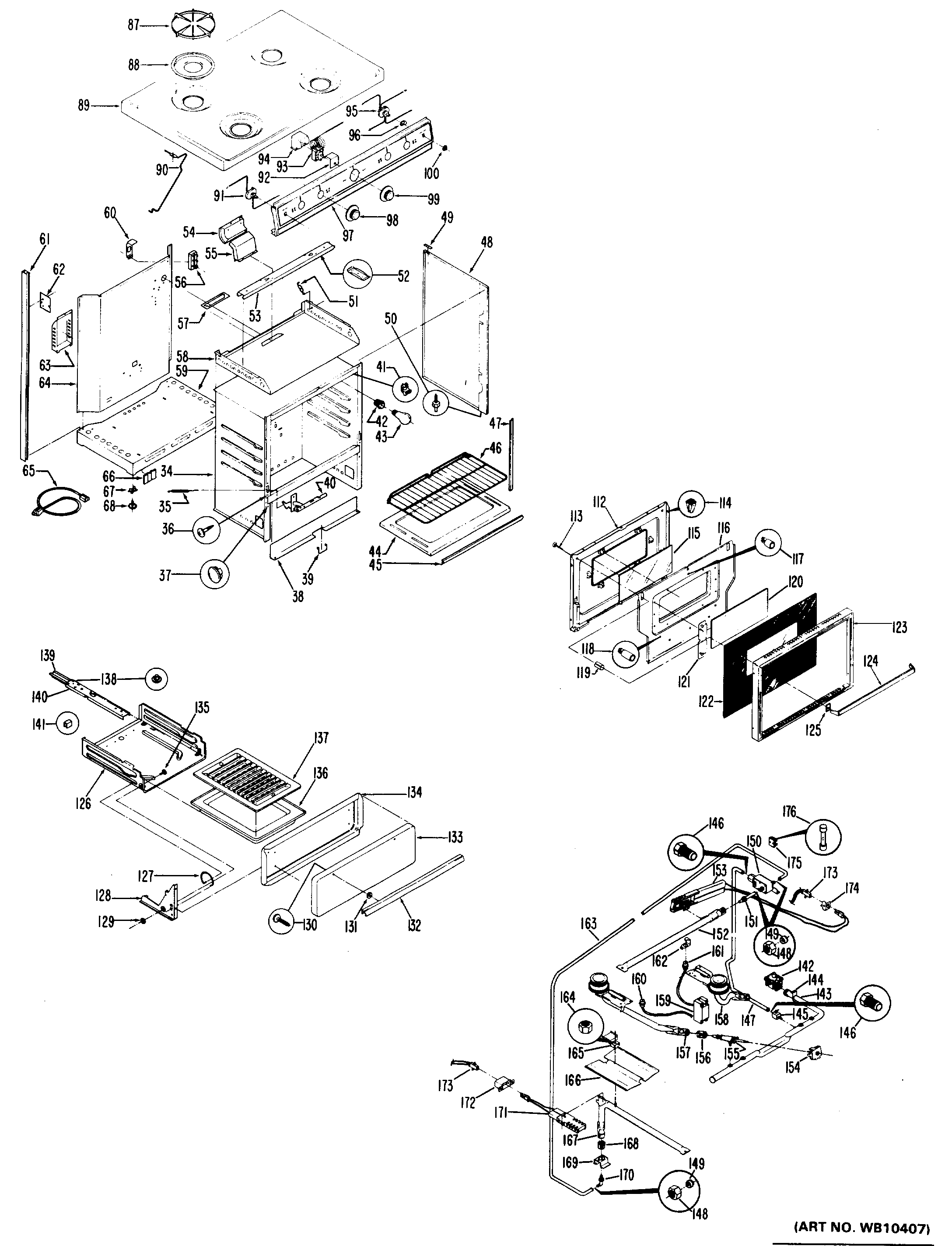

Position	Product
2	GUSSET-SUPPORT-RH
2	GUSSET-SUPPORT-LH
3	GEN WB14X0052
4	GEN WB01X0770
5	GEN WB02X4371
7	RETAINER-OVEN BURNER
9	GLASS-OVEN LIGHT LENS
10	GEN WB02X4373
11	GEN WB02X4375
12	GASKET-OEVN DOOR-SIDE
13	GASKET-DOOR-TOP & BOTTOM
14	GEN WB02X4378
15	GEN WB55X0535
16	GEN WB48X0172
17	OVEN RACK
18	TRIM-BACKSPLASH-SIDE-RH
18	TRIM-BACKSPLASH-SIDE-LH
19	GEN WB56X1714
19	GEN WB56X1713
19	GEN WB56X1712
19	GEN WB56X1711
20	GEN WB55X0536
21	GEN WB17X0190
22	SCREW-CATCH ASSEMBLY
23	CATCH ASSEMBLY-DOOR
25	GEN WB08X0244
26	GEN WB02X4379
27	FLUE BACK
28	GEN WB56X0175
29	COVER-OUTLET
30	SCREW-HINGE PIN
31	GEN WB14X0053
32	GEN WB01X0739
33	GEN WB49X0544
35	SPRING OVEN DOOR
36	WZ4X230D GE Screw Package 12
37	GEN WB01X0702
38	GEN WB49X0521
39	GEN WB02X4270
40	HINGE OVEN DOOR RH
40	HINGE OVEN DOOR LH
41	CLIP-THERMOSTAT BULB
42	GEN WB08X0241
43	GEN WZ12X1510
44	GEN WB55X0513
45	SEAL DOOR BOTTOM/TOP
46	GEN WB48X0166
47	SEAL DOOR SIDE
48	GEN WB56X1696
48	PANEL SIDE R/H WHITE
48	PANEL SIDE R/H ALMOND
48	GEN WB56X1694
49	GLIDE MAIN TOP
50	PIN BODY PANEL GUIDE
51	GEN WB14X0047
52	GEN WB01X0729
53	SUPPORT TO BURNER
54	GEN WB49X0540
55	GEN WB49X0541
56	TERMINAL BLOCK
57	GEN WB55X0514
58	BURNER BOX
59	GEN WB49X0552
60	GEN WB02X4211
61	GEN WB02X4367
62	GEN WB02X4368
63	COVER IGNITOR
64	GEN WB49X0542
65	GEN WB18X0214
66	CHANNEL STIFFENER
67	FASTENER LEG LEVELER
68	LEVELING LEG
69	GEN WB02X4363
70	GEN WB08X0252
71	INSULATOR-FLUOR. LT. REC
73	GEN WB02X4364
74	GEN WB07X1382
75	GEN WB36X0687
76	GEN WB56X1710
77	GEN WB27X0299
78	GEN WB19X0215
79	GEN WB36X0704
80	GEN WB07X1387
81	UNKNOWN
82	GEN WB03X0657
83	FASTENER-C/P FRAME
84	GEN WB02X4529
85	FASTENER-CLOCK-TUBULAR
86	GEN WB21X0401
87	GEN WB32X0083
88	GEN WB32X0084
89	GEN WB62X1607
89	GEN WB62X1608
90	GEN WB02X4280
91	SWITCH-FLUORESCENT LIGHT
92	GEN WB02X4274
93	GEN WB21X0394
94	GEN WB02X4273
95	GEN WB24X0340
96	GEN WB01X0725
97	GEN WB07X1427
98	GEN WB03X0658
99	GEN WB03X0659
100	BEZEL LIGHT SWITCH
101	GEN WB02X4365
102	GLASS-DOOR-INNER
103	GEN WB36X0705
104	GEN WB14X0051
105	GEN WB01X0768
106	GEN WB07X1383
107	BRACKET-DOOR FRAME-L END
108	GEN WB07X1384
109	GEN WB15X0210
110	SCREW-HANDLE
111	GEN WB01X0806
112	GEN WB55X0517
113	GEN WB01X0687
114	GEN WB07X0705
115	GEN WB36X0678
116	GEN WB65X0518
117	GEN WB01X0727
118	GEN WB01X0728
119	GEN WB02X4283
120	GEN WB36X0679
121	GEN WB02X4284
122	GEN WB36X0680
123	GEN WB07X1373
124	GEN WB15X0208
125	GEN WB01X0690
126	GEN WB58X0055
127	GEN WB09X0197
127	GEN WB09X0200
128	GEN WB10X0228
128	GEN WB10X0229
129	PUSH NUT FASTENER
130	GEN WB01X0699
131	GEN WB01X0700
132	GEN WB15X0206
133	GEN WB56X1678
133	GEN WB56X1677
134	GEN WB55X0516
135	GEN WB01X0701
137	WB48X10056 GE Broil Pan Set, Large Porcelain
138	GEN WB01X0707
139	GEN WB02X4202
140	GEN WB02X4203
141	GEN WB01X0703
142	GEN WB21X0395
143	GEN WB02X4382
144	GEN WB02X4188
145	VALVE MANUAL CUT-OFF
146	GEN WB01X0713
147	GEN WB02X4383
148	NUT COMPRESSION 3/8"
149	FERRULE 3/8"
150	GEN WB21X0400
151	GEN WB02X4384
152	GEN WB28X0051
153	IGNITER-OVEN BURNER
154	SWITCH IGNITER
155	GEN WB21X0397
156	MIXER AIR TOP BURNERS
157	GEN WB28X0062
158	BURNER-TOP FRONT
