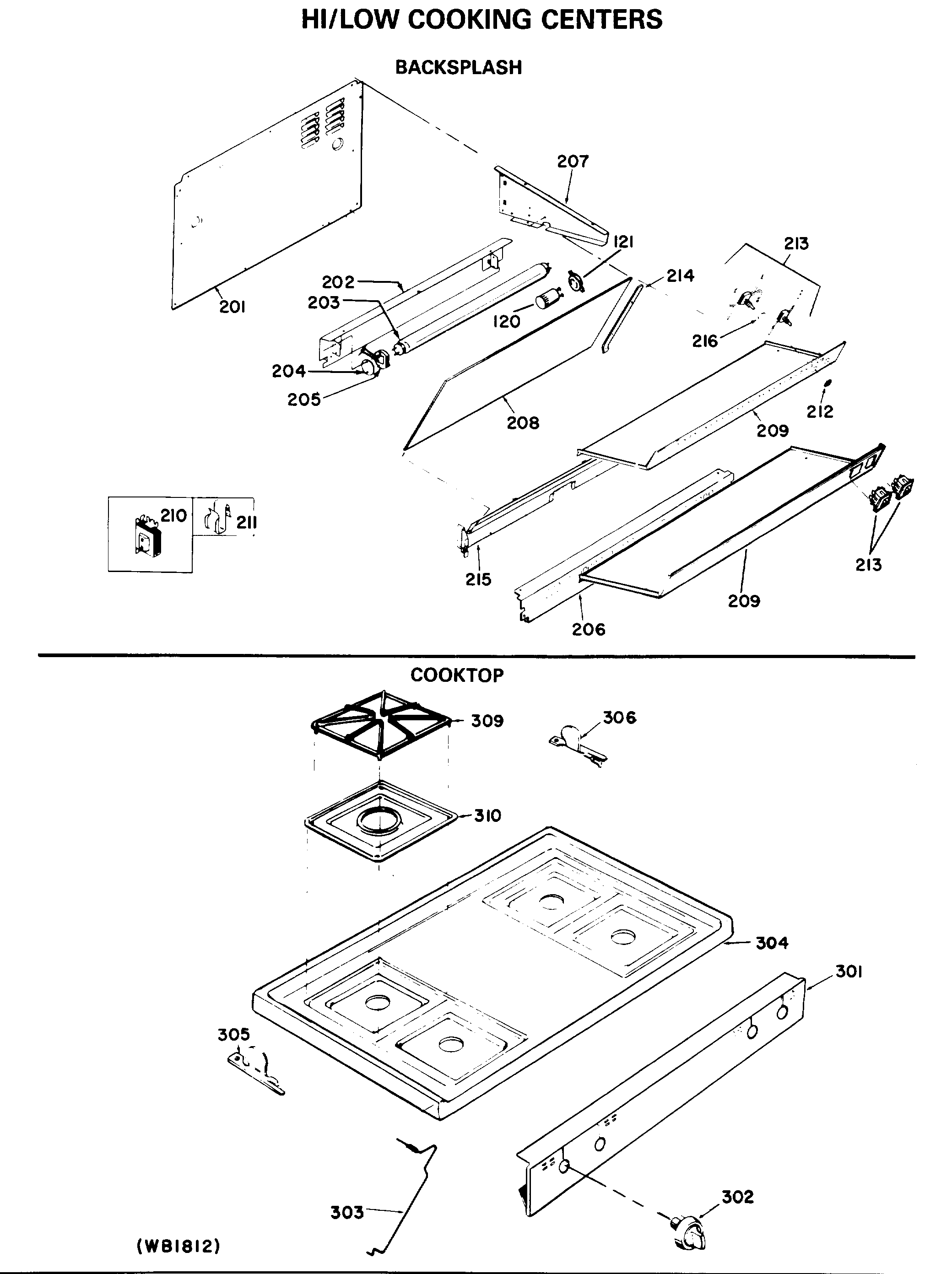

RGH647GEJ4 HI/LOW COOKING CENTERS

RGH647GEJ4 HI/LOW COOKING CENTERS

Written by

in

RGH647GEJ4 HI/LOW COOKING CENTERS

Products

PositionProduct
120GEN WB02X7914
121GEN WB02X7913
201GEN WB61X341
202GEN WB61X337
202GEN WB2X4666
202GEN WB02X7910
204INSULATOR-FL. LT. RECEP.
205GEN WB8X242
207GEN WB2X4369
207GEN WB2X4370
207GEN WB7X1482
208GEN WB36X741
209GEN WB61X0375
210GEN WB20X87
211FASTENER-CABLE CLAMP
213GEN WB24X5259
214GEN WB7X1386
214GEN WB7X1385
215GEN WB07X7078
301GEN WB7X1557
302GEN WB3X712
303CAM DOOR
304GEN WB62X1642
304GEN WB62X1641
305BRACKET-COOKTOP-LH
306BRACKET-COOKTOP-RH
309GRATE-TOP BURNER
310GEN WB32X0090
904GEN WB19X242
905GEN WB1X774
906GEN WB36X742
906*BUSHING-GLASS
907GEN WB2X4390
907TRIM-CONTROL PANEL
908GEN WB3X628
909GEN WB3X741
910KNOB-THERMOSTAT-UPPER
911KNOB-OVEN TEMPERATURE
912GEN WB21X5277
913SWITCH-2 POSITIION
1003HINGE-DOOR BOTTOM
1004GEN WB2X4371
1005SCREW-BOTTOM HINGE
1006GEN WB2X4372
1007CLIP-THERMOSTAT BULB
1008GEN WB2X4374
1009GASKET-OVEN LIGHT LENS
1010COVER-OVEN LIGHT
1011SEAL-DOOR-SIDES
1012SEAL-DOOR-TOP/BOTTOM
1013GEN WB39X67
1014BOTTOM-OVEN
1015GEN WB48X172
1016RACK-OVEN
1017*SCREW-BURNER BOX
1018PANEL-SIDE-RH-WHITE
1018PANEL-SIDE-RH-ALMOND
1018PANEL-SIDE-LH-WHITE
1018PANEL-SIDE-LH-ALMOND
1019GEN WB63X304
1019GEN WB2X4531
1021GEN WB1X801
1022GEN WB14X90
1023GEN BUY-LOCAL
1024RECEPTACLE-OVEN LIGHT
1025GEN WB2X4379
1026FLUE-BACK
1026GEN WB2X4532
1027PANEL-TOP
1028COVER-OUTLET-HOOD
1029GEN WB1X769
1030HINGE-DOOR-TOP
1031GEN WB1X1015
1032GEN WB2X4381
1032GEN WB63X276
