RGH83301 02 – SECTION

Products

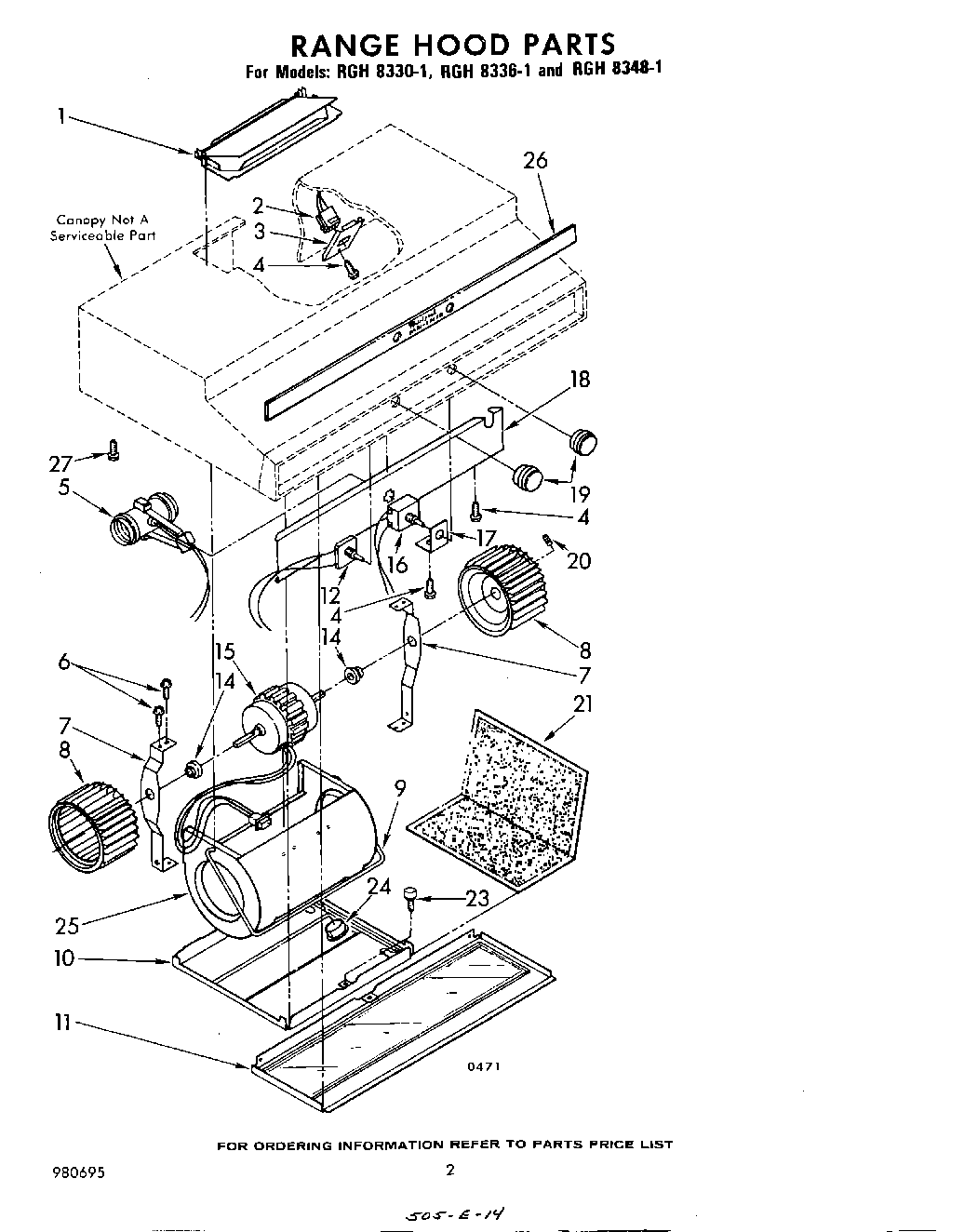

PositionProduct
1Damper
2Receptacle, Motor Wire
3Cover, Switch Box
4WP489069 Whirlpool Compactor Screw
5Lampholder, Snap-In
6WP90767 Whirlpool Screw
7Motor Bracket (2)
8Blower Wheel, R.S. (Includes Illus. 20)
8Vent Cover, Ductless
9Rod, Retaining
10Cover, Blower (Includes Illus. 23) (Stainless Steel)
11Glass & Frame Assembly (Stainless Steel)
12Switch, Rotary (Light)
14Motor Mount, Rubber (2)
15Motor, Blower
16Switch, Fan Motor
17Bracket, Speed Control
18Cover, Wiring Box
19Knob (2)
20Setscrew
21WP830865 Whirlpool Filter
23Screw, Thumb (3)
24Bushing, Split
25Blower Weld Assembly
26Nameplate (RGH8336-1)
26Nameplate (RGH8330-1)
26Nameplate (RGH8348-1)
27Order Blank, Filter
27Screw, 10-32 x 3/8
27Instructions, Installation
27List, Repair Parts
