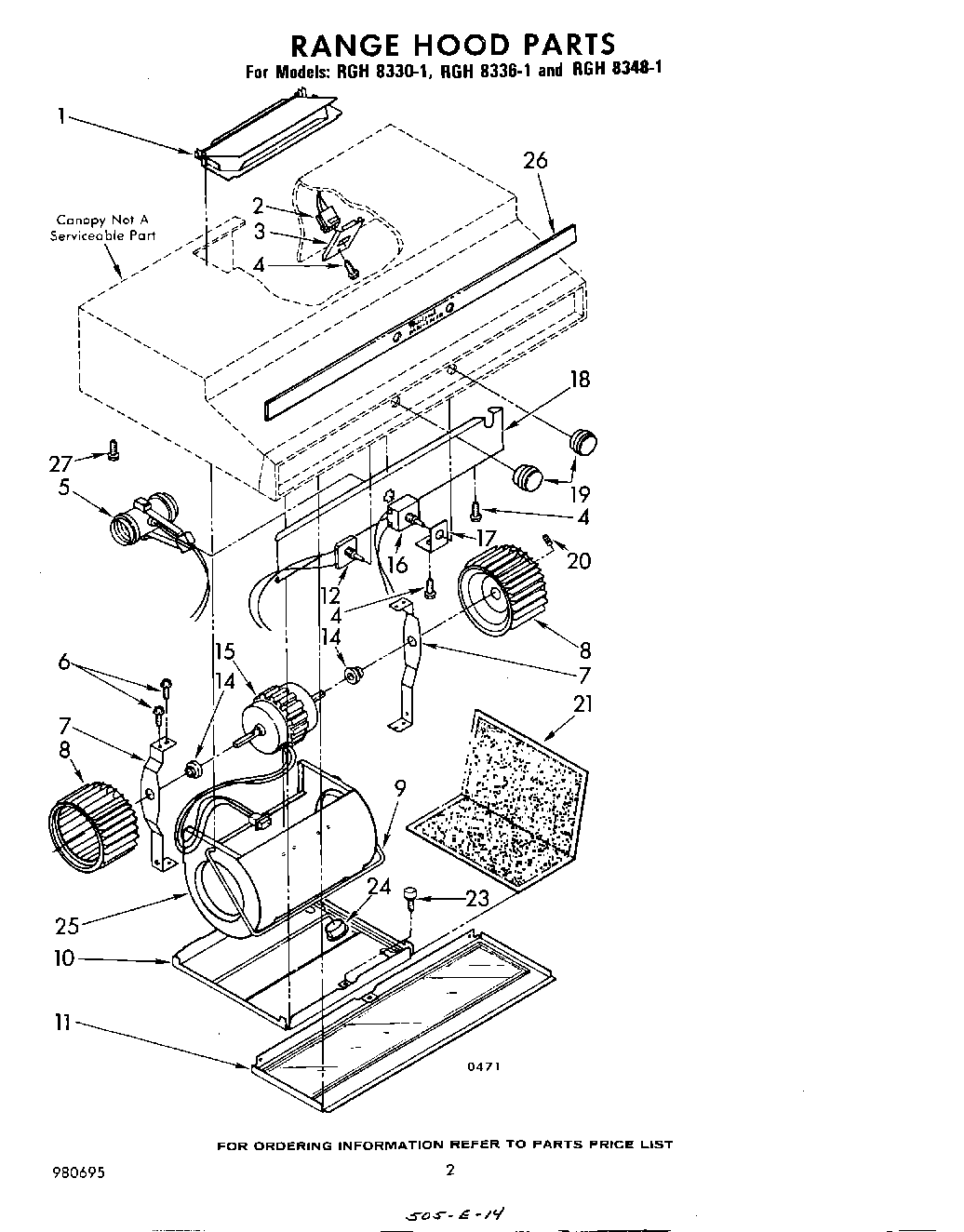

RGH83361 02 – SECTION

Products

Position	Product
1	Damper
2	Receptacle, Motor Wire
3	Cover, Switch Box
4	WP489069 Whirlpool Compactor Screw
5	Lampholder, Snap-In
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Blower Wheel, R.S. (Includes Illus. 20)
8	Vent Cover, Ductless
9	Rod, Retaining
10	Cover, Blower (Includes Illus. 23) (Stainless Steel)
11	Glass & Frame Assembly (Stainless Steel)
12	Switch, Rotary (Light)
14	Motor Mount, Rubber (2)
15	Motor, Blower
16	Switch, Fan Motor
17	Bracket, Speed Control
18	Cover, Wiring Box
19	Knob (2)
20	Setscrew
21	WP830865 Whirlpool Filter
23	Screw, Thumb (3)
24	Bushing, Split
25	Blower Weld Assembly
26	Nameplate (RGH8336-1)
26	Nameplate (RGH8330-1)
26	Nameplate (RGH8348-1)
27	Order Blank, Filter
27	Screw, 10-32 x 3/8
27	Instructions, Installation
27	List, Repair Parts
