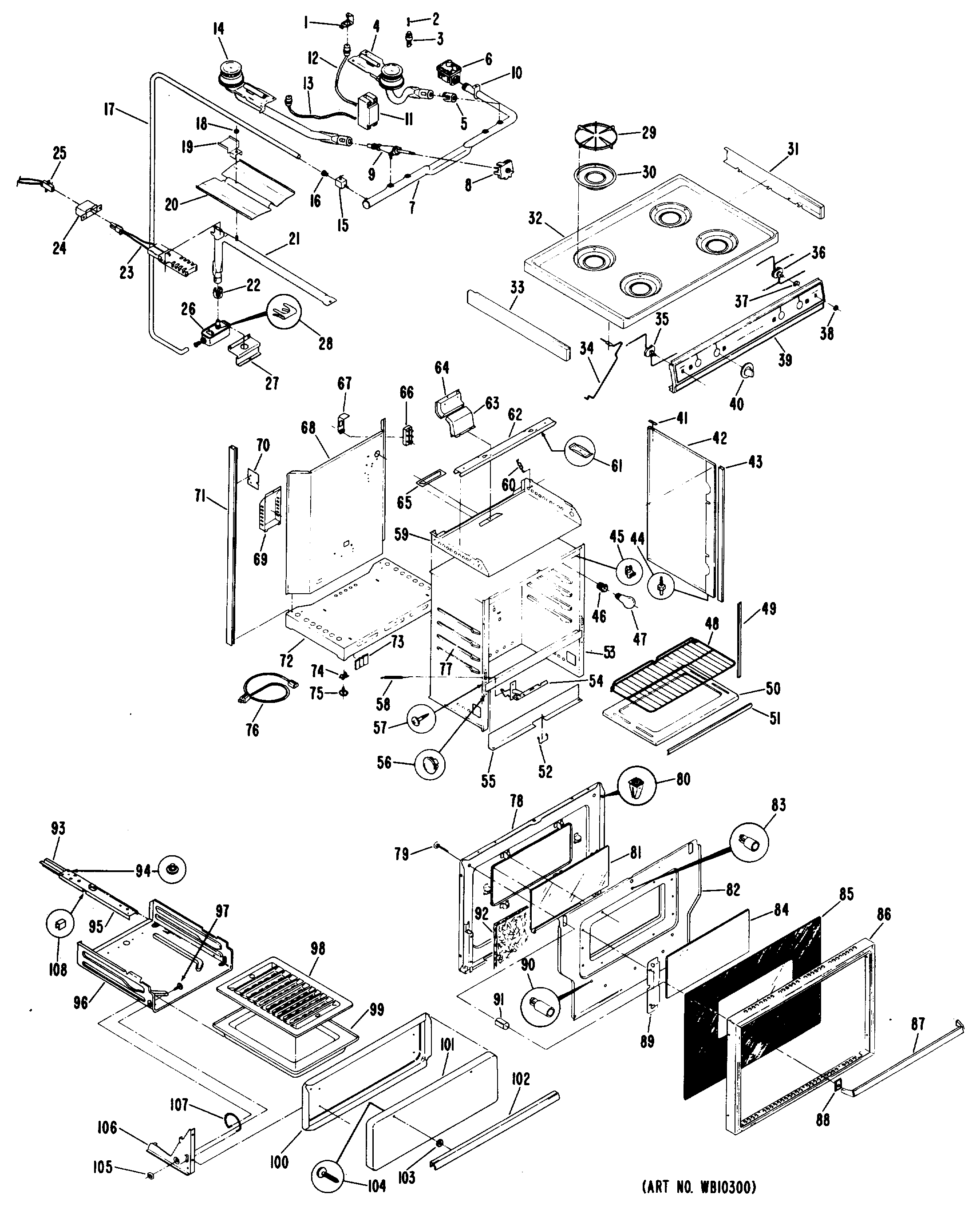

RGH846GEH2

RGH846GEH2

Written by

in

RGH846GEH2

Products

Position	Product
1	RETAINER IGN. HARNESS
2	GEN WB27X0277
3	GEN WB02X4213
4	GEN WB28X0061
5	MIXER AIR TOP BURNERS
6	GEN WB21X0395
7	GEN WB02X4298
8	SWITCH IGNITER
9	GEN WB21X0397
10	GEN WB02X4188
11	GEN WB21X0389
12	BASE IGNITOR RH
13	BASE IGNITOR LH
14	GEN WB28X0062
15	VALVE MANUAL CUT-OFF
16	GEN WB01X0713
17	TUBE OVEN GAS SUPPLY 7/16"X55"
18	NUT
20	GEN WB49X0511
21	BURNER OVEN
22	GEN WB02X4195
23	WB2X9998 GE Oven Flat Igniter
25	TERMINAL BLOCK-IGNITOR
26	VALVE-OVEN SAFETY
27	GEN WB02X4220
28	FASTENER VALVE MTG
29	GEN WB32X0083
30	GEN WB32X0084
32	GEN WB62X1607
32	GEN WB62X1608
34	GEN WB02X4280
35	GEN WB24X0340
36	SWITCH-FLUORESCENT LIGHT
37	GEN WB01X0808
38	BEZEL LIGHT SWITCH
39	GEN WB07X1434
40	GEN WB03X0658
41	GLIDE MAIN TOP
42	PANEL SIDE R/H WHITE
42	PANEL SIDE R/H ALMOND
42	GEN WB56X1694
42	GEN WB56X1696
43	TRIM VERTICAL
44	PIN BODY PANEL GUIDE
45	CLIP-THERMOSTAT BULB
46	GEN WB08X0241
47	RANGE ONLY 40W 120V APPL BULB
48	GEN WB48X0180
49	SEAL DOOR SIDE
50	GEN WB55X0513
51	SEAL DOOR BOTTOM/TOP
52	GEN WB02X4270
54	HINGE OVEN DOOR LH
54	HINGE OVEN DOOR RH
55	GEN WB49X0521
56	PLUG BUTTON-FRONT FRAME
57	WZ4X230D GE Screw Package 12
58	SPRING OVEN DOOR
59	BURNER BOX
60	GEN WB14X0047
61	GEN WB01X0729
62	SUPPORT TO BURNER
63	GEN WB49X0541
64	GEN WB49X0540
65	GEN WB55X0514
66	GEN WZ08X0001
66	TERMINAL BLOCK
67	GEN WB02X4211
68	GEN WB49X0542
70	GEN WB02X4368
71	GEN WB02X4367
72	GEN WB49X0529
73	CHANNEL STIFFENER
74	FASTENER LEG LEVELER
75	LEVELING LEG
76	GEN WB18X0222
77	INSULATION SIDES & TOP
78	GEN WB55X0517
79	GEN WB01X0687
80	GEN WB01X0705
81	GEN WB36X0678
82	GEN WB55X0518
83	GEN WB01X0727
84	GEN WB36X0679
85	GEN WB36X0680
86	GEN WB07X1373
87	GEN WB16X0207
88	GEN WB01X0690
89	GEN WB02X4284
90	GEN WB01X0728
91	GEN WB02X4283
92	GEN WB02X4187
93	GEN WB02X4202
94	GEN WB01X0702
95	GEN WB02X4203
96	GEN WB58X0055
97	GEN WB01X0701
98	WB48X10056 GE Broil Pan Set, Large Porcelain
100	INSULATION-BROILER DOOR
100	GEN WB55X0516
101	GEN WB56
101	GEN WB56X1677
109	COVER-OUTLET
110	BRACKET-MAGNETRON
111	RETAINER-TRIM
112	TRIM
113	END CAP-LEFT
113	END CAP-RIGHT
114	WASHER
115	MOTOR-STIRRER
117	SOCKET-UPPER OVEN LIGHT
118	CHANNEL
119	BRACKET MAG. SUPT.
120	COVER-DUCT
121	COVER
122	GEN WB02X4406
123	GEN WB02X0080
124	ANGLE-AIR BAFFLE
125	ANGLE-AIR BAFFLE
126	SCREW STIRRER FAN
126	FAN-STIRRER
127	COVER-STIRRER
128	NUT
129	STRIKE-DOOR
130	GROMMET-DOOR
131	GLIDE-TRAY
132	CLIP-TRAY
133	TRAY-GLASS
134	TRIM-FRONT
135	TRIM-BOTTOM
136	END CAP
137	COVER
138	SEAL
140	GEN WB02X4412
141	GEN WB20X0081
142	GEN WB02X4413
143	GEN WB07X0386
143	TRIM-BACKSPLASH-SIDE-RH
144	GEN WB56X1711
144	GEN WB56X1714
144	GEN WB56X1713
144	GEN WB56X1712
145	GEN WB02X4410
146	WRAPPER BACK/BOTTOM
147	GEN WB02X4409
147	GEN WB02X4408
148	GEN WB27X0302
149	GEN WB21X0402
150	FUSE
151	SOCKET-FUSE
152	FAN BLADE-MAGNETRON
153	FAN MOTOR
154	ROD-FAN SUPPORT
155	BRACKET
156	DIODE-HV
157	TRANSFORMER-HV
158	GEN WZ02X0514
159	RETAINER
160	SHIELD
161	GEN WB27X0321
162	GEN WB24X0344
163	TRANSFORMER-LV
164	TRIAC HEAT SINK ASM
165	GEN WB02X4424
166	FASTENER
167	GEN WB19X0211
168	GEN WB27X0320
169	GEN WB92X4422
170	PANEL-SWITCH MOUNTING
171	KEYPANEL
172	GEN WB36X0713
173	TRIM
174	UNKNOWN
175	GEN WB03X0669
176	GEN WB03X0670
177	BUTTON
178	BEZEL
179	GEN WB24X0243
180	PLUG-9 PIN
181	GEN WB21X0403
182	GEN WB24X0342
183	GEN WB92X4425
184	COVE-SEAL
185	CHANNEL
186	GEN WB36X0708
187	GEN WB02X4416
188	FRAME-DOOR
189	HINGE-DOOR
190	GASKET-DOOR
191	PANEL-DOOR
192	LINER-DOOR
193	SEAL
194	CHANNEL
195	SCREW DOOR STRIKE
196	NUT-HEX
197	INSERT
198	GEN WB01X0780
199	SPRING
200	HOOK-HANDLE
201	GEN WB15X0211
202	EXTRUSION
204	SHIELD REAR WALL
205	BLOWER MOTOR ASSEMBLY
206	GEN WB02
