RGH846GEJ1 HI/LOW COOKING CENTERS

RGH846GEJ1 HI/LOW COOKING CENTERS

Written by

in

RGH846GEJ1 HI/LOW COOKING CENTERS

Products

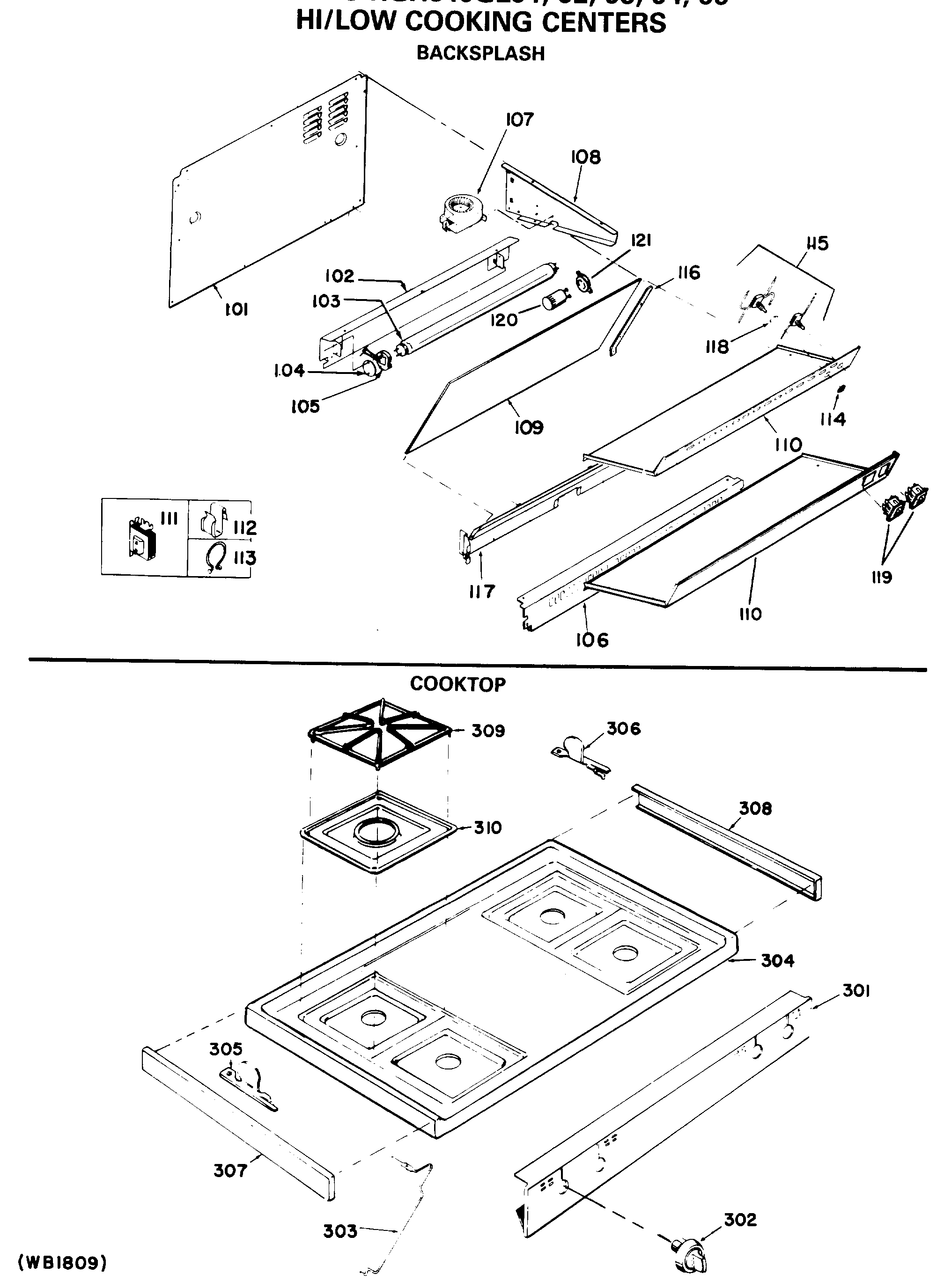

Position	Product
101	GEN WB61X0336
102	GEN WB61X0337
103	FLUORESCENT LAMP
104	GEN WB02X10079
105	GEN WB8X252
106	GEN WB7X1482
107	BLOWER MOTOR ASSEMBLY
108	GEN WB2X10120
108	GEN WB2X10121
109	GEN WB36X0687
110	GEN WB61X0340
111	GEN WB20X0087
112	FASTENER- CABLE CLAMP
113	GEN WB02X10080
114	GEN WB07X1479
115	GEN WB24X0398
116	TRIM-BACKSPLASH-SIDE-LH
116	TRIM-BACKSPLASH-SIDE-RH
117	GEN WB07X1552
118	GEN WB01X0808
301	CONTROL PANEL (MANIFOLD)
302	KNOB-TOP BURNER VALVE
303	CAM DOOR
304	GEN WB62X1641
304	GEN WB62X1642
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB07X1526
308	GEN WB07X1527
309	GRATE-TOP BURNER
310	GEN WB32X0090
901	BUTTON
902	GEN WB24X400
902	GEN WB18X279
902	GEN WB07X1549
903	GEN WB3X742
904	GEN WB3X743
905	KNOB-CLOCK
906	TRIM
907	GEN WB36X713
907	*BUSHING-GLASS
907	GEN WB2X10070
908	GEN WB19X0240
909	GEN WB1X782
910	BEZEL
911	KEYPANEL
912	PANEL-SWITCH MOUNTING
912	*SCREW-SWITCH PANEL
913	GEN WB27X0320
913	GEN WB01X0815
914	GEN WB02X10069
916	SWITCH-2 POSITIION
916	SCREW-CATCH ASSEMBLY
917	THERMOSTAT
920	GEN WB1X801
920	SWITCH-ON/OFF
920	GEN WB2X4422
921	GEN WB07X1550
922	GEN WB02X4425
923	COVE-SEAL
1001	OVEN ASSEMBLY
1001	GEN WB02X4435
1002	SEAL
1003	COVER
1004	END CAP
1005	TRIM-BOTTOM
1006	STRIKE-DOOR
1007	GROMMET-DOOR
1008	TRIM-FRONT
1009	TRAY-GLASS
1010	CLIP-TRAY
1011	GLIDE-TRAY
1012	COVER-STIRRER
1013	FAN-STIRRER
1014	NUT
1015	GEN WB20X0080
1016	ANGLE-AIR BAFFLE
1017	ANGLE-AIR BAFFLE
1018	CHANNEL
1019	COVER
1020	COVER-DUCT
1021	BRACKET-MAGNETRON
1022	GEN WB2X4406
1023	SOCKET-UPPER OVEN LIGHT
1024	RANGE ONLY 40W 120V APPL BULB
1025	*BAFFLE-TRANSFORMER
1026	MOTOR-STIRRER
1026	WASHER
1027	RETAINER-TRIM
1028	TRIM
1029	END CAP-LEFT
1029	END CAP-RIGHT
1030	GEN WB2X4408
1030	GEN WB2X4409
1031	GEN WB63X0297
1032	COVER-OUTLET
1033	GEN WB02X10075
1034	GEN WB63X298
1034	GEN WB2X10124
1035	PANEL-SIDE-WHITE-LH
1035	PANEL-SIDE-ALMOND-LH
1035	PANEL-SIDE-ALMOND-RH
1035	PANEL-SIDE-WHITE-RH
1037	GEN WB02X10077
1038	GEN WB2X4413
1039	GEN WB20X0081
1041	GEN WB02X10078
1201	GEN WB1X1041
1201	GEN WB27X0302
1203	GEN WB01X1042
1203	GEN WB21X0404
1204	FUSE
1205	GEN WB98X0246
1205	GEN WB01X0819
1208	GEN WB02X10071
1209	FAN MOTOR
1211	ROD-FAN SUPPORT
1213	GEN WB18X221
1213	DIODE-HV
1214	GEN WB18X280
1214	GEN WB27X305
1215	GEN WB01X1043
1216	RETAINER
1217	SHIELD
1218	GEN WB27X0321
1218	GEN WB2X4430
1219	GEN WB27X376
1219	TRANSFORMER-LV
1220	GEN WB24X0397
1225	GEN WB01X1044
1226	GEN WB02X10046
1227	GEN WB27X0375
1228	GEN WB01X1045
1229	GEN WB01X819
