RGH946GEH2

RGH946GEH2

Written by

in

RGH946GEH2

Products

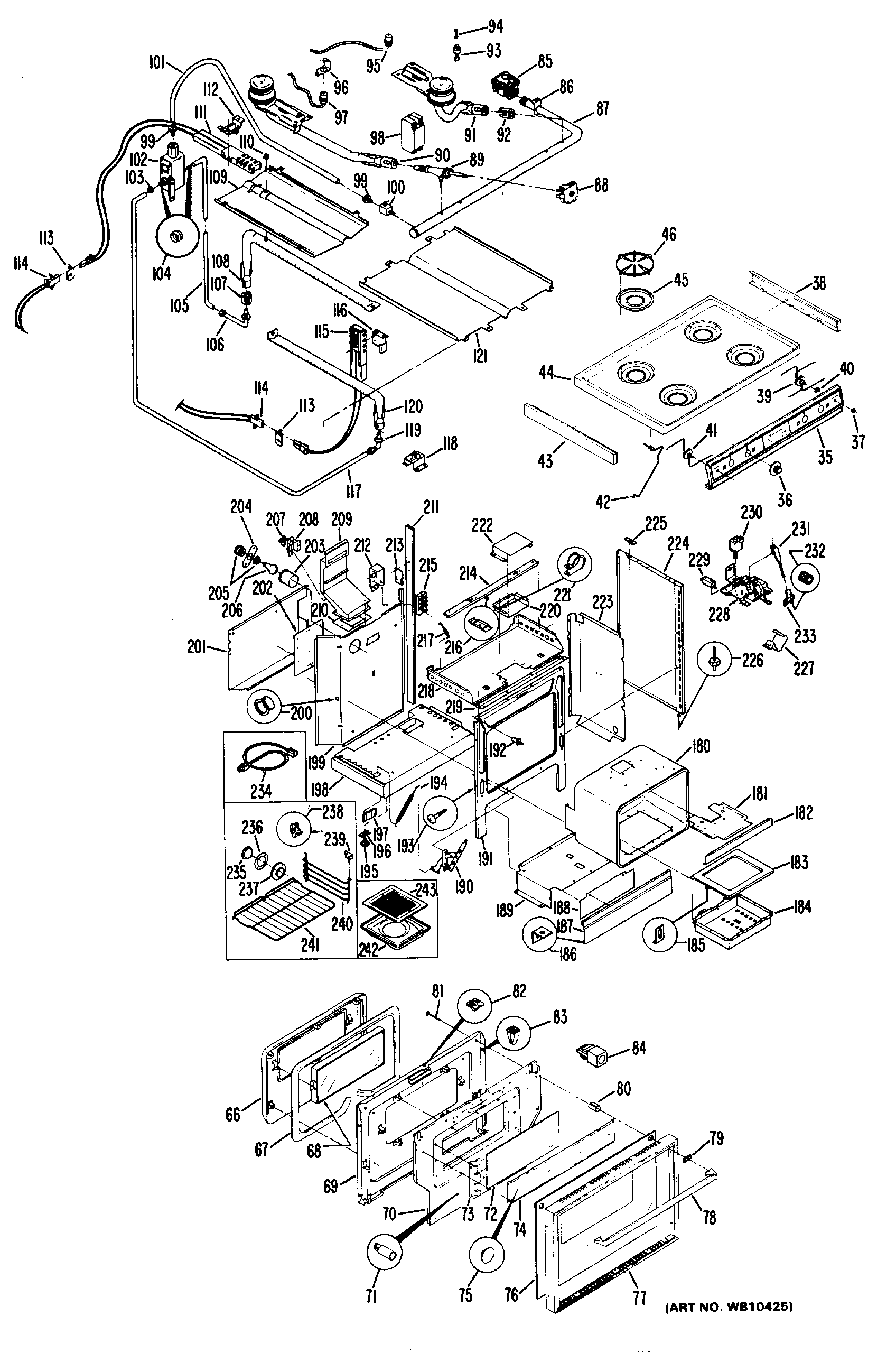

Position	Product
1	SHIELD REAR WALL
2	GEN WB02X4363
3	INSULATOR-FLUOR. LT. REC
4	RECEPTACLE-FLUOR LIGHT
6	GEN WB36X0687
7	GEN WB07X1382
8	BLOWER MOTOR ASSEMBLY
9	GUSSET-MICROSUPPORT R/H
9	GUSSET MICRO-SUPPORT L/H
10	GEN WB02X4537
11	PANEL-SPLASHER (UPPER)
12	GEN WB27X0299
13	GEN WB19X0211
14	TRIM
15	UNKNOWN
16	GEN WB03X0663
17	GEN WB03X0664
18	BUTTON
19	BEZEL
20	GEN WB36X0707
21	GEN WB02X4422
22	PANEL-SWITCH MOUNTING
23	KEYPANEL
24	GEN WB27X0320
25	GEN WB02X4424
26	FASTENER
27	GEN WB02X4433
28	GEN WB02X4434
29	SWITCH-SELECTOR
30	GEN WB21X0405
31	SWITCH-ON/OFF
32	PLUG-9 PIN
33	GEN WB02X4425
34	COVE-SEAL
35	GEN WB07X1431
36	GEN WB04X0658
37	GEN WB01X0726
38	GEN WB07X1363
39	SWITCH-FLUORESCENT LIGHT
40	GEN WB01X0808
41	SWITCH-OVEN LIGHT
42	GEN WB02X4280
43	TRIM-COOKTOP-LEFT
44	GEN WB62X1608
44	GEN WB62X1607
45	GEN WB32X0084
46	GEN WB32X0083
47	GEN WB02X4538
48	GEN WB36X0708
49	CHANNEL
50	GEN WB02X4416
51	FRAME-DOOR
52	HINGE-DOOR
53	GASKET-DOOR
54	PANEL-DOOR
55	LINER-DOOR
56	SEAL
57	CHANNEL
58	SCREW DOOR STRIKE
60	GEN WB02X4539
61	EXTRUSION
62	GEN WB01X0780
63	SPRING
64	GEN WB15X0211
65	HOOK-HANDLE
66	GEN WB55X0556
67	SEAL-DOOR
68	GLASS PACKAGE (VIS. S/C)
69	GEN WB55X0520
70	SHIELD-WOOL (VIS.)
71	FASTENER-NYLON SPACER (1
71	FASTENER SPACER RED
72	GEN WB36X0679
73	BRACKET-GLASS
74	SHIELD-HEAT
75	PLUG BUTTON-FRONT FRAME
76	GEN WB36X0709
77	TRIM-OVEN DOOR FRAME
78	GEN WB15X0207
79	GEN WB01X0690
80	GEN WB02X4283
81	GEN WB01X0687
82	*FASTENER-8AU TYPE
83	GEN WB01X0705
84	GEN WB02X4540
85	GEN WB21X0395
86	GEN WB02X4188
87	GEN WB02X4298
88	SWITCH IGNITER
89	GEN WB21X0397
90	GEN WB28X0062
91	GEN WB28X0061
92	MIXER AIR TOP BURNERS
93	GEN WB02X4213
94	GEN WB27X0277
95	BASE IGNITOR RH
96	RETAINER IGN. HARNESS
97	BASE IGNITOR LH
98	GEN WB21X0389
99	GEN WB01X0713
100	VALVE MANUAL CUT-OFF
101	TUBE VALVE SUPPLY 7/16X26-1/2
102	GEN WB21X0398
103	GEN WB01X0693
104	GEN WB01X0692
105	TUBE BROILER SUPPLY 3/8"X14"
106	GEN WB02X4304
107	GEN WB02X4305
108	GEN WB28X0046
109	BAFFLE BROILER BURNER
110	NUT
111	12400035 Whirlpool Oven Flat Style Igniter Kit
112	GEN WB02X4307
114	GEN WB18X0227
115	GEN WB02X4309
116	GEN WB02X4310
117	GEN WB02X4485
118	GEN WB02X4311
119	MIXER ELBOW (OVEN)
120	GEN WB28X0047
121	GEN WB49X0527
122	GEN WB27X0302
123	GEN WB21X0402
124	FUSE
125	SOCKET-FUSE
126	FAN BLADE-MAGNETRON
127	FAN MOTOR
128	ROD-FAN SUPPORT
129	BRACKET
130	DIODE-HV
131	TRANSFORMER-HV
132	RETAINER
133	SHIELD
134	GEN WB27X0231
135	TRANSFORMER-LV
136	GEN WB02X4517
137	GEN WB24X0344
138	TRIAC HEAT SINK ASM
139	GEN WB02X4432
140	NUT-HEX
142	SEAL
143	COVER
144	END CAP
145	TRIM-BOTTOM
146	STRIKE-DOOR
147	GROMMET-DOOR
148	TRIM-FRONT
149	TRAY-GLASS
150	CLIP-TRAY
151	GLIDE-TRAY
152	COVER-STIRRER
153	FAN-STIRRER
154	NUT
155	GEN WB20X0080
156	ANGLE-AIR BAFFLE
157	ANGLE-AIR BAFFLE
158	CHANNEL
159	COVER
160	COVER-DUCT
161	BRACKET MAG. SUPT.
162	GEN WB02X4406
163	SOCKET-UPPER OVEN LIGHT
165	MOTOR-STIRRER
166	WASHER
168	TRIM
169	END CAP-LEFT
169	END CAP-RIGHT
170	GEN WB02X4409
170	GEN WB02X4408
171	GEN WB56
181	GEN WB55X0525
182	GEN WB55X0527
183	BOTTOM OVEN
184	GEN WB49X0528
185	GEN WB02X4313
186	GEN WB02X4314
187	GEN WB56X1692
188	GEN WB55X0528
189	GEN WB55X0529
190	HINGE OVEN DOOR LH
190	HINGE OVEN DOOR RH
192	GEN WB24X0335
193	SCREW-PANEL MTG
194	GEN WB09X0201
195	LEVELING LEG
196	FASTENER LEG LEVELER
197	CHANNEL STIFFENER
198	GEN WB49X0556
199	GEN WB49X0530
200	GEN WB02X4316
201	GEN WB55X0530
202	GEN WB55X0531
203	GEN WB02X4317
204	GEN WB02X4318
205	GEN WB08X0243
206	RANGE ONLY 40W 120V APPL BULB
207	SWITCH PRE-HEAT
207	SWITCH-THERMAL-DOOR LOCK
208	GEN WB02X4319
209	GEN WB49X0545
210	GEN WB02X4320
211	GEN WB02X4367
212	GEN WB02
