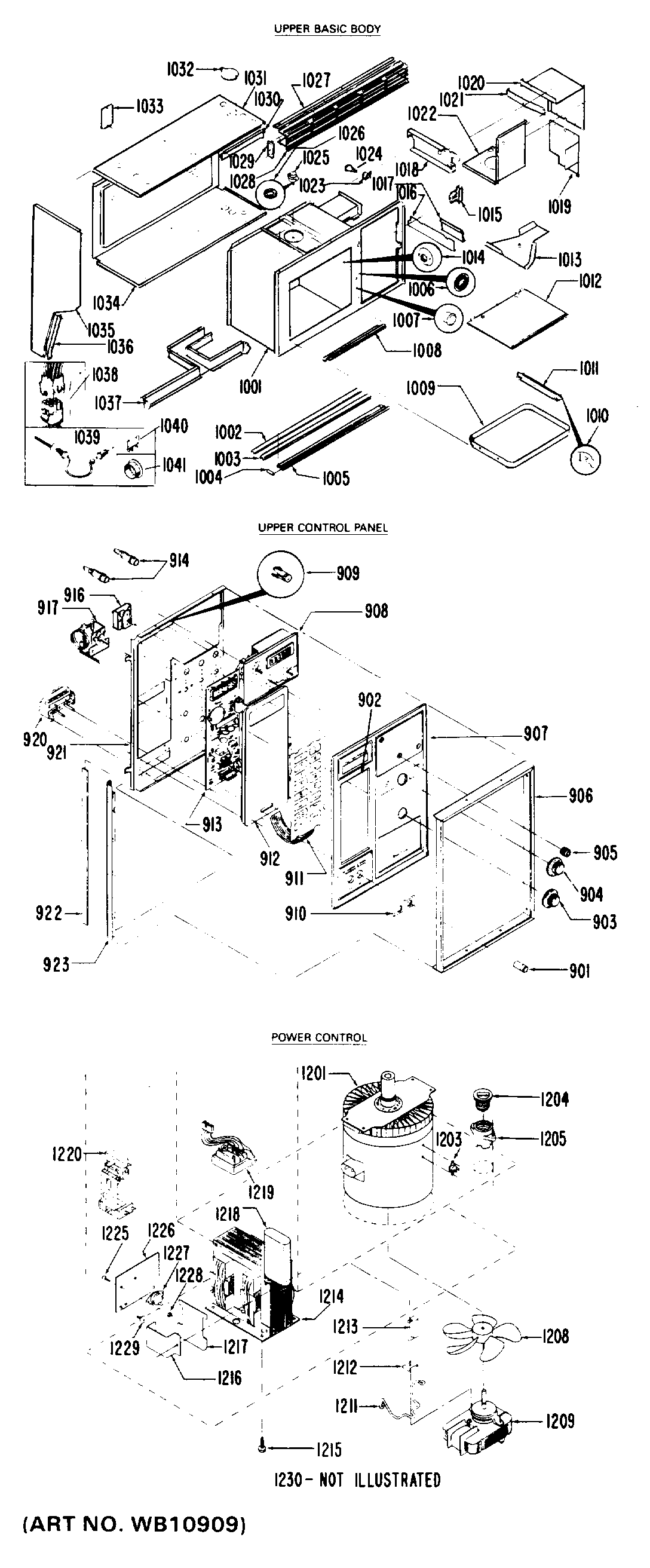

RGH946GEJ2 UPPER BASIC BODY

RGH946GEJ2 UPPER BASIC BODY

Written by

in

RGH946GEJ2 UPPER BASIC BODY

Products

Position	Product
901	BUTTON
902	GEN WB07X1549
903	GEN WB3X735
904	GEN WB3X736
905	KNOB-CLOCK
906	TRIM
907	GEN WB36X0737
907	*BUSHING-GLASS
908	GEN WB19X0240
909	GEN WB1X782
910	BEZEL
911	KEYPANEL
912	PANEL-SWITCH MOUNTING
912	*SCREW-SWITCH PANEL
913	GEN WB27X0320
913	GEN WB01X0815
914	GEN WB02X10069
916	GEN WB24X0396
917	GEN WB21X0449
920	GEN WB1X801
920	SWITCH-ON/OFF
920	GEN WB2X4422
921	GEN WB2X10070
921	GEN WB7X1555
922	GEN WB02X4425
923	COVE-SEAL
1001	GEN WB02X4435
1001	OVEN ASSEMBLY
1002	SEAL
1003	COVER
1004	END CAP
1005	TRIM-BOTTOM
1006	STRIKE-DOOR
1007	GROMMET-DOOR
1008	TRIM-FRONT
1009	TRAY-GLASS
1010	CLIP-TRAY
1011	GLIDE-TRAY
1012	COVER-STIRRER
1013	FAN-STIRRER
1014	NUT
1015	GEN WB8X80
1016	ANGLE-AIR BAFFLE
1017	ANGLE-AIR BAFFLE
1018	CHANNEL
1019	COVER
1020	COVER-DUCT
1021	GEN WB2X4405
1022	GEN WB2X4406
1023	SOCKET-UPPER OVEN LIGHT
1024	RANGE ONLY 40W 120V APPL BULB
1025	GEN WB02X10076
1026	MOTOR-STIRRER
1026	WASHER
1027	RETAINER-TRIM
1028	TRIM
1029	END CAP-RIGHT
1029	END CAP-LEFT
1030	GEN WB2X4409
1030	GEN WB2X4408
1031	GEN WB63X0297
1032	COVER-OUTLET
1033	GEN WB02X10075
1034	GEN WB63X298
1035	PANEL-SIDE-ALMOND-RH
1035	PANEL-SIDE-WHITE-LH
1035	PANEL-SIDE-ALMOND-LH
1035	PANEL-SIDE-WHITE-RH
1037	GEN WB02X10077
1038	GEN WB08X0270
1039	GEN WB20X0081
1040	GEN WB01X1047
1041	GEN WB02X10078
1201	GEN WB27X0302
1201	GEN WB1X1041
1203	GEN WB21X0404
1203	GEN WB01X1042
1204	FUSE
1205	GEN WB1X1042
1205	SOCKET-FUSE
1208	GEN WB02X10071
1209	FAN MOTOR
1211	ROD-FAN SUPPORT
1212	BRACKET
1213	DIODE-HV
1213	GEN WB27X305
1214	TRANSFORMER-HV
1215	GEN WB01X1043
1216	RETAINER
1217	SHIELD
1218	GEN WB27X0321
1219	TRANSFORMER-LV
1219	*BAFFLE-TRANSFORMER
1220	GEN WB24X0397
1225	GEN WB01X1044
1226	GEN WB02X10046
1227	GEN WB27X0375
1228	GEN WB01X1045
1229	GEN WB01X819
1230	GEN WB18X278
1230	GEN WB27X0393
1230	UNKNOWN
1230	GEN WB18X0270
1230	GEN WB18X0221
