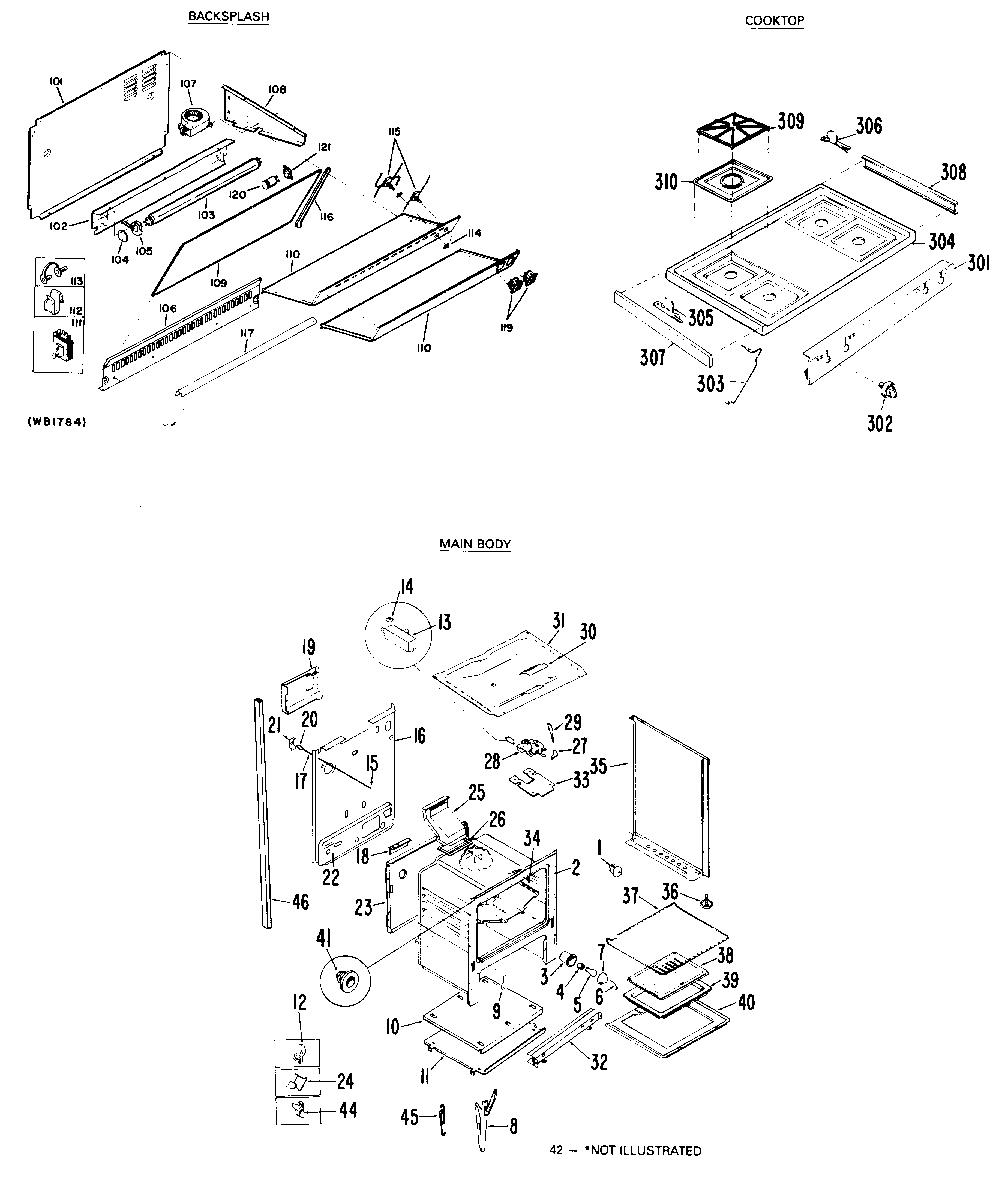

RGH946GEJ5 BACKSPLASH

RGH946GEJ5 BACKSPLASH

Written by

in

RGH946GEJ5 BACKSPLASH

Products

Position	Product
1	GEN WB01X0931
3	GEN WB02X10083
4	GEN WB08X0262
5	GEN BUY-LOCAL
6	GEN WB02X4762
7	GEN WB36X0730
8	GEN WB1X1013
8	GEN WB10X0236
9	COVER-HINGE CUT OUT
10	GEN WB63X0273
11	GEN WB63X0274
11	GEN WB02X4766
12	GEN WB01X0941
13	GEN WB24X0380
14	GEN WB1X942
14	GEN WB02X10085
15	GEN WB2X10269
15	FASTENER-POWER CORD
15	GEN WB02X4767
15	GEN WB18X0271
15	GEN WB2X10268
16	GEN WB63X276
17	GEN WB02X4768
18	BRACKET-LIGHT SHIELD
19	GEN WB2X4597
20	GEN WB24X0381
21	GEN WB02X4958
22	GEN WB63X303
23	GEN WB63X0275
24	GEN WB01X0923
25	GEN WB38X0092
26	GEN WB38X0093
26	GEN WB2X4774
27	GEN WB03X0733
27	GEN WB01X0734
28	GEN WB14X0067
28	GEN WB01X0924
29	GEN WB03X0734
30	COVER-PLATE
31	SCREW-COVER MOUNTING
31	GEN WB56X1780
31	SCREW
32	GEN WB63X0345
33	GEN WB63X0279
34	GEN WB63X0346
35	PANEL-SIDE-LEFT-ALMOND
35	PANEL-SIDE-LEFT-WHITE
35	PANEL-SIDE-RIGHT-ALMOND
35	PANEL-SIDE-RIGHT-WHITE
35	SHIELD-HEAT-BODY-SIDE
36	LEVELING LEG
37	GEN WB48X0190
39	WB48X10056 GE Broil Pan Set, Large Porcelain
40	GEN WB02X4777
40	GEN WB02X4776
40	BOTTOM-OVEN-REMOVABLE
41	GEN WB3X688
42	GEN WB02X4959
42	GEN WB02X4791
42	GEN WB02X4960
42	FITTING-LOXIT
44	GEN WB39X0064
45	GEN WB02X0229
46	GEN WB02X10086
46	GEN WB02X10087
101	GEN WB61X0336
102	GEN WB61X0337
103	FLUORESCENT LAMP
104	GEN WB02X10079
105	RECEPTACLE-FLUOR LIGHT
106	GEN WB07X1482
107	BLOWER MOTOR ASSEMBLY
108	GEN WB61X0339
108	GEN WB61X0338
109	GEN WB36X0687
110	GEN WB61X0340
111	GEN WB20X0087
112	FASTENER- CABLE CLAMP
113	GEN WB02X10080
114	GEN WB07X1479
115	GEN WB24X0398
116	TRIM-BACKSPLASH-SIDE-RH
116	TRIM-BACKSPLASH-SIDE-LH
117	GEN WB07X1552
118	GEN WB01X0808
301	CONTROL PANEL (MANIFOLD)
302	KNOB-TOP BURNER VALVE
303	GEN WB2X4736
304	GEN WB62X1641
304	GEN WB62X1642
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB07X1526
308	GEN WB07X1527
309	GRATE-TOP BURNER
310	GEN WB32X0090
916	SCREW-CATCH ASSEMBLY
32767	GEN 39-4589
32767	GEN 49-4664
32767	GEN 31-0643
