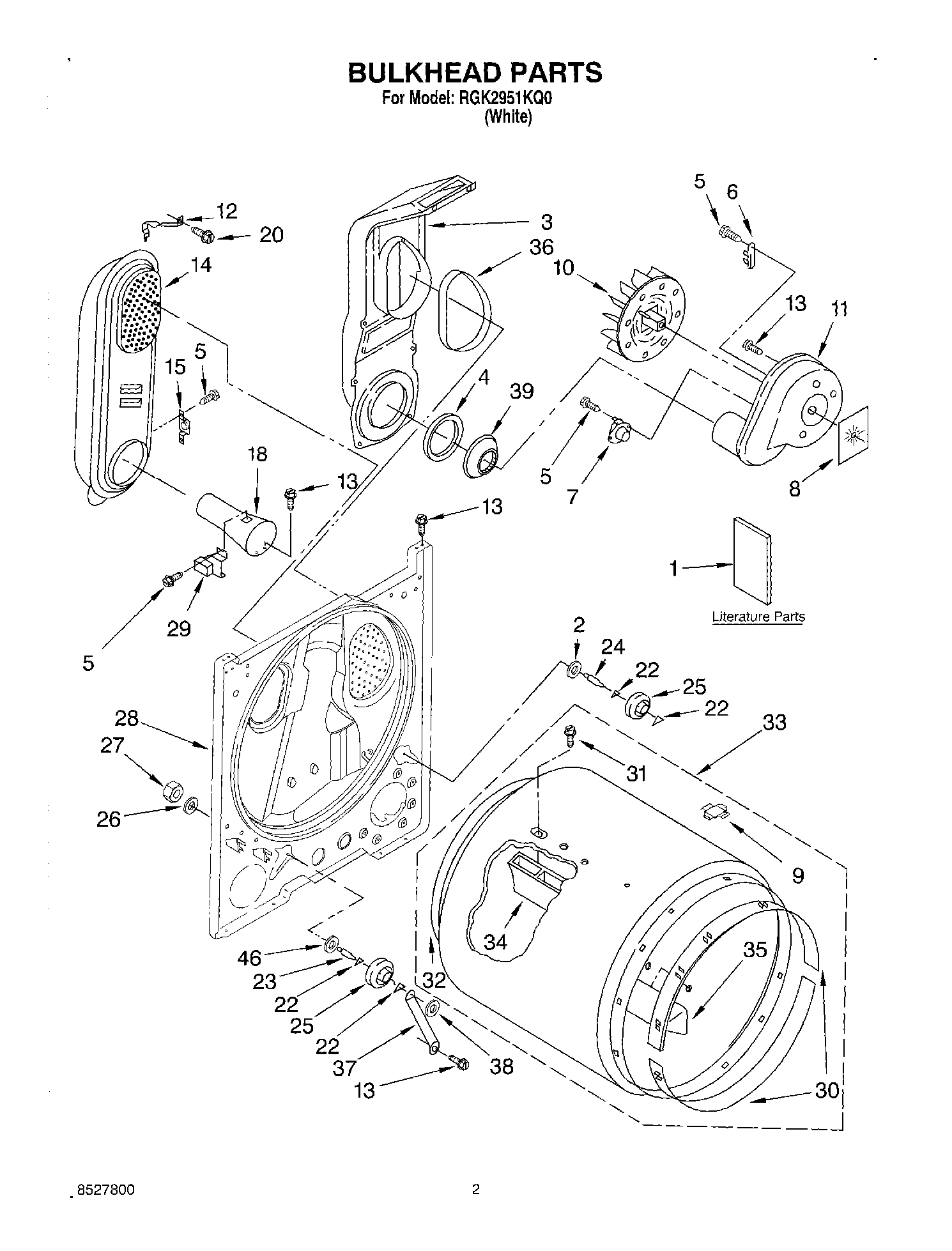

RGK2951KQ0 02 – BULKHEAD, LIT/OPTIONAL

RGK2951KQ0 02 – BULKHEAD, LIT/OPTIONAL

Written by

in

RGK2951KQ0 02 – BULKHEAD, LIT/OPTIONAL

Products

PositionProduct
1Label, Wiring Diagram
1Literature Parts (Instructions, Installation)
1Literature Parts (Repair Parts List)
2WP3388703 Whirlpool Washer
3W11117429 Whirlpool Chute Assembly
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387134 Whirlpool Dryer Cycling Thermostat
8Seal, Blower
98066086 Whirlpool Plug
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
18WP8066049 Whirlpool Funnel Assembly
20WP489463 Whirlpool Refrigerator Screw
22WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
23SHAFT SUPPORT ROLLER DRYER
24SHAFT SUPPORT ROLLER DRYER
25349241T Whirlpool Dryer Drum Support Roller Kit
26WP348197 Whirlpool Washer Assembly
27WP3359452 Whirlpool Nut
28W11178668 Whirlpool Bulkhead
29WP338906 Whirlpool Dryer Gas Sensor
30279441 Whirlpool Front Bearing Ring
31WPW10109200 Whirlpool Screw
32W10612022 Whirlpool Felt Seal
33W10899578 Whirlpool Dryer Drum Assembly
34BAFFLE-DRM
35WP3403636 Whirlpool Drum Baffle
36SEAL
37W11684613 Whirlpool Bracket
38WP90296 Whirlpool Clip
39W11233063 Whirlpool Shield Assembly
39350930 Whirlpool White Spray Paint
39799344 Whirlpool Refrigerator Paint
3972017 Whirlpool Appliance Touch-Up Paint White
39350938 Whirlpool Spray Gun
