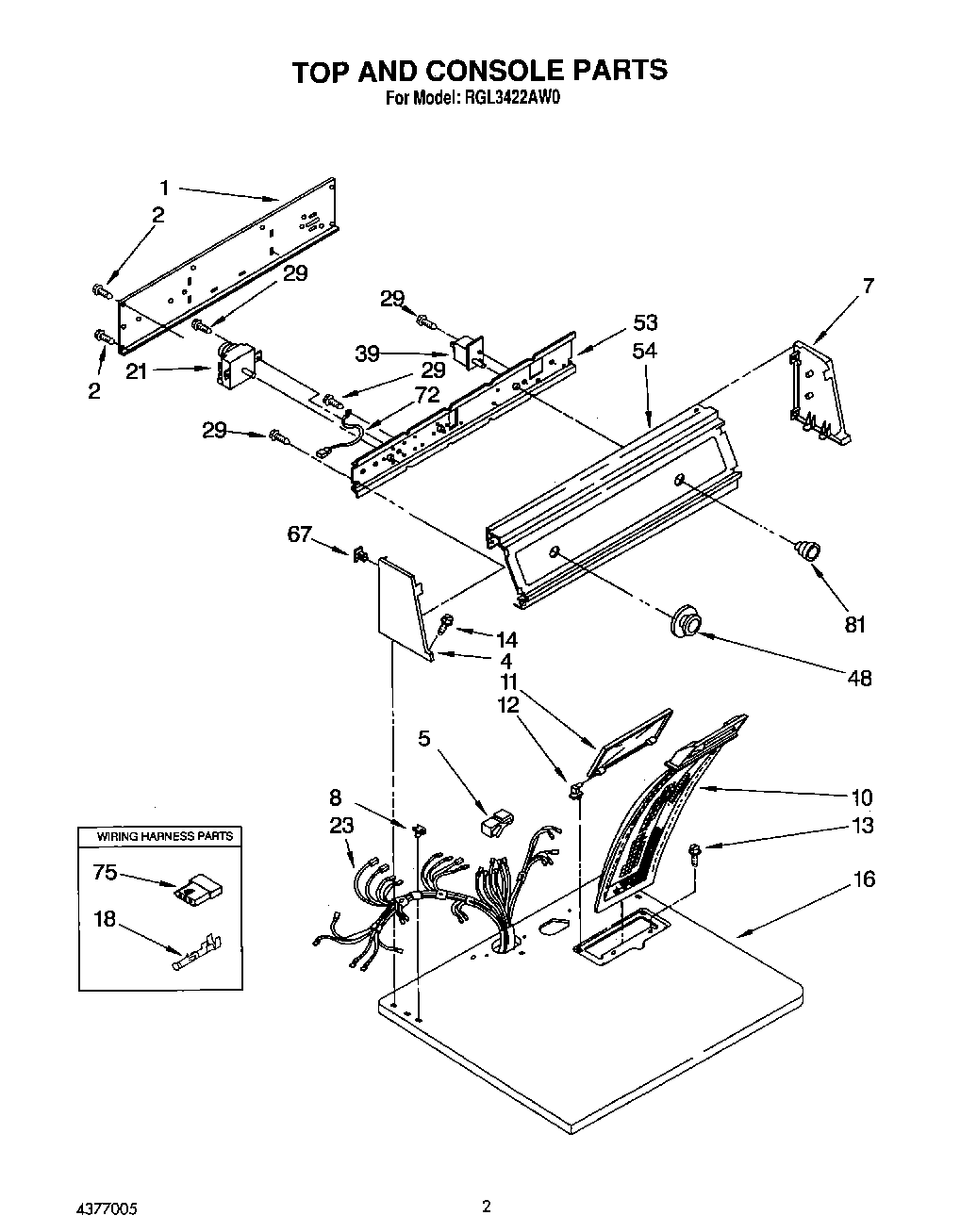

RGL3422AW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

RGL3422AW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGL3422AW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Use & Care Guide
Instructions, Installation
List, Service Parts
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
4Cap, End (L.H.) (Black)
5Clip, Retainer
7Cap, End (R.H.) (Black)
8WP357213 Whirlpool Hinge Stopper
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
16Top (Almond)
18WP94614 Whirlpool Terminal
21WP3396215 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push-To-Start
