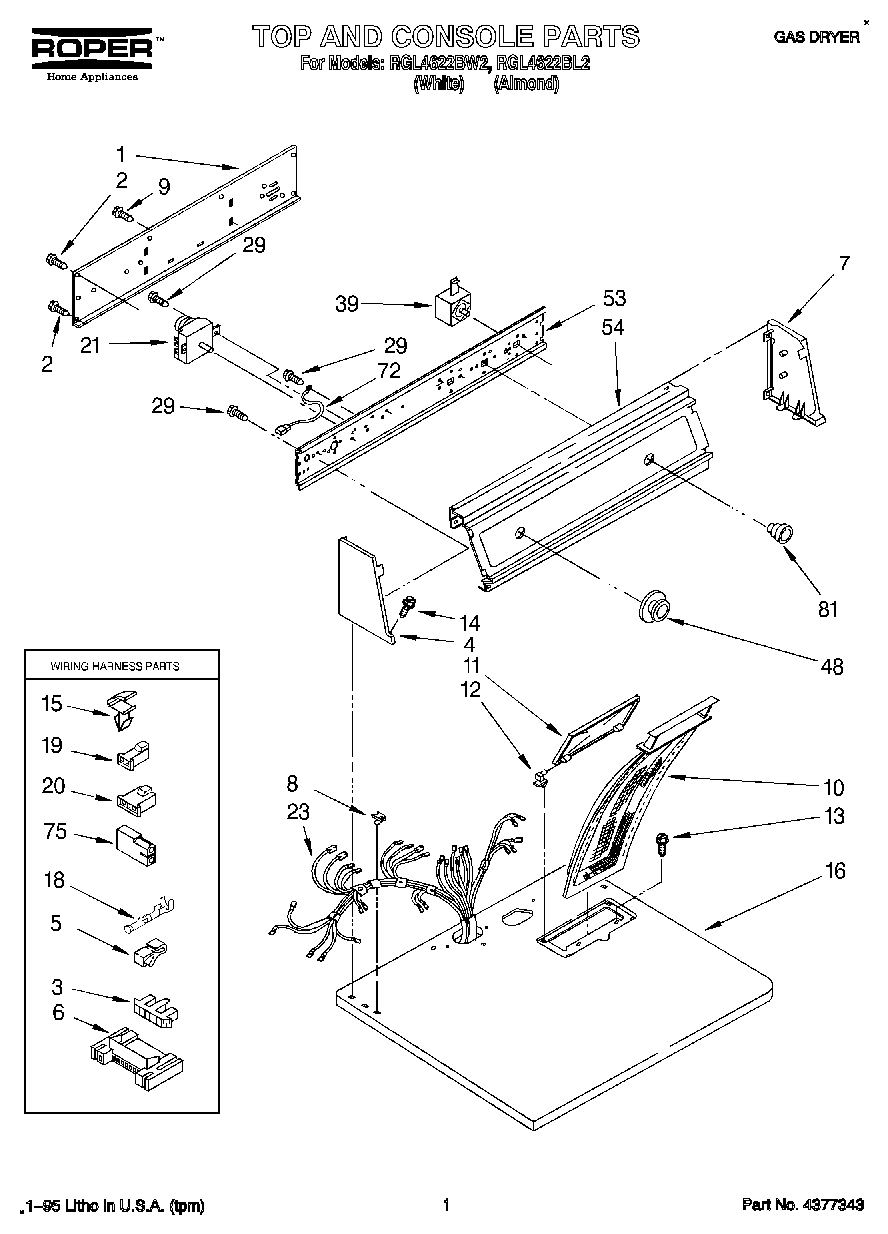

RGL4622BL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

RGL4622BL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGL4622BL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
350956 Whirlpool Spray Assembly
Instructions, Installation
350938 Whirlpool Spray Gun
Label, Wiring Diagram
WP72107 Whirlpool Touchup
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3Connector, Timer
4Cap, End (L.H.) (Black)
5Clip, Retainer
63395683 Whirlpool Connector
7Cap, End (R.H.) (Black)
8WP357213 Whirlpool Hinge Stopper
9WP693995 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top (Almond)
16Top (White)
18WP94614 Whirlpool Terminal
19Connector, 2-Position (Gas Valve)
20Connector, 3-Position (Gas Valve)
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Knob, Push-To-Start
