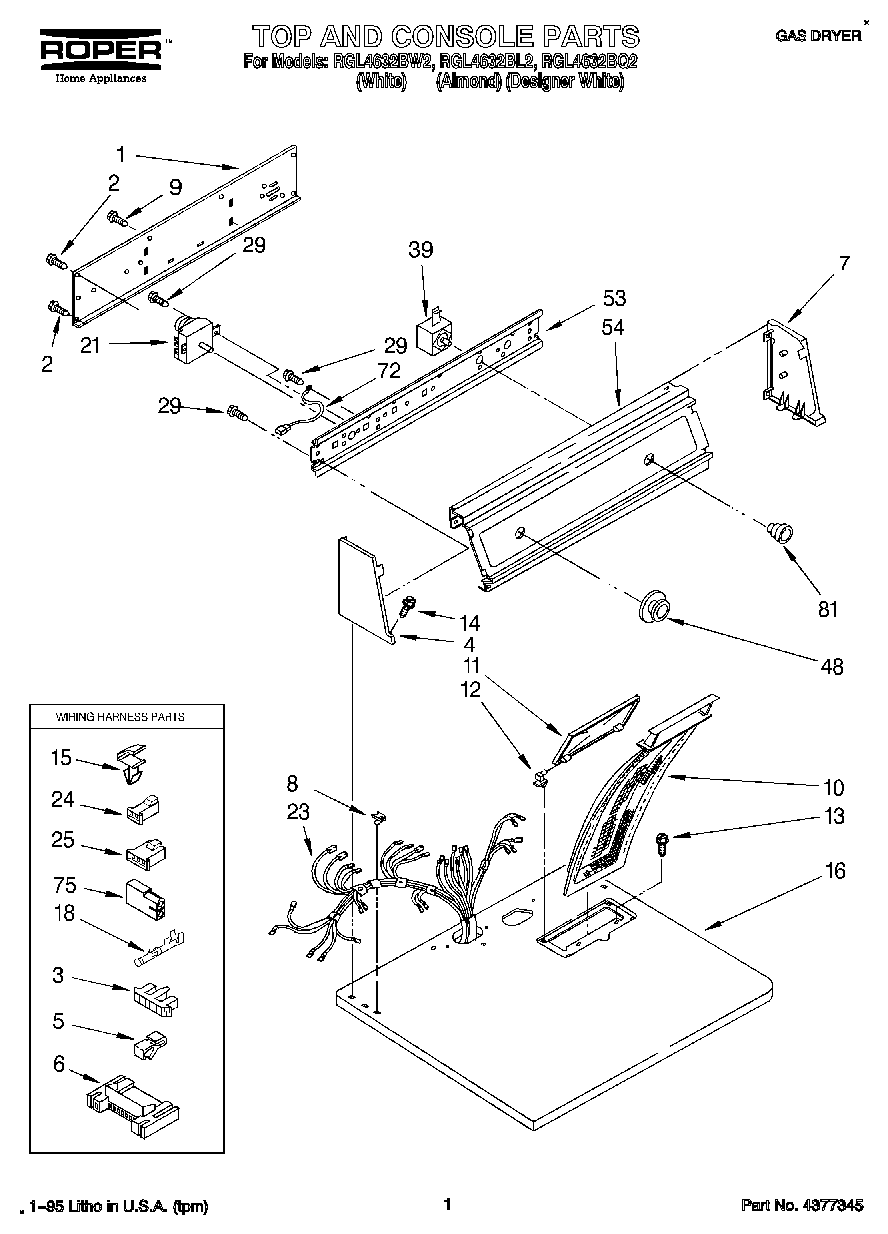

RGL4632BL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Guide, Use & Care
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	Connector, Timer
4	Cap, End (L.H.)
4	FOR MODEL REL4632BQ3
5	Clip, Retainer
6	3395683 Whirlpool Connector
7	Cap, End (R.H.)
7	FOR MODEL REL4632BQ3
8	WP357213 Whirlpool Hinge Stopper
9	WP693995 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top (White)
16	Top (Almond)
18	WP94614 Whirlpool Terminal
21	Timer, 60 Hz.
23	Harness, Wiring
24	Connector, 2-Position (Gas Valve)
25	Connector, 3-Position (Gas Valve)
29	WPW10139210 Whirlpool Screw
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
48	FOR MODEL REL4632BQ3
53	Bracket, Control
54	FOR MODEL REL4632BQ3
54	Panel, Control
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	Knob, Push-To-Start
81	FOR MODEL REL4632BQ3
