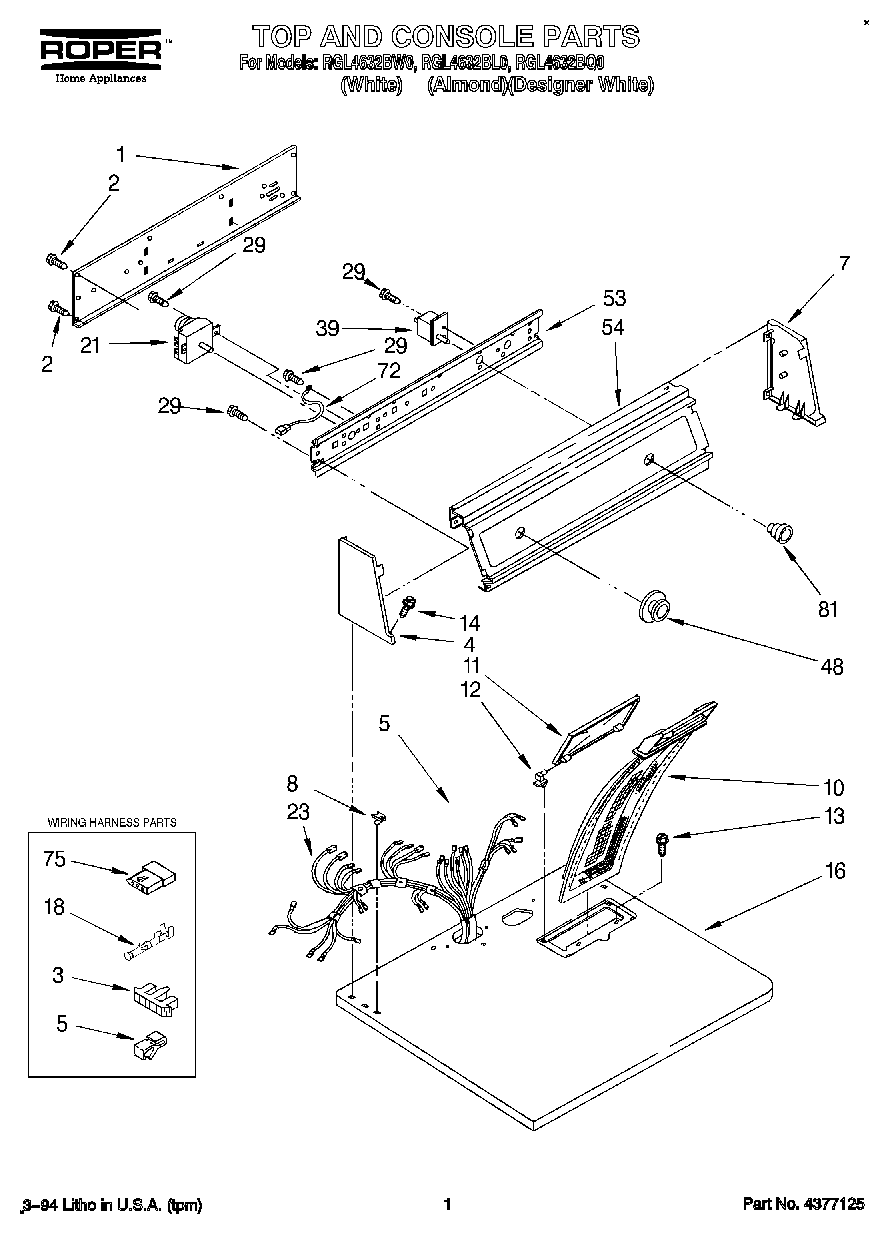

RGL4632BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

RGL4632BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGL4632BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Instructions, Installation
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Label, Wiring Diagram
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3Connector, Timer
4FOR MODEL REL4632BQ3
4Cap, End (L.H.)
5Clip, Retainer
7Cap, End (R.H.)
7FOR MODEL REL4632BQ3
8WP357213 Whirlpool Hinge Stopper
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (Almond)
16Top (White)
18WP94614 Whirlpool Terminal
21Timer, 60 Hz.
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48FOR MODEL REL4632BQ3
48Timer Knob Assembly
53Bracket, Control
54FOR MODEL REL4632BQ3
54Panel, Control
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push-To-Start
81FOR MODEL REL4632BQ3
