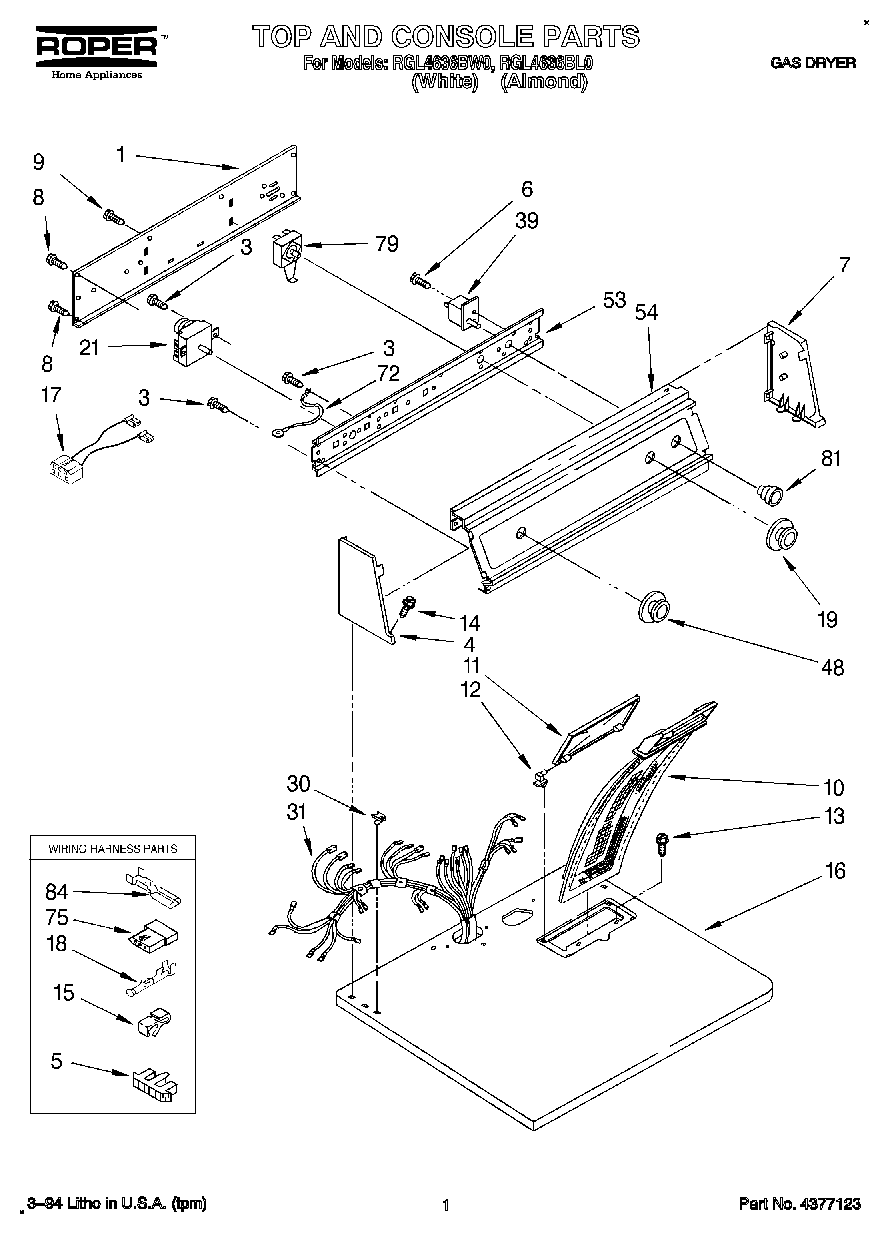

RGL4636BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	Guide, Use & Care
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Label, Wiring Diagram
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	Connector, Timer
6	WP488729 Whirlpool Refrigerator Door Screw
7	Cap, End (R.H.)
8	WP489069 Whirlpool Compactor Screw
9	WP693995 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Clip, Retainer
16	Top (White)
16	Top (Almond)
17	8283286 Whirlpool Wire Harness
18	WP94614 Whirlpool Terminal
19	Knob, Temperature
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	353424 Whirlpool Connector
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature
81	Knob, Push-To-Start
84	WP596797 Whirlpool Terminal
