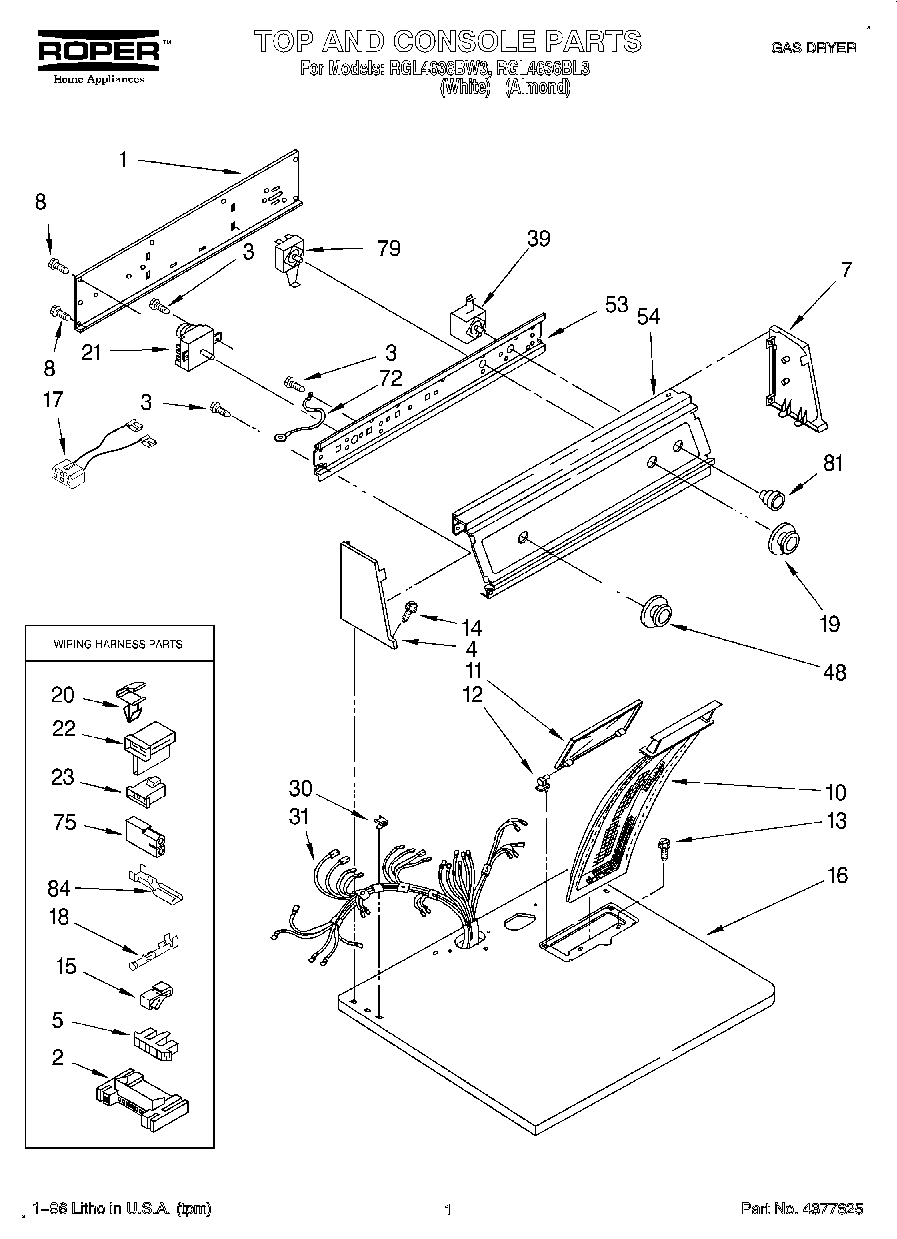

RGL4636BW3 01 – TOP AND CONSOLE, LIT/OPTIONAL

RGL4636BW3 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGL4636BW3 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Instructions, Installation
Guide, Use & Care
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
23395683 Whirlpool Connector
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
5Connector, Timer
7Cap, End (R.H.)
8WP693995 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Clip, Retainer
16Top (Almond)
16Top (White)
178283286 Whirlpool Wire Harness
18WP94614 Whirlpool Terminal
19Knob, Temperature
20WP3394427 Whirlpool Clip
21WP3976568 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
793399638 Whirlpool Switch
81Knob, Push-To-Start
84WP596797 Whirlpool Terminal
