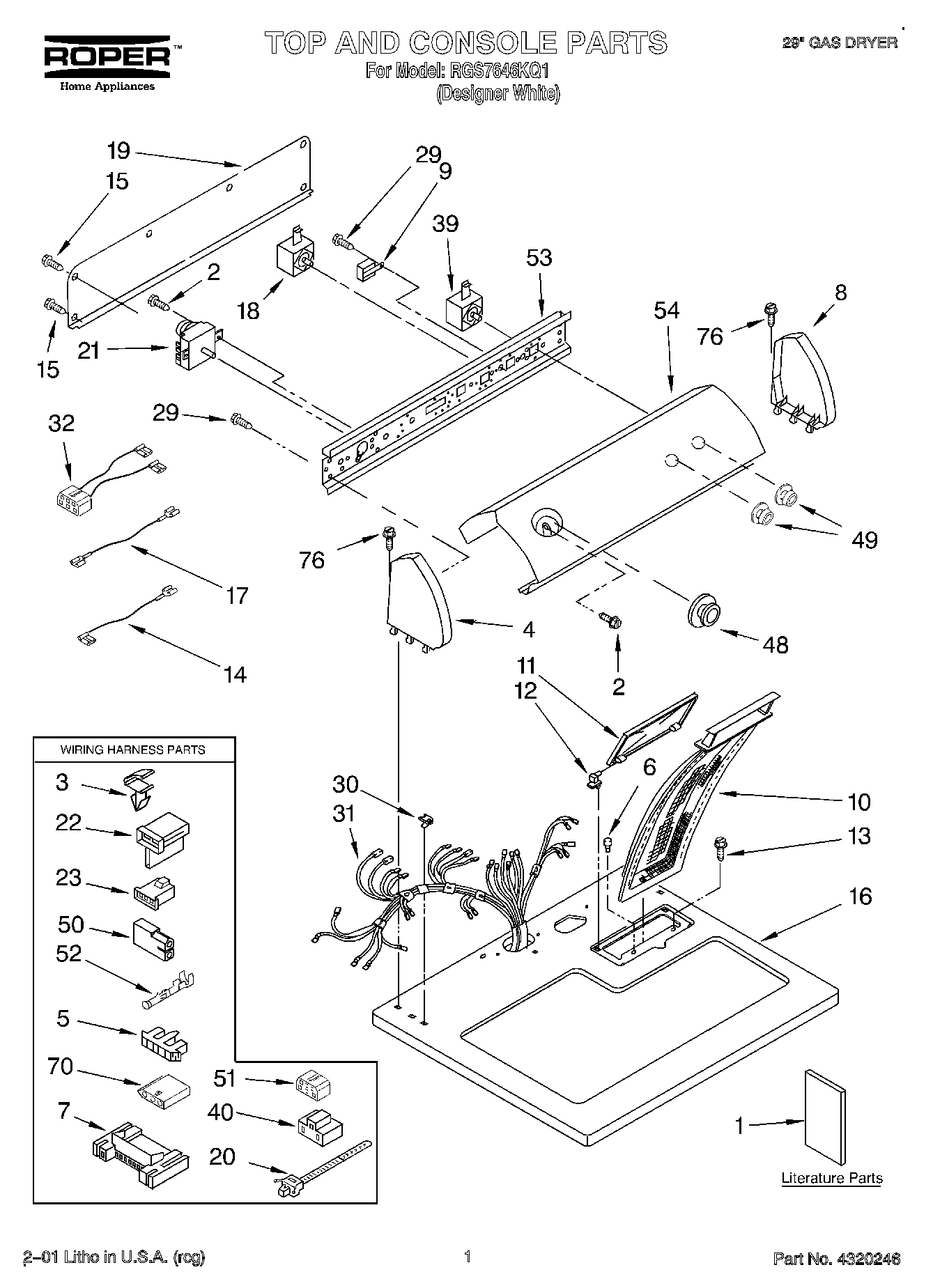

RGS7646KQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Dryer
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care)
1	WPL LIT3406692
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	Bumper, Lint Lid
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Tan)
15	WP693995 Whirlpool Screw
16	Top
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	W10103406 Whirlpool Rear Panel
20	Tie, Cable
21	WP8299765 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
39	Relay, Push To Start
40	3401144 Whirlpool Connector
48	Timer Knob Assembly
49	Knob, Control (2)
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	Block, Disconnect
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
70	3936144 Whirlpool Connector
76	72017 Whirlpool Appliance Touch-Up Paint White
76	350938 Whirlpool Spray Gun
76	799344 Whirlpool Refrigerator Paint
76	350930 Whirlpool White Spray Paint
76	WP388326 Whirlpool Screw
76	3404351 Whirlpool Dryer Rack
