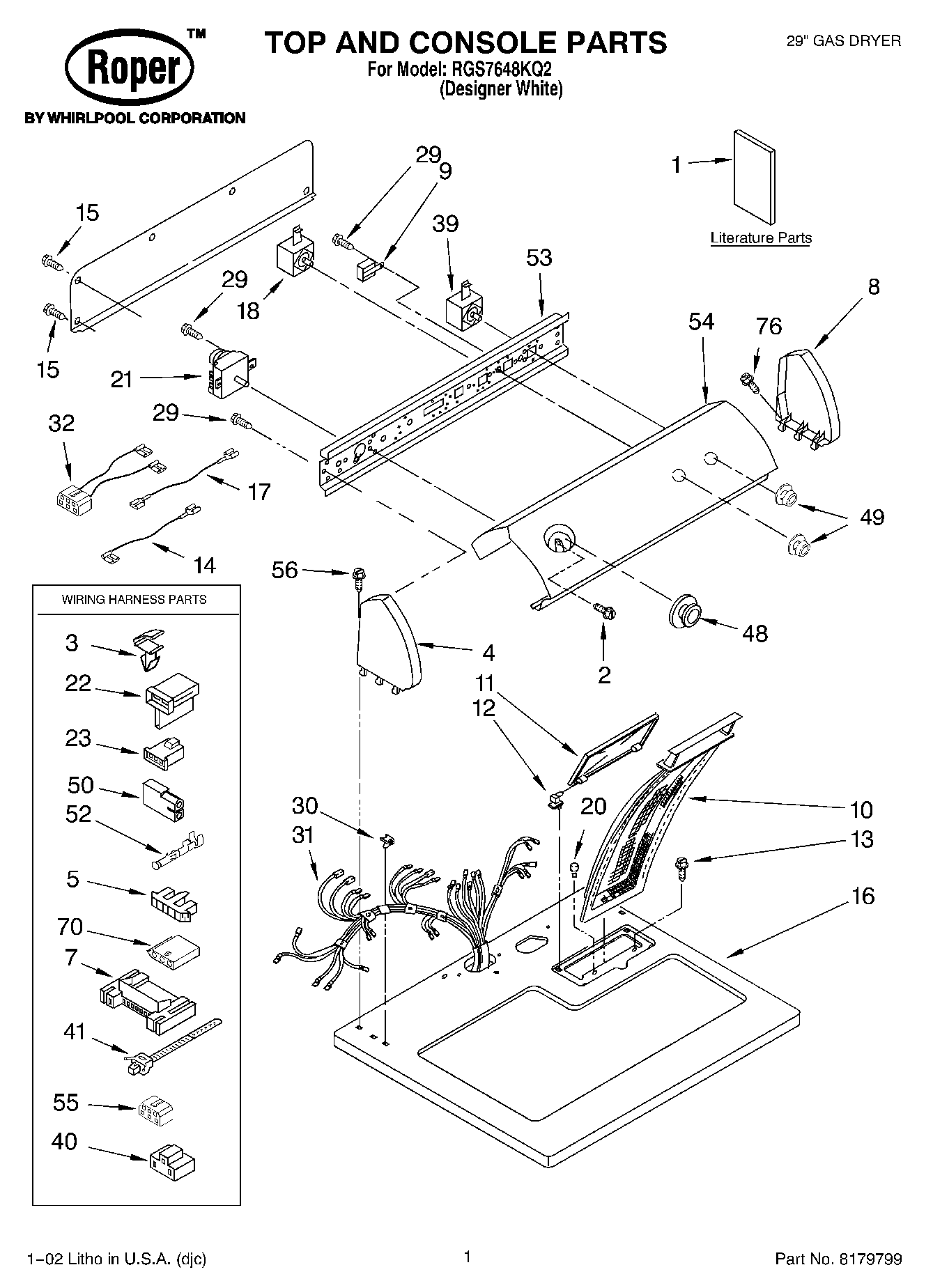

RGS7648KQ2 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
1WPL 677818
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Tan)
15WP693995 Whirlpool Screw
16Top
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
19W10103406 Whirlpool Rear Panel
20Bumper, Lint Lid
21WP8299765 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
328539893 Whirlpool Wire Harness
39Relay, Push To Start
403401144 Whirlpool Connector
41Tie, Cable
48Timer Knob Assembly
49Knob, Control (2)
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
553936144 Whirlpool Connector
5672017 Whirlpool Appliance Touch-Up Paint White
564392065 Whirlpool Dryer Maintenance Kit
56799344 Whirlpool Refrigerator Paint
56WP388326 Whirlpool Screw
56350938 Whirlpool Spray Gun
56KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
56350930 Whirlpool White Spray Paint
563406839 Whirlpool Drying Rack
