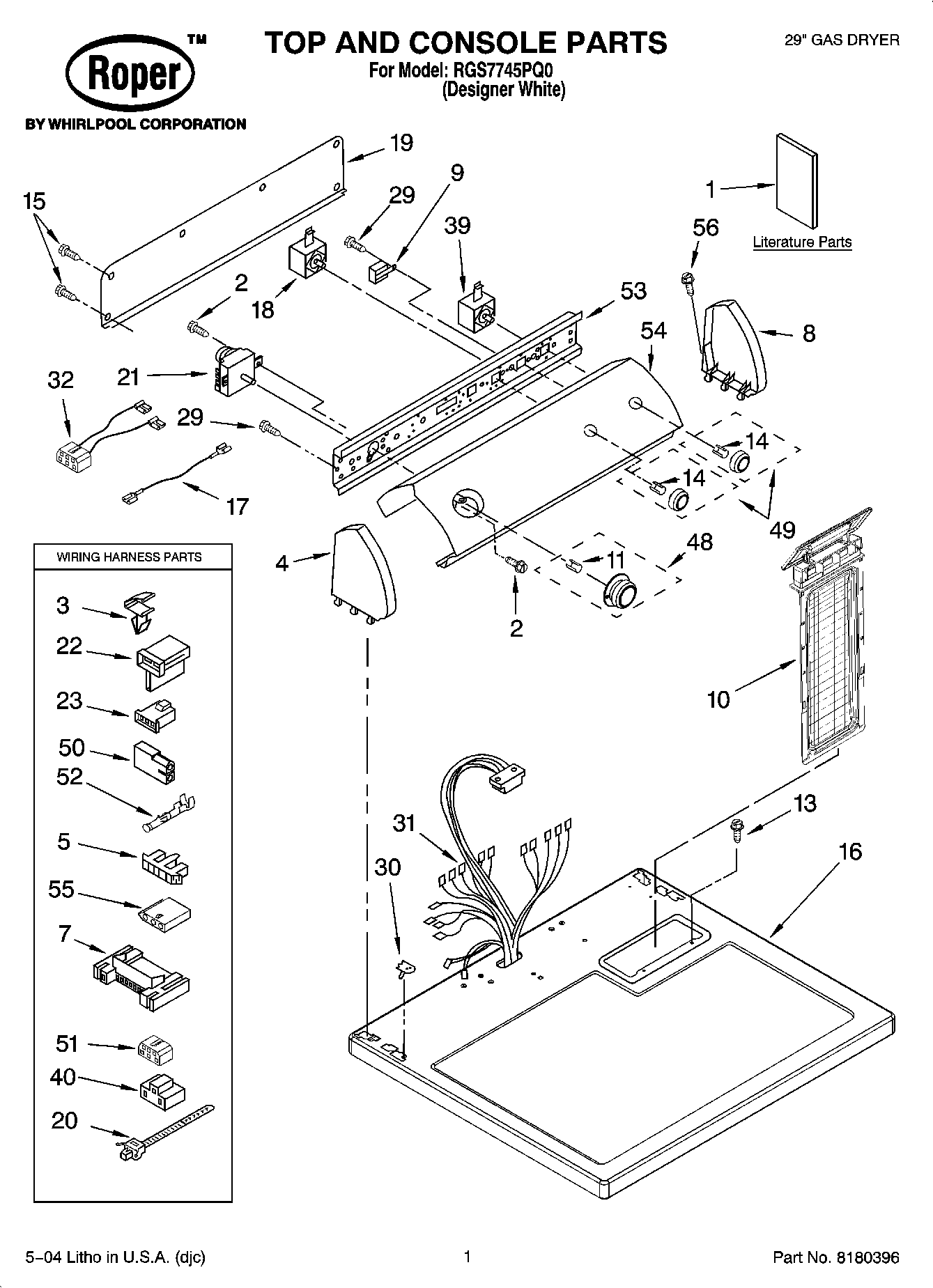

RGS7745PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Sheet, Cycle Feature
1	Guide, Use & Care
1	Wiring Diagram
1	WPL 677818
1	Installation Instructions
1	DO-IT-YOURSELF REPAIR MANUALS
1	Following May Be Purchased
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP688805 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	WP8536939 Whirlpool Spring Clip
15	WP693995 Whirlpool Screw
16	Top
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	W10103406 Whirlpool Rear Panel
20	Tie, Cable
21	WP8299765 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8299878 Whirlpool Wire Harness
32	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
48	WP8557455 Whirlpool Knob Timer
49	Knob, Control
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	Block, Disconnect
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
55	3936144 Whirlpool Connector
56	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
56	350938 Whirlpool Spray Gun
56	72017 Whirlpool Appliance Touch-Up Paint White
56	350930 Whirlpool White Spray Paint
56	WP388326 Whirlpool Screw
56	4392065 Whirlpool Dryer Maintenance Kit
56	799344 Whirlpool Refrigerator Paint
56	W11224254 Whirlpool Test Kit
56	3404351 Whirlpool Dryer Rack
56	ACCESSO
