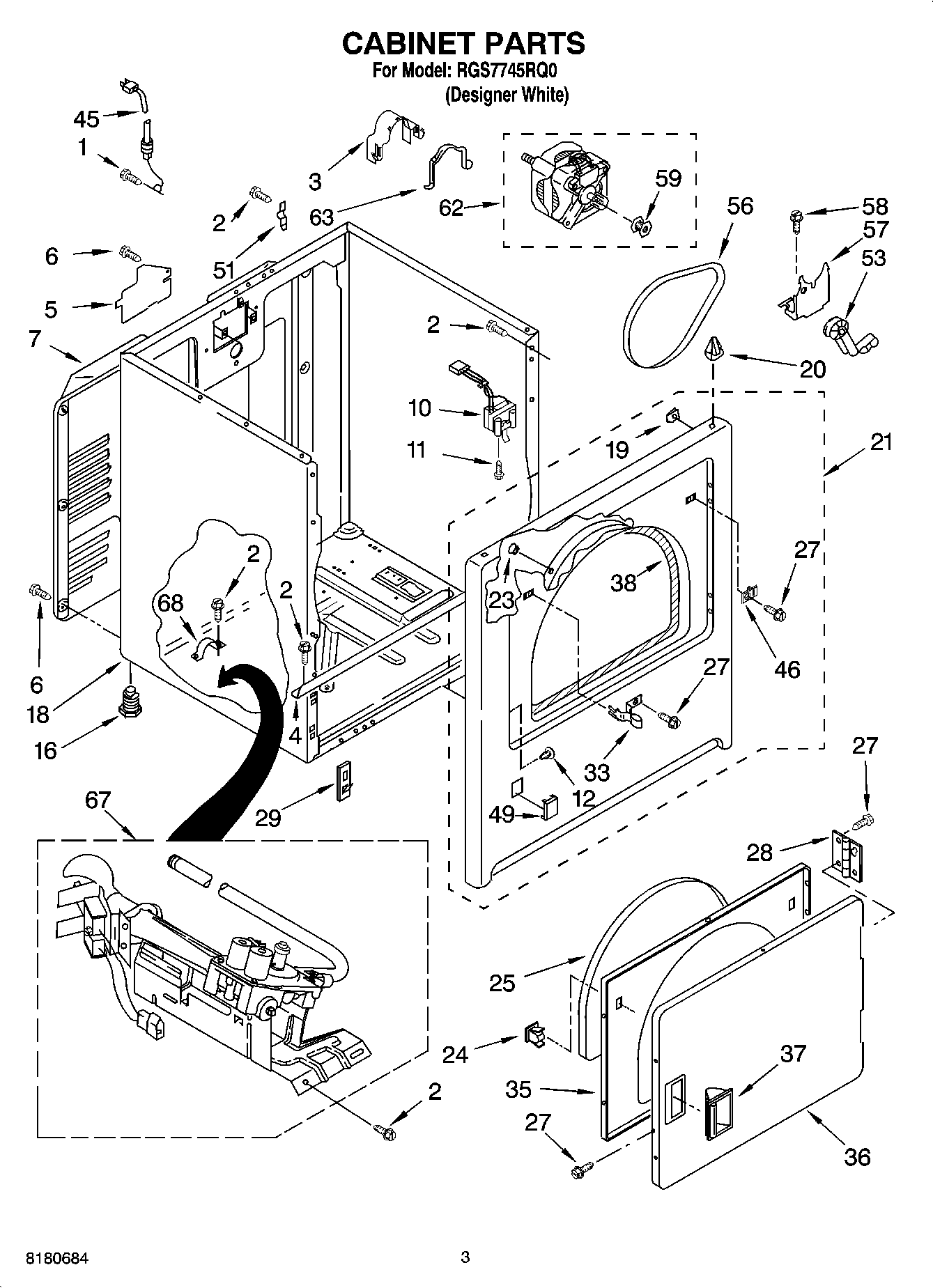

RGS7745RQ0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP3404162 Whirlpool Clamp
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	SEAL-DOOR DRYER
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	W11429589 Whirlpool Strike
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
38	W11035878 Whirlpool Bearing and Seal
45	W11222083 Whirlpool Power Cord
46	WP3403630 Whirlpool Plug
49	Plug, Front Panel (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W10823508 Whirlpool Gas Burner
68	341029 Whirlpool Clamp
