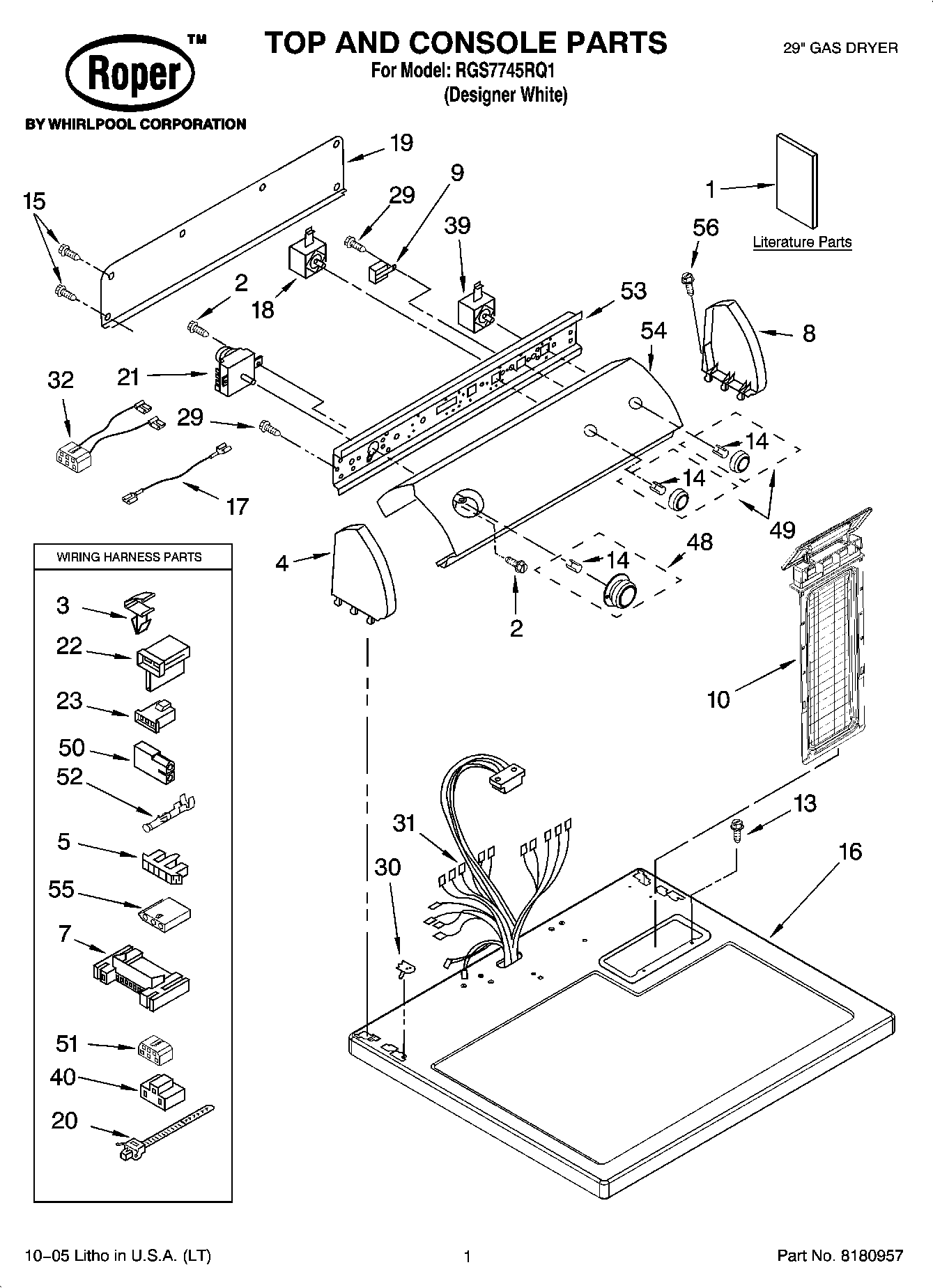

RGS7745RQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	DO-IT-YOURSELF REPAIR MANUALS
1	Guide, Use & Care
1	Following May Be Purchased
1	WPL 677818
1	Installation Instructions
1	Sheet, Cycle Feature
1	Wiring Diagram
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
14	WP8536939 Whirlpool Spring Clip
15	WP693995 Whirlpool Screw
16	Top
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	W10103406 Whirlpool Rear Panel
20	Tie, Cable
21	WP8299765 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WP90767 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8299878 Whirlpool Wire Harness
32	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
48	3957383 Whirlpool Knob
49	WP8557460 Whirlpool Knob
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	Block, Disconnect
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
55	3936144 Whirlpool Connector
56	WP388326 Whirlpool Screw
