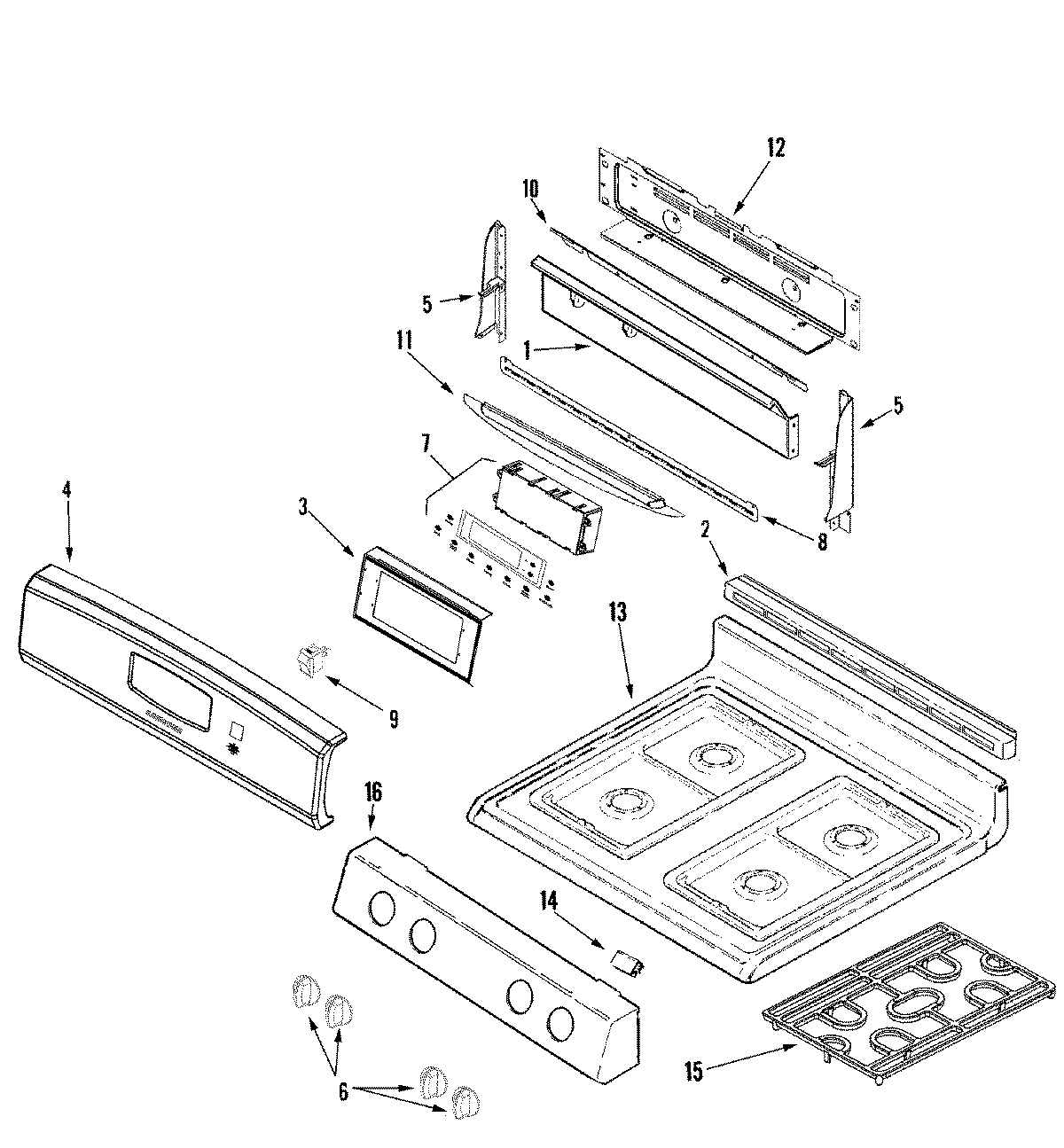

RGSF3330DW 02 – CONTROL PANEL/TOP ASSEMBLY

RGSF3330DW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

RGSF3330DW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
NISCREW
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009795
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74010249
5MAY 74010212
5WP98008544 Whirlpool Screw Assembly
5MAY 74010211
6MAY 74010276
7WP74003976 Whirlpool Screw
7MAY 74010260
8MAY 74009780
974008717 Whirlpool White Rocker Switch
10MAY 74009708
11MAY 74009802
11MAY 74009799
12MAY 74009943
12MAY 71001394
12WP90767 Whirlpool Screw
12MAY 74006536
13MAY 74003512
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15W10919249 Whirlpool Burner Grate Foot
15MAY 74010272
16MAY 74010274
