RGSF3330DW 03 – DOOR/DRAWER

RGSF3330DW 03 – DOOR/DRAWER

Written by

in

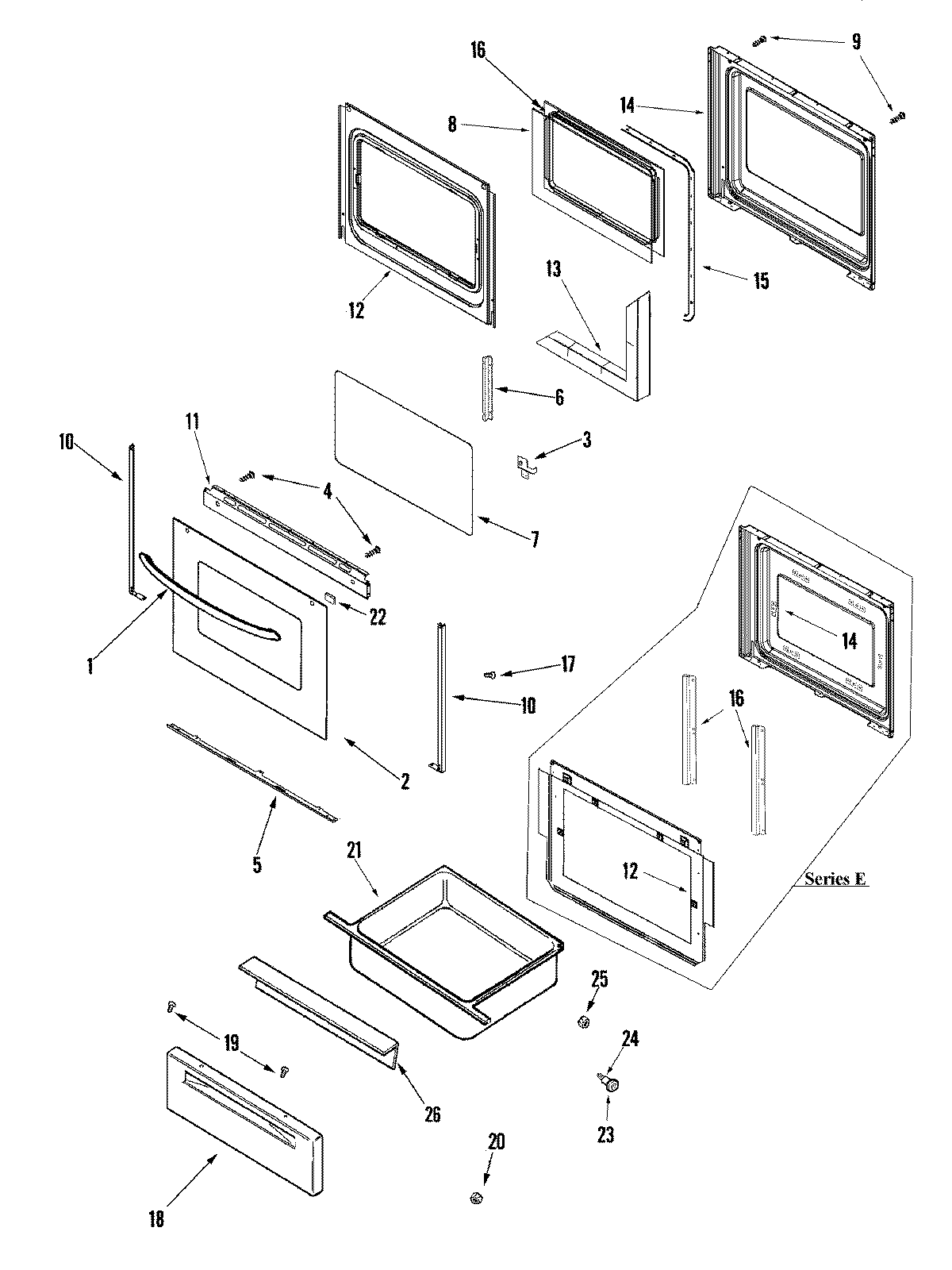

RGSF3330DW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010242
2MAY 12002486
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
10WP74004224 Whirlpool Tape
11MAY 74010238
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74003642
14LINING, DOOR
15GASKT-DOOR OVEN
16FRAME, GLASS
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
17WP98008544 Whirlpool Screw Assembly
18PANEL, DRAWER (WHT)
20WPW10131078 Whirlpool Nut Assembly
21MAY 74008337
22WP74005546 Whirlpool RU Spacer
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
26LINING, DRAWER PANEL
