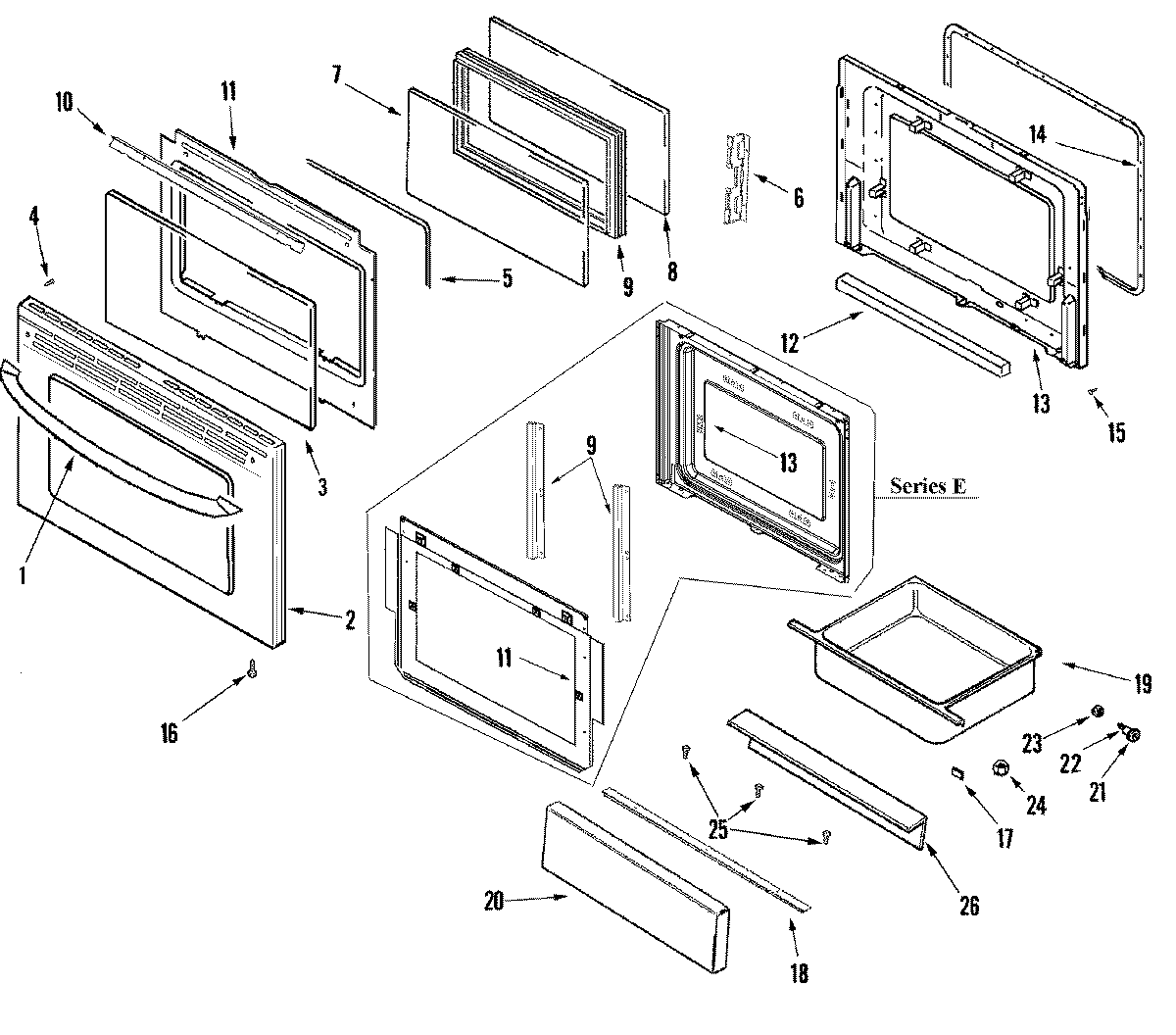

RGSF5330DT 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74010241
1MAY 74008914
2MAY 74010259
2MAY 74010233
3MAY 74010196
574008916 Whirlpool Window Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
93801F886-51 Whirlpool Mounting Bracket
9FRAME, GLASS
10MAY 74010040
11SCREW, 8 X 1/2
113601F373-51 Whirlpool Baffle
11MAY 74009502
12INSULATION, OVEN DOOR
13MAY 74003642
13NUT, SNAP (ROUND-BLK)
13LINING, DOOR
14GASKT-DOOR OVEN
16SCREW
17WP74005546 Whirlpool RU Spacer
18HANDLE, DRAWER (STL)
19MAY 74008337
20MAY 74009840
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
