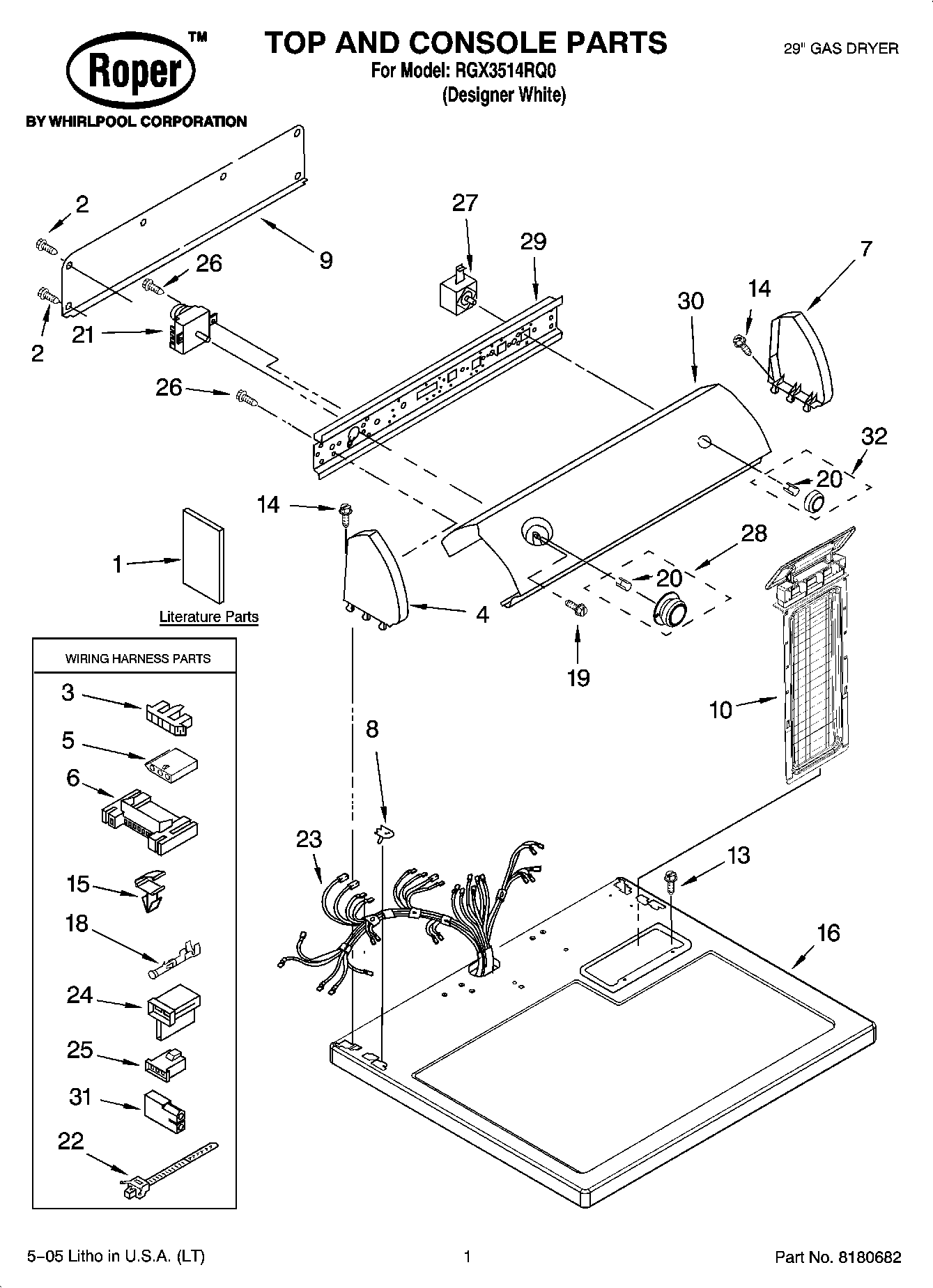

RGX3514RQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	WPL 677818
1	Sheet, Cycle Feature
1	Guide, Use & Care
1	Installation Instructions
1	Following May Be Purchased
2	WP693995 Whirlpool Screw
3	Connector, Timer
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	279960 Whirlpool Endcap Assembly
8	WP357213 Whirlpool Hinge Stopper
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top
18	WP94614 Whirlpool Terminal
19	3400859 Whirlpool Screw
20	WP8536939 Whirlpool Spring Clip
21	Timer
22	Tie, Cable
23	8299875 Whirlpool Wire Harness
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	WP90767 Whirlpool Screw
27	WP3977456 Whirlpool Start Switch
28	3957383 Whirlpool Knob
29	Bracket, Control
30	Panel, Control
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	8557462 Whirlpool Knob
