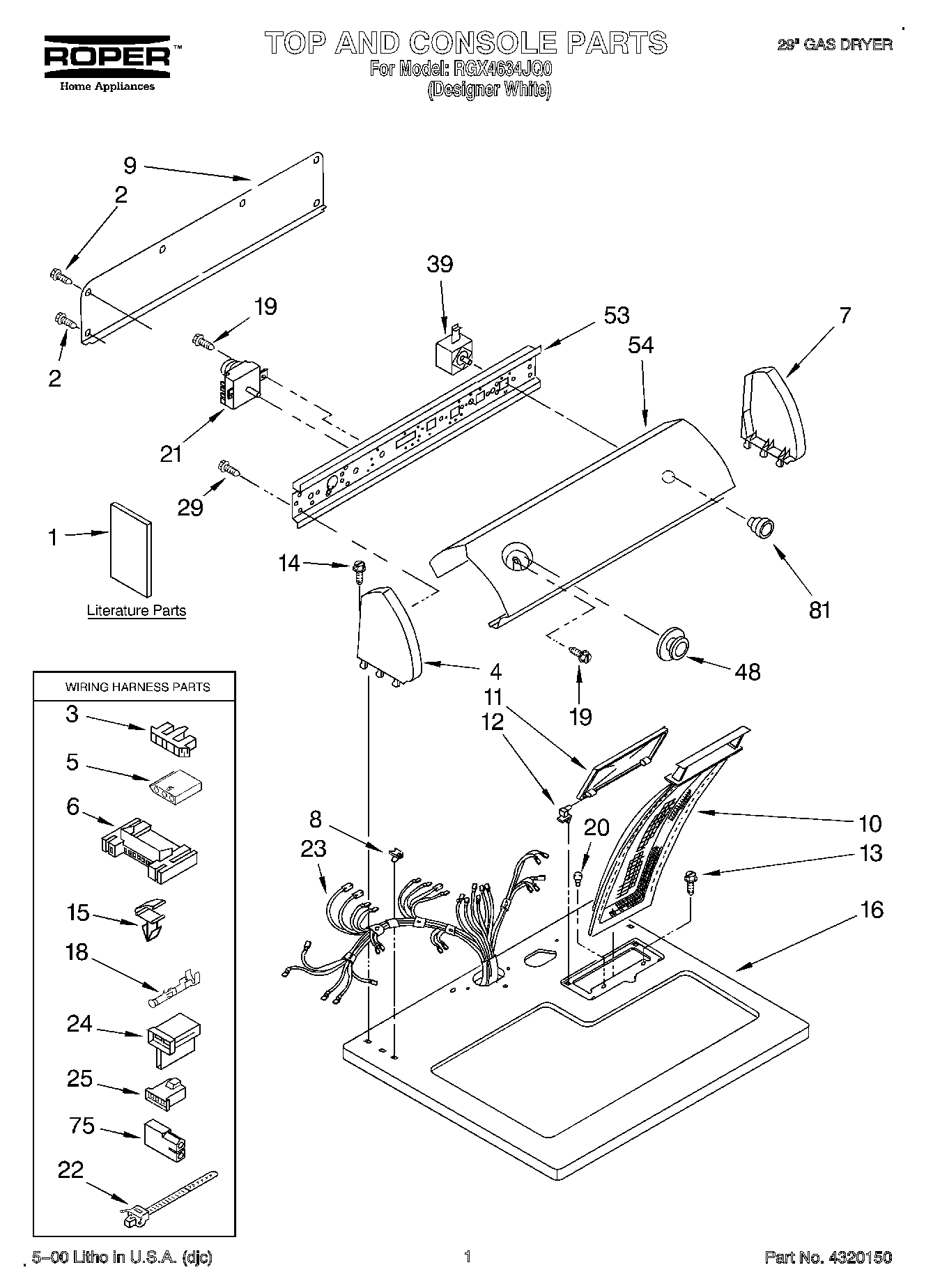

RGX4634JQ0 01 – TOP AND CONSOLE, LITERATURE

RGX4634JQ0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

RGX4634JQ0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Wiring Diagram)
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
20Bumper, Lint Lid
21WP8299764 Whirlpool Timer
22Tie, Cable
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81350938 Whirlpool Spray Gun
81350956 Whirlpool Spray Assembly
8172017 Whirlpool Appliance Touch-Up Paint White
81799344 Whirlpool Refrigerator Paint
81WP72107 Whirlpool Touchup
81Almond (Uncut)
81WP3957800 Whirlpool Knob
81350930 Whirlpool White Spray Paint
