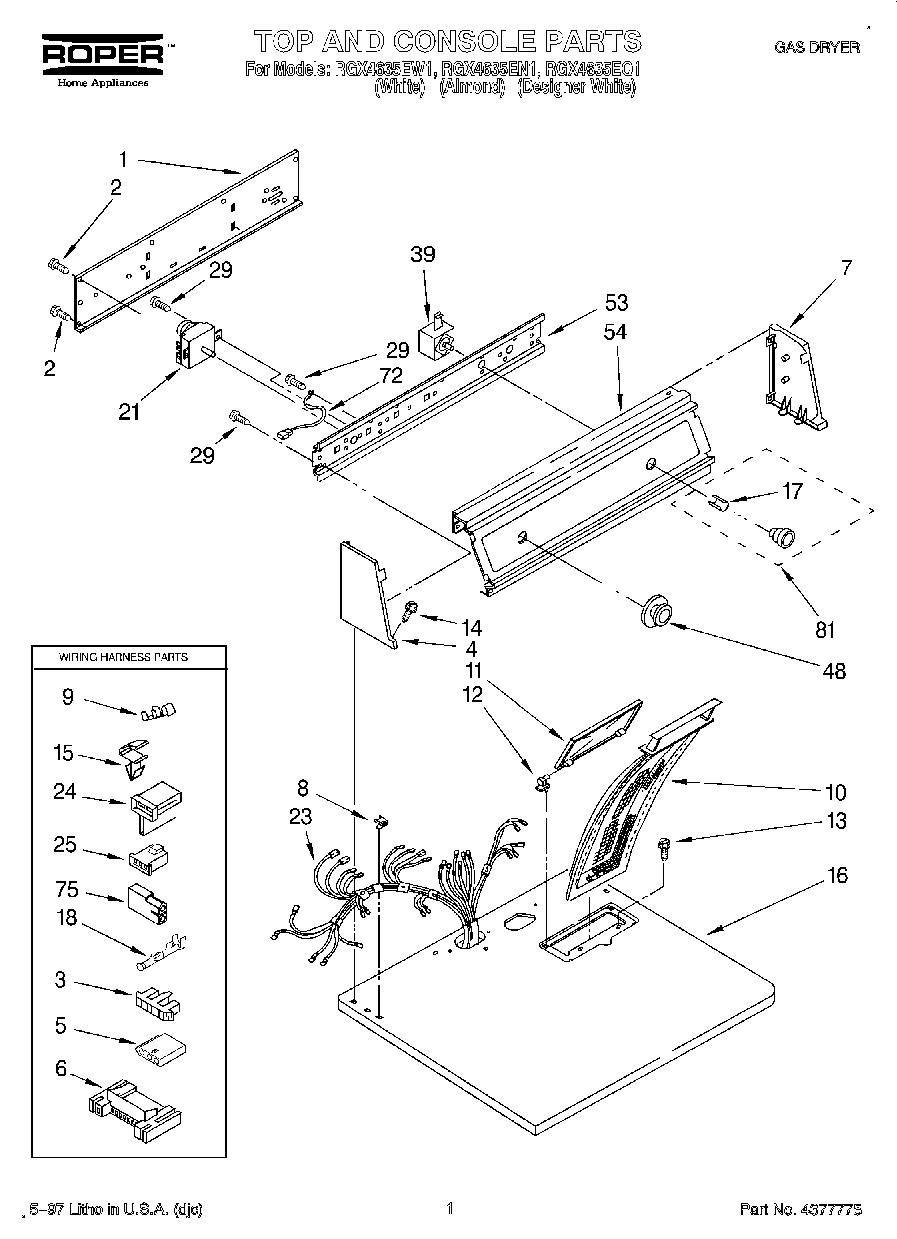

RGX4635EN1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Door Reversing
	Label, Wiring Diagram
	WPL LIT3406075
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Literature Parts (Installation Instructions)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	Connector, Timer
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black)
5	Connector (Door Switch)
6	3395683 Whirlpool Connector
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Black)
8	WP357213 Whirlpool Hinge Stopper
9	W10113937 Whirlpool Clamp
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top (White)
16	Top (Almond)
17	WP688805 Whirlpool Spring Clip
18	WP94614 Whirlpool Terminal
21	Timer, 60 Hz.
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
48	For Model REX4635EQ1
53	Bracket, Control
54	For Model REX4635EQ1
54	Panel, Control
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	WP3352875 Whirlpool Knob
81	WP3957800 Whirlpool Knob
