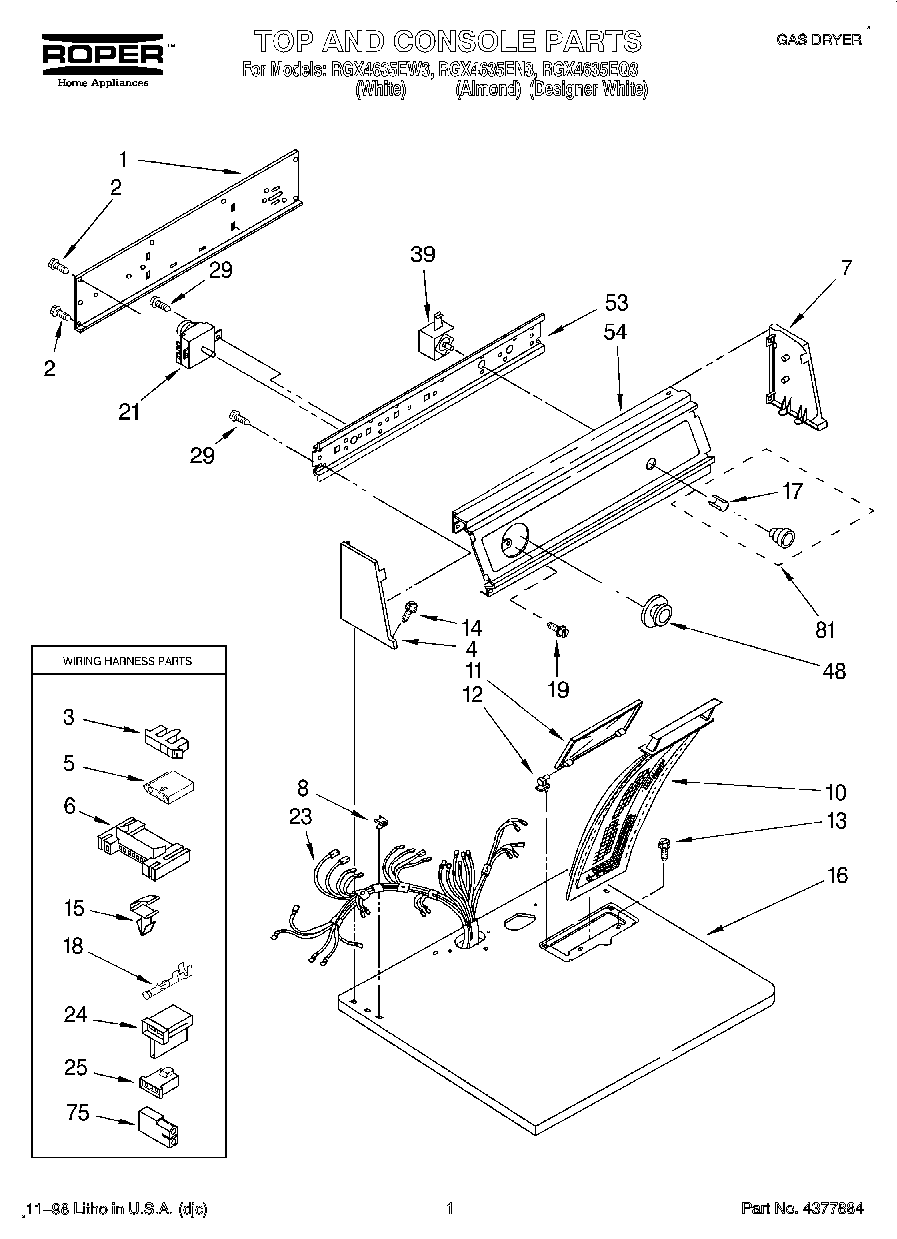

RGX4635EQ3 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
1Panel, Rear Console
2WP693995 Whirlpool Screw
3Connector, Timer
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Black)
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7Cap, End (R.H.) (Black)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top (White)
16Top (Almond)
17WP688805 Whirlpool Spring Clip
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
21Timer, 60 Hz.
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly (White)
48Timer Knob Assembly (Black)
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Black)
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Literature Parts (Installation Instructions)
81350956 Whirlpool Spray Assembly
81350938 Whirlpool Spray Gun
81WPL LIT3406075
81350930 Whirlpool White Spray Paint
8172017 Whirlpool Appliance Touch-Up Paint White
81799344 Whirlpool Refrigerator Paint
81WP3352875 Whirlpool Knob
81WP72107 Whirlpool Touchup
81Label, Wiring Diagram
81Almond (Uncut)
81WP3957800 Whirlpool Knob
81Guide, Use
