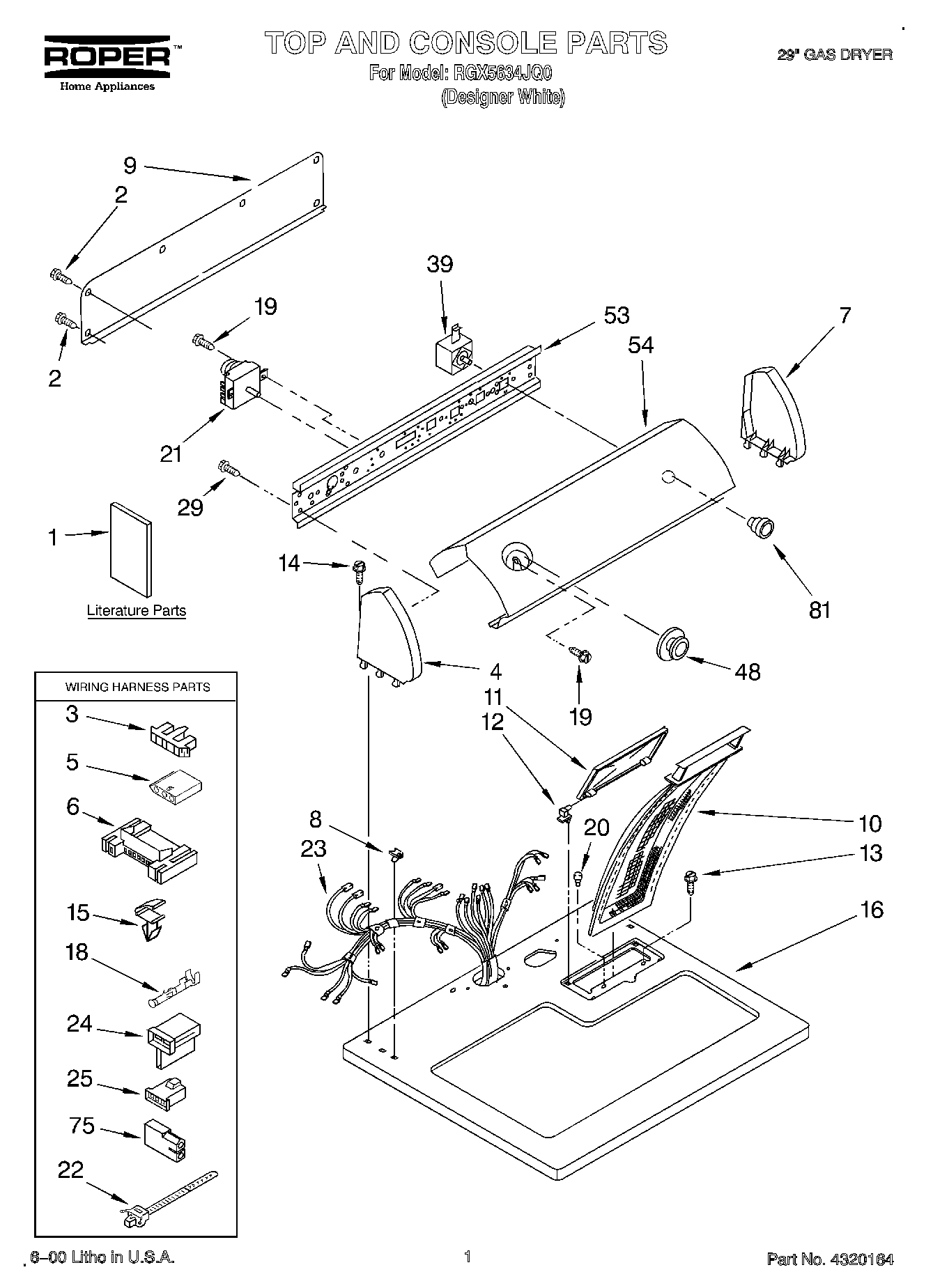

RGX5634JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Wiring Diagram)
2	WP693995 Whirlpool Screw
3	Connector, Timer
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	279960 Whirlpool Endcap Assembly
8	WP357213 Whirlpool Hinge Stopper
9	W10103406 Whirlpool Rear Panel
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top
18	WP94614 Whirlpool Terminal
19	3400859 Whirlpool Screw
20	Bumper, Lint Lid
21	WP8299764 Whirlpool Timer
22	Tie, Cable
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	350938 Whirlpool Spray Gun
81	350956 Whirlpool Spray Assembly
81	72017 Whirlpool Appliance Touch-Up Paint White
81	799344 Whirlpool Refrigerator Paint
81	WP72107 Whirlpool Touchup
81	Almond (Uncut)
81	WP3957800 Whirlpool Knob
81	350930 Whirlpool White Spray Paint
