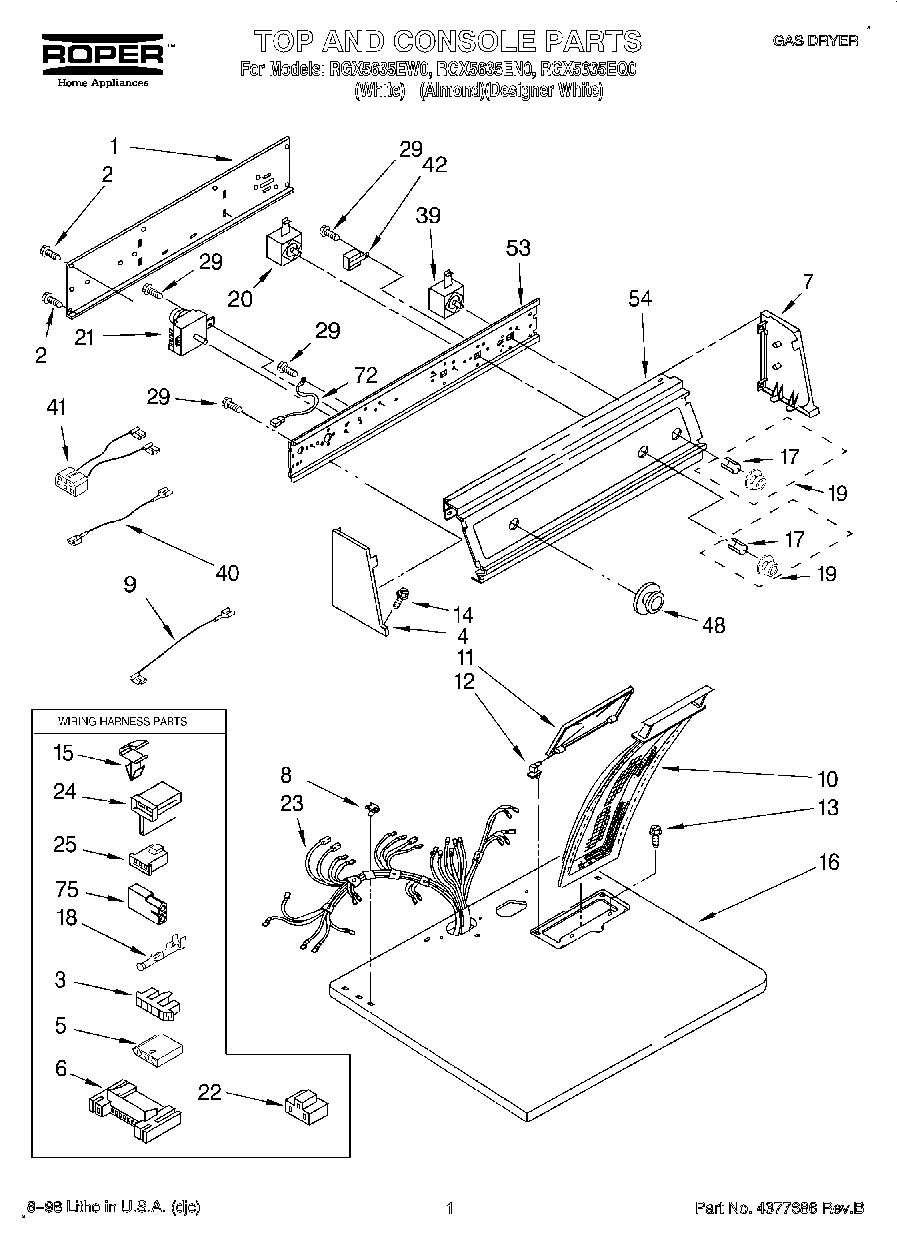

RGX5635EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

RGX5635EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGX5635EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Instructions, Door Reversing
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Label, Wiring Diagram
350938 Whirlpool Spray Gun
Guide, Use & Care
1Panel, Rear Console
2WP693995 Whirlpool Screw
3Connector, Timer
4Cap, End (L.H.) (Black)
4Cap, End (L.H.) (White)
5Connector (Door Switch)
63395683 Whirlpool Connector
7Cap, End (R.H.) (Black)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9Wire, Jumper (Tan)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top (White)
16Top (Almond)
17WP688805 Whirlpool Spring Clip
18WP94614 Whirlpool Terminal
19Knob, Control (Black)
19Knob, Control (White)
203399638 Whirlpool Switch
21WP3976574 Whirlpool Timer
223401144 Whirlpool Connector
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39Relay, Push To Start
40Wire, Jumper (Black)
418283286 Whirlpool Wire Harness
42WP694419 Whirlpool Buzzer Adjuster
48Timer Knob Assembly
48For Model REX4635EQ1
53Bracket, Control
54Panel, Control
54FOR MODEL RGX5635EQ0
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
