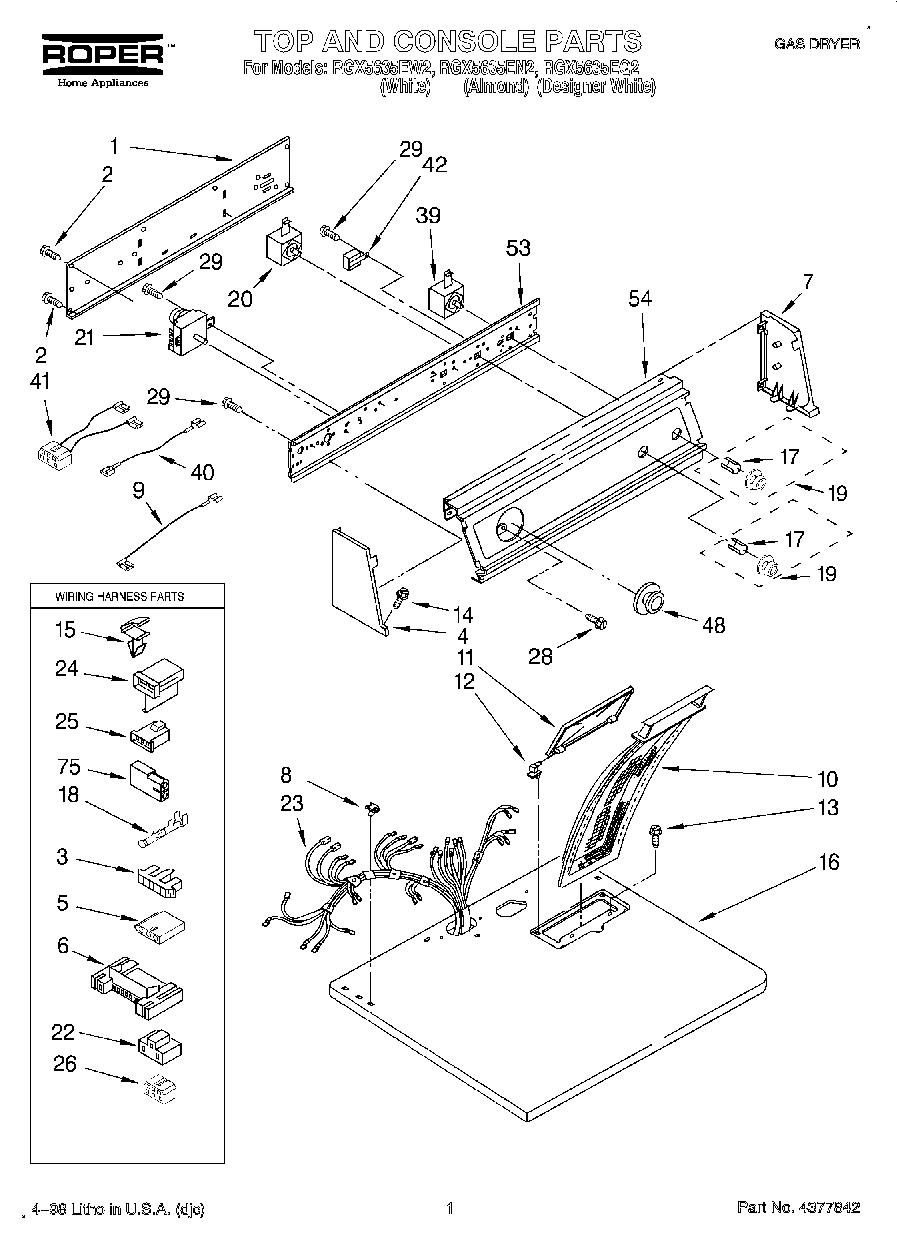

RGX5635EW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3406692
	WPL LIT3406075
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	Connector, Timer
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black)
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Black)
8	WP357213 Whirlpool Hinge Stopper
9	Wire, Jumper (Tan)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top (White)
16	Top (Almond)
17	WP688805 Whirlpool Spring Clip
18	WP94614 Whirlpool Terminal
19	Knob, Control (Black)
19	Knob, Control (White)
20	3399638 Whirlpool Switch
21	WP3976574 Whirlpool Timer
22	3401144 Whirlpool Connector
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	Block, Disconnect
28	3400859 Whirlpool Screw
29	WPW10139210 Whirlpool Screw
39	Relay, Push To Start
40	Wire, Jumper (Black)
41	8283286 Whirlpool Wire Harness
42	WP694419 Whirlpool Buzzer Adjuster
48	Timer Knob Assembly (Black)
48	Timer Knob Assembly (White)
53	Bracket, Control
54	Panel, Control (Black)
54	Panel, Control (White)
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
