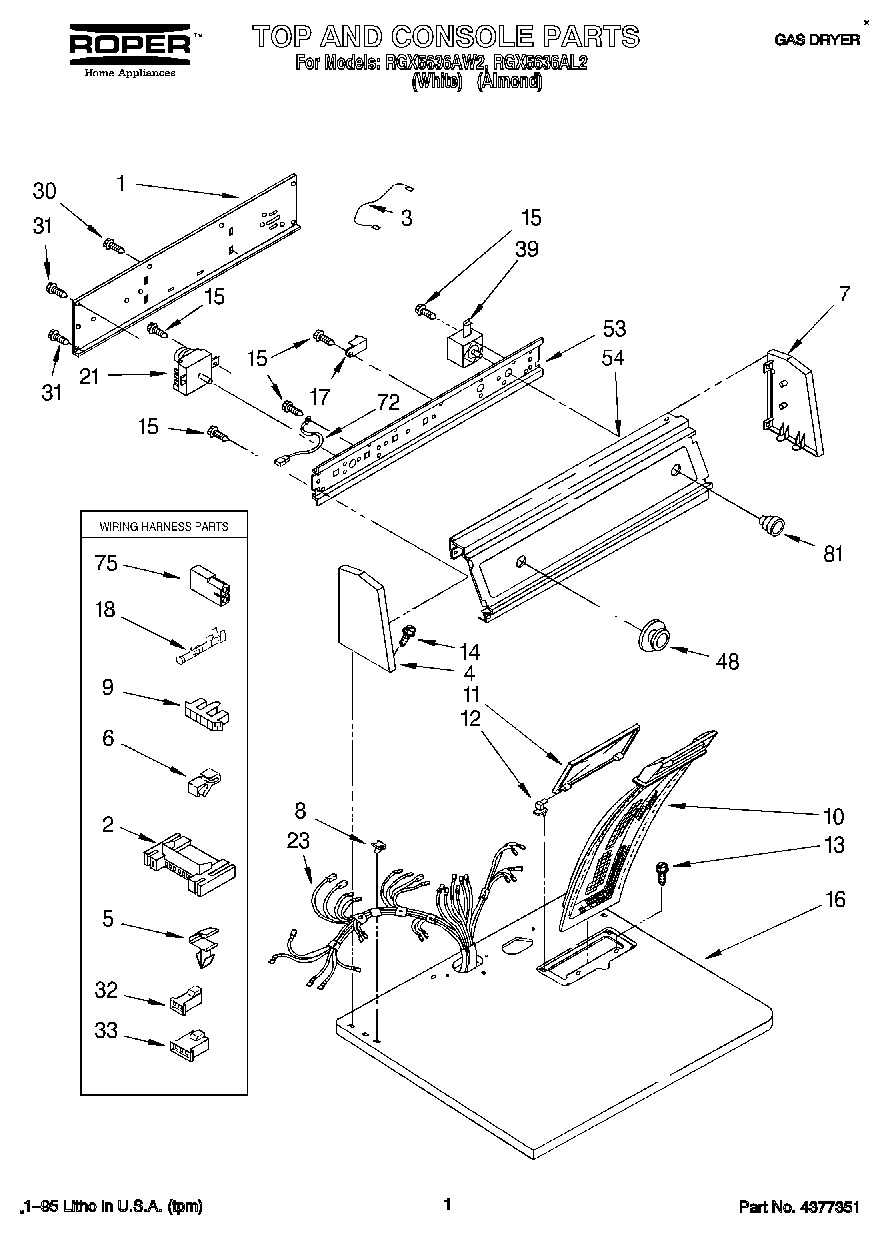

RGX5636AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

RGX5636AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGX5636AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Guide, Use & Care
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1Panel, Rear Console
23395683 Whirlpool Connector
3Wire, Jumper (Black)
3Wire, Jumper (Blue)
4Cap, End (L.H.)
5WP3394427 Whirlpool Clip
6Clip, Retainer
7Cap, End (R.H.)
8WP357213 Whirlpool Hinge Stopper
9Connector, Timer
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (Almond)
16Top (White)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
21WP3976569 Whirlpool Timer
23Harness, Wiring
30WP693995 Whirlpool Screw
31WP489069 Whirlpool Compactor Screw
32Connector, 2-Position (Gas Valve)
33Connector, 3-Position (Gas Valve)
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Knob, Push-To-Start
