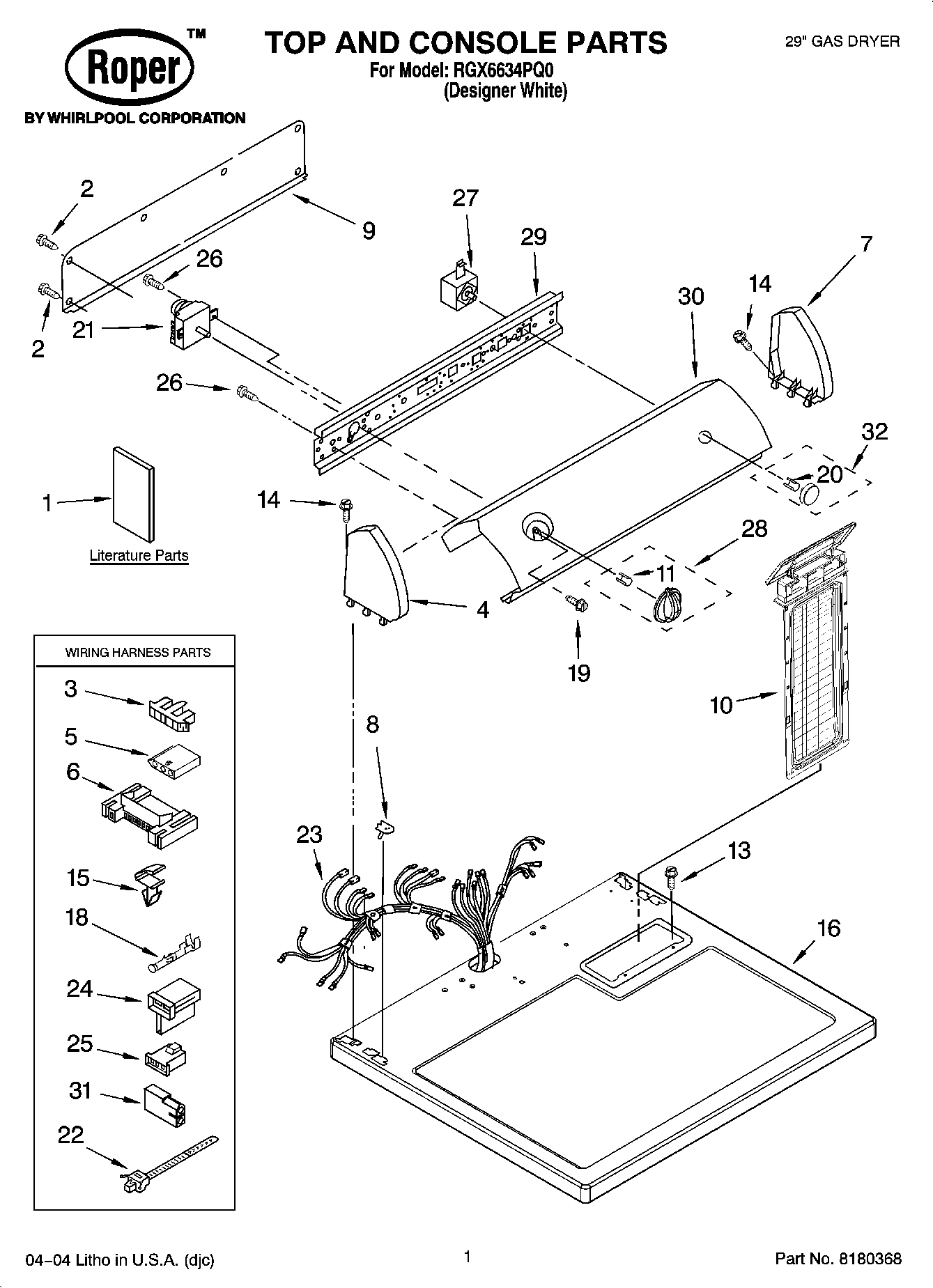

RGX6634PQ0 01 – TOP AND CONSOLE PARTS

RGX6634PQ0 01 – TOP AND CONSOLE PARTS

Written by

in

RGX6634PQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Label, Wiring Diagram)
1Following May Be Purchased
1DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
1Literature Parts (Guide, Use & Care)
1Dryer
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
20WP8536939 Whirlpool Spring Clip
21WP8299764 Whirlpool Timer
22Tie, Cable
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WPW10139210 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28WP8557455 Whirlpool Knob Timer
29Bracket, Control
30Panel, Control
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32ACCESSORY PARTS
32350938 Whirlpool Spray Gun
3272017 Whirlpool Appliance Touch-Up Paint White
32799344 Whirlpool Refrigerator Paint
32350930 Whirlpool White Spray Paint
32Knob, Push-To-Start
324392065 Whirlpool Dryer Maintenance Kit
32W11224254 Whirlpool Test Kit
32WP689790 Whirlpool Dryer Rack
32KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
