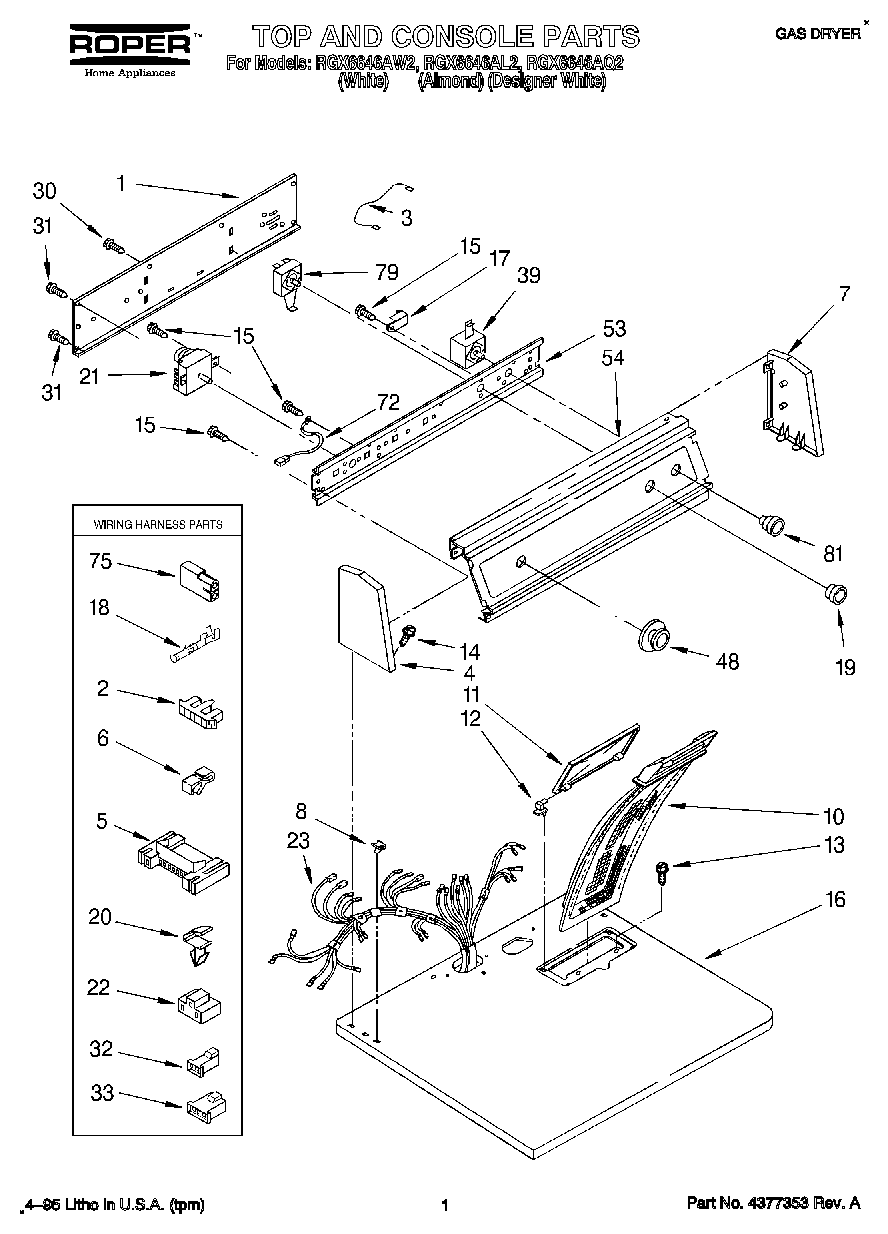

RGX6646AL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

RGX6646AL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

RGX6646AL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Guide, Use & Care
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Label, Wiring Diagram
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2Connector, Timer
3Wire, Jumper (Blue)
3Wire, Jumper (Violet)
4Cap, End (L.H.)
4FOR MODEL REL4632BQ3
53395683 Whirlpool Connector
6Clip, Retainer
7Cap, End (R.H.)
7FOR MODEL REL4632BQ3
8WP357213 Whirlpool Hinge Stopper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (Almond)
16Top (White)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
19WPL 3354748
19Knob, Temperature
20WP3394427 Whirlpool Clip
21WP3976574 Whirlpool Timer
223401144 Whirlpool Connector
23Harness, Wiring
30WP693995 Whirlpool Screw
31WP489069 Whirlpool Compactor Screw
32Connector, 2-Position (Gas Valve)
33Connector, 3-Position (Gas Valve)
39WP3398094 Whirlpool Push To Start Switch
48FOR MODEL REL4632BQ3
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
54FOR MODEL RGX6646AQ2
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
79Switch, Rotary (Temperature Selector)
81FOR MODEL REL4632BQ3
81Knob, Push-To-Start
