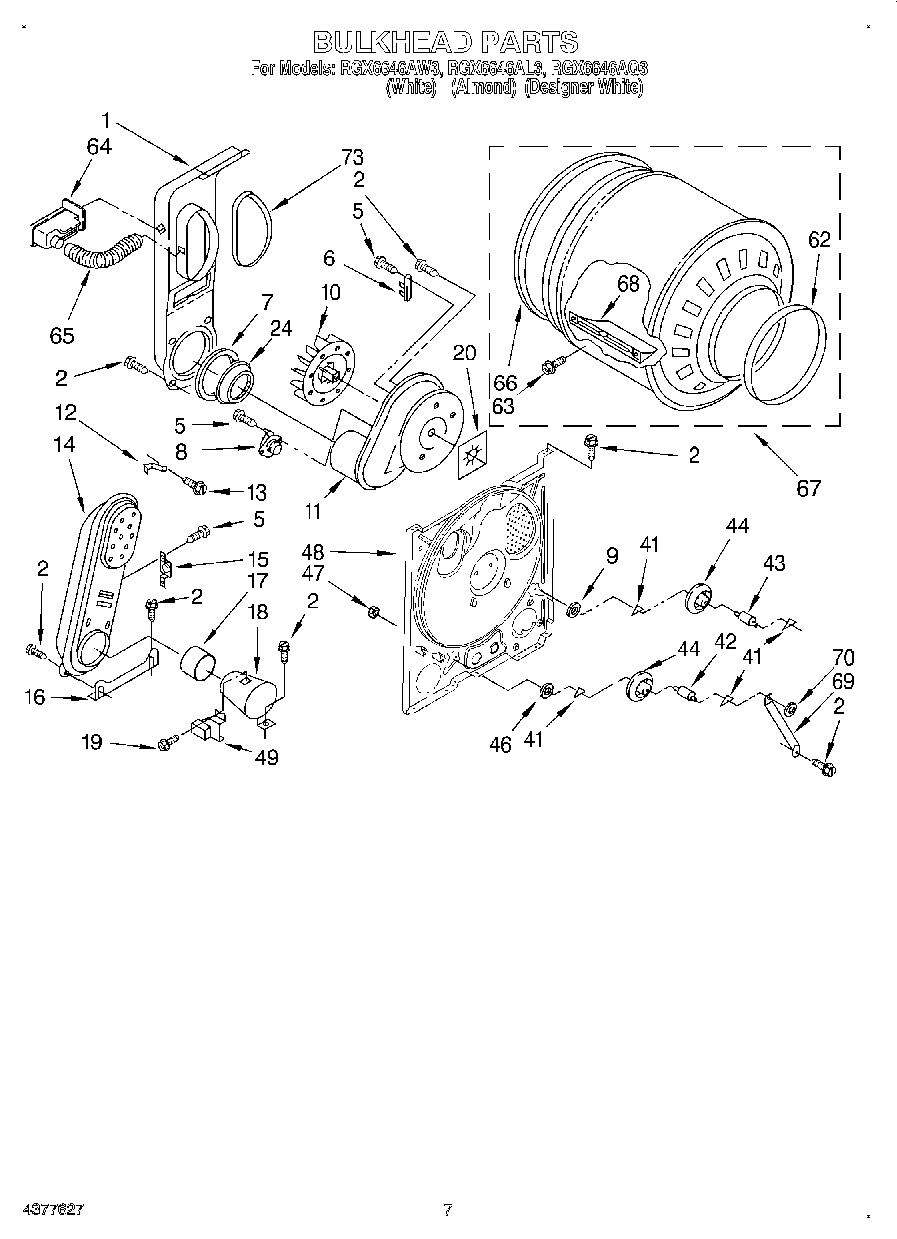

| 1 | Lint Chute Assembly |
| 2 | SCREW |
| 5 | WP90767 Whirlpool Screw |
| 6 | WP3392519 Whirlpool Dryer Thermal Fuse |
| 7 | W11415783 Whirlpool Seal |
| 8 | WP3387134 Whirlpool Dryer Cycling Thermostat |
| 9 | WP3388703 Whirlpool Washer |
| 10 | WP694089 Whirlpool Dryer Blower Wheel |
| 11 | WP8577230 Whirlpool Housing |
| 12 | 279771 Whirlpool Clip |
| 13 | WP489463 Whirlpool Refrigerator Screw |
| 15 | W11050897 Whirlpool Dryer High Limit Thermostat |
| 16 | Support, Heater Box |
| 18 | 279900 Whirlpool Box O/S1 |
| 19 | WP3390631 Whirlpool Screw |
| 20 | Seal, Blower |
| 24 | W11233063 Whirlpool Shield Assembly |
| 41 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 42 | SHAFT SUPPORT ROLLER DRYER |
| 43 | SHAFT SUPPORT ROLLER DRYER |
| 44 | 349241T Whirlpool Dryer Drum Support Roller Kit |
| 46 | WP348197 Whirlpool Washer Assembly |
| 47 | WP3359452 Whirlpool Nut |
| 48 | Bulkhead |
| 49 | WP338906 Whirlpool Dryer Gas Sensor |
| 62 | WP3394509 Whirlpool Bearing Ring |
| 63 | WPW10109200 Whirlpool Screw |
| 64 | Alert, Lint |
| 65 | Hose, Differential |
| 66 | Seal, Rear Drum |
| 67 | Drum Assembly |
| 68 | WP342847 Whirlpool Drum Baffle |
| 69 | Bracket, Support |
| 70 | WP90296 Whirlpool Clip |
| 73 | Seal |
