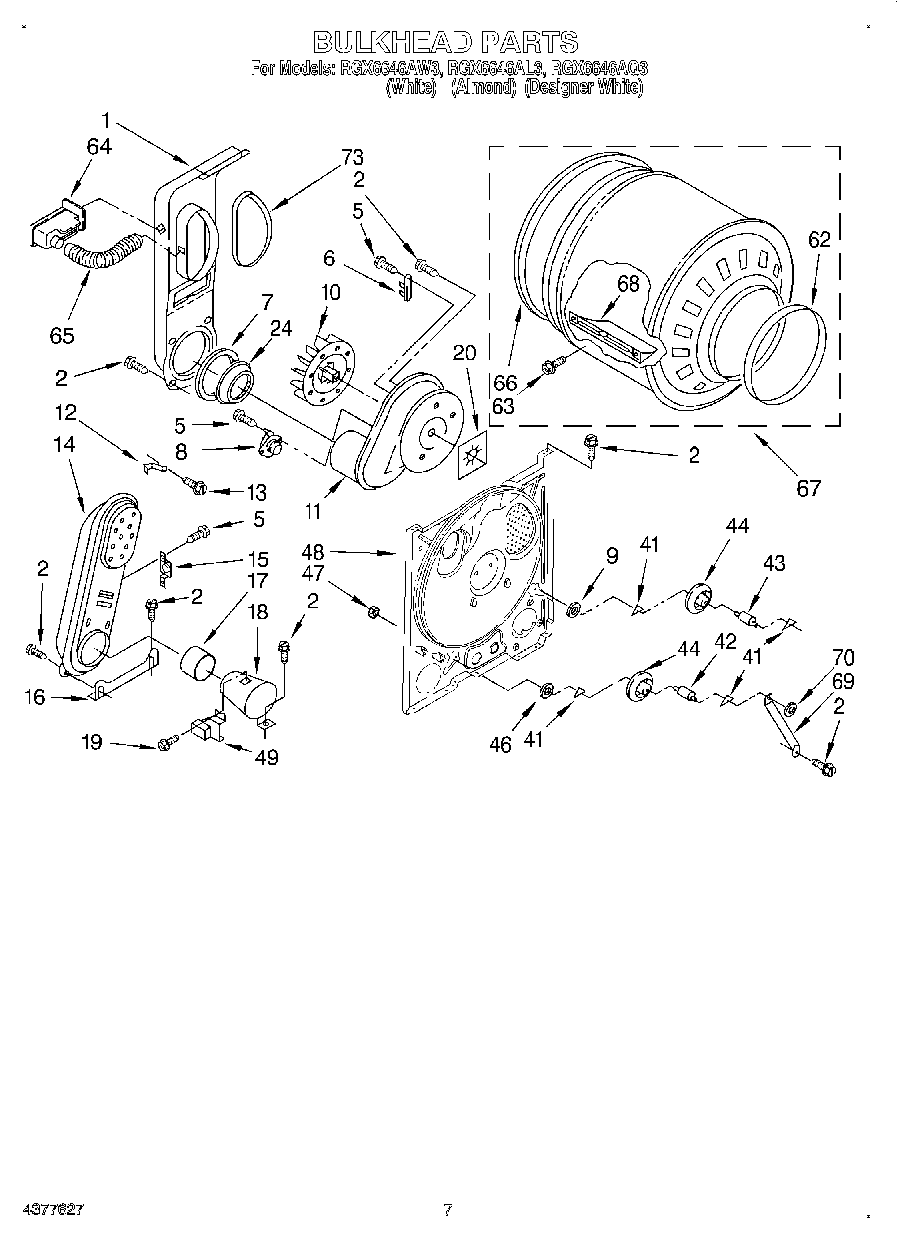

RGX6646AQ3 04 – BULKHEAD

Products

Position	Product
1	Lint Chute Assembly
2	SCREW
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	WP3388703 Whirlpool Washer
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP489463 Whirlpool Refrigerator Screw
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	Support, Heater Box
18	279900 Whirlpool Box O/S1
19	WP3390631 Whirlpool Screw
20	Seal, Blower
24	W11233063 Whirlpool Shield Assembly
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394509 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
64	Alert, Lint
65	Hose, Differential
66	Seal, Rear Drum
67	Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	Seal
