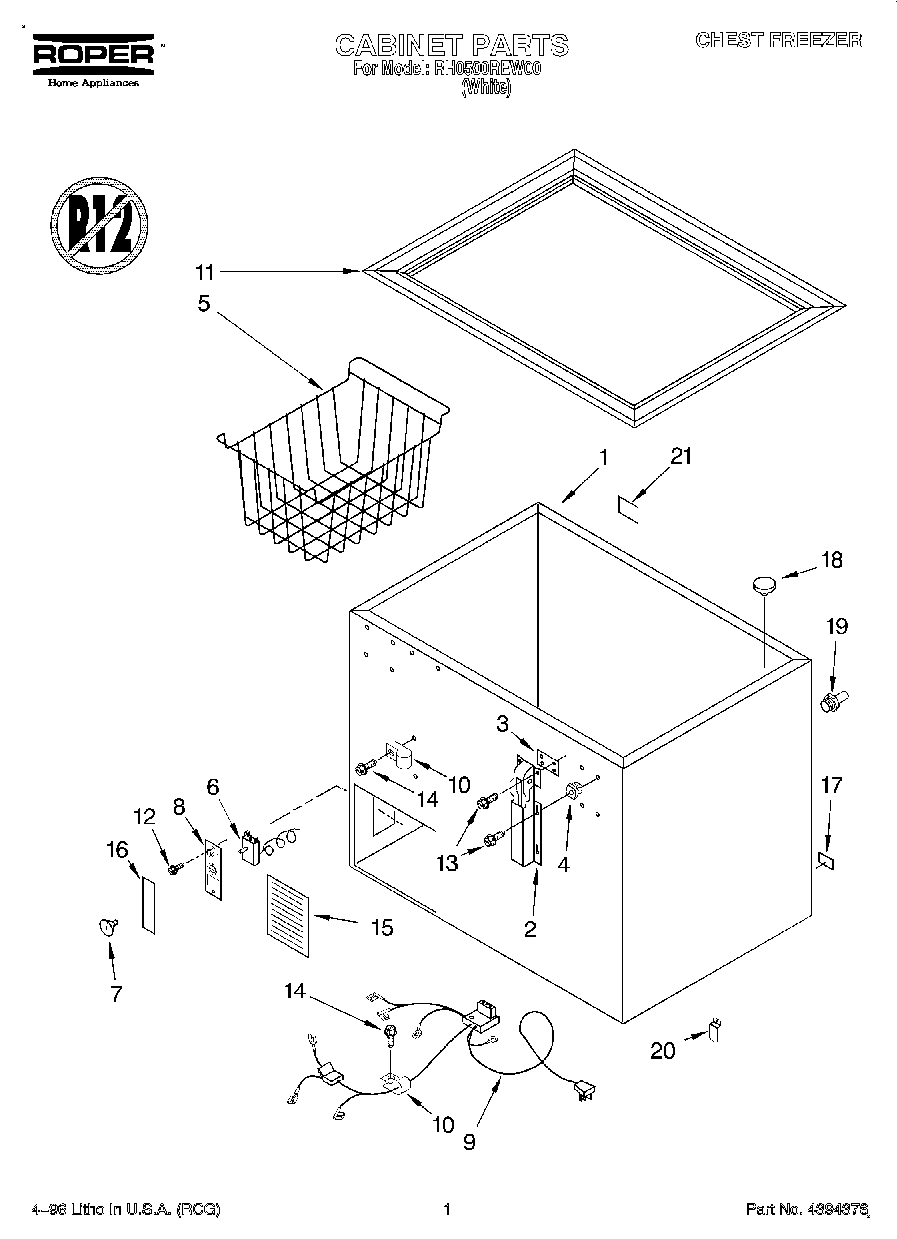

RH0500REW00 01 – SECTION

Products

PositionProduct
Energy Label
Use & Care Guide
1Cabinet (Not A Serviceable Part)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
16Insert, Control
17Drain Plug
18Drain, Plug
19W11663505 Whirlpool Hose Adapter
20Clip
21Rivet Kit (60)
21350942 Whirlpool Spray Paint
21Nameplate
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
