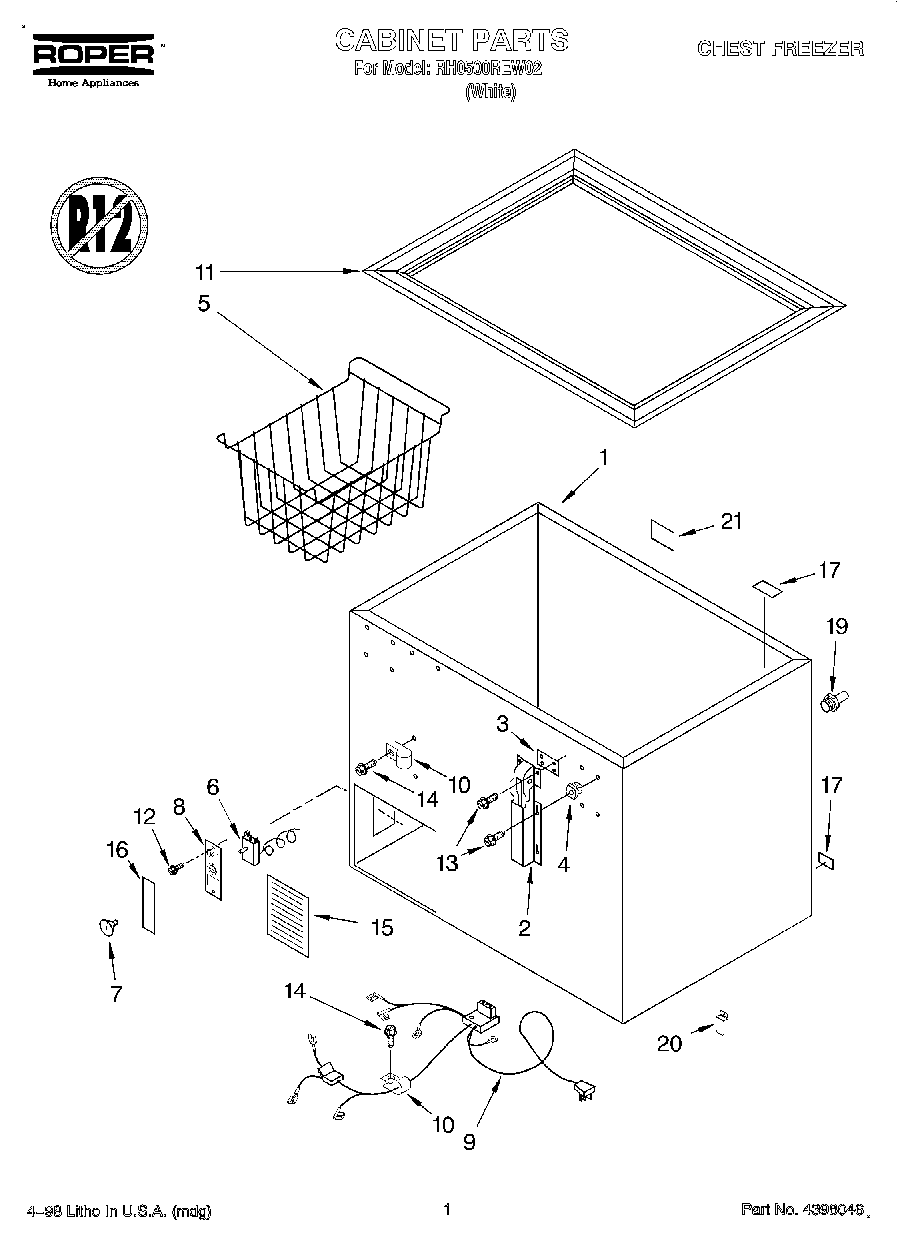

RH0500REW02 01 – SECTION

RH0500REW02 01 – SECTION

Written by

in

RH0500REW02 01 – SECTION

Products

PositionProduct
Use & Care Guide
Energy Label
1Cabinet (Not A Serviceable Part)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
16Insert, Control
17Drain Cap
19W11663505 Whirlpool Hose Adapter
20Clip
21350942 Whirlpool Spray Paint
21Nameplate
21Rivet Kit (60)
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
