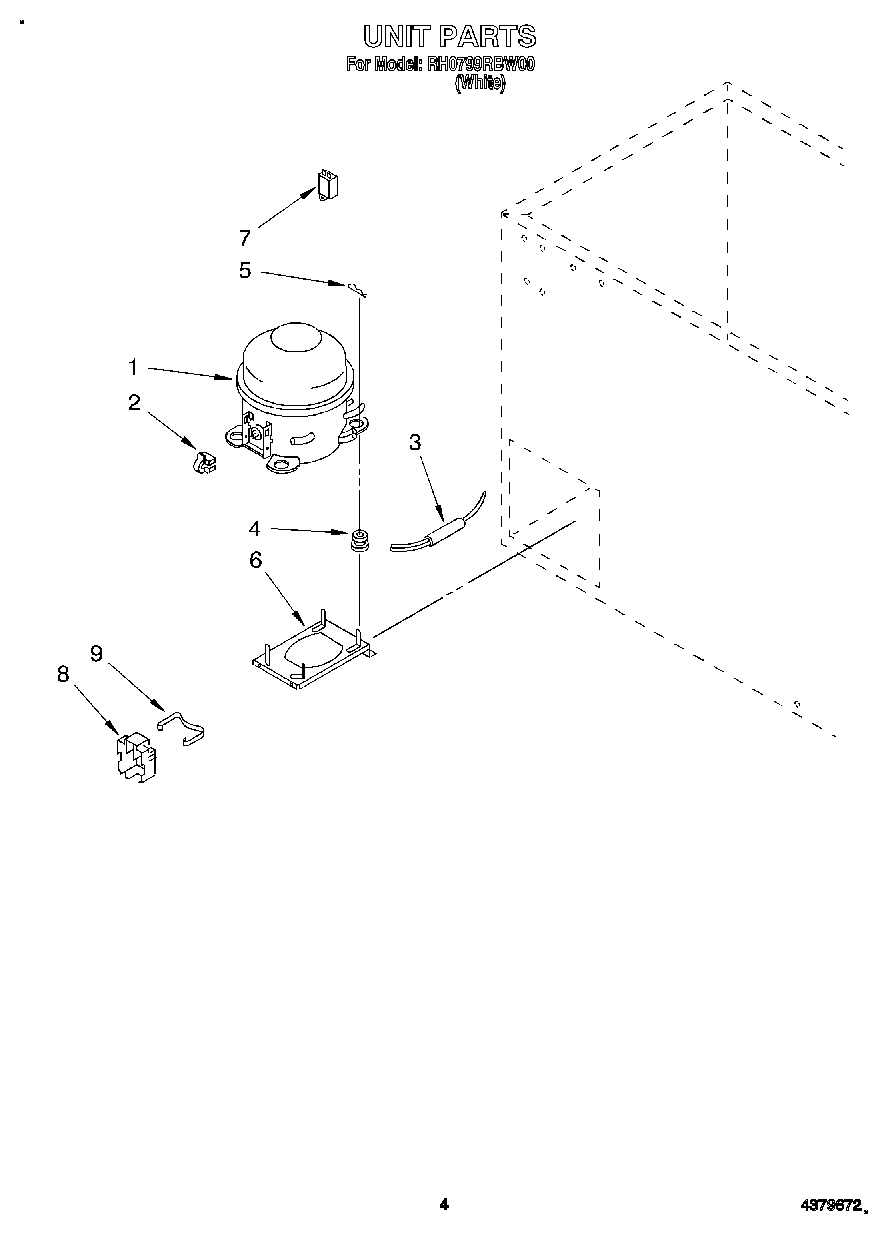

RH0799RBW00 03 – SECTION

Products

PositionProduct
1Compressor
2Relay
3W10843121 Whirlpool Refrigerator Tube
4Grommet, Mounting Compressor
5Clip, Hitch Pin
6Base, Compressor
7WPW10662129 Whirlpool Refrigerator Run Capacitor
8Cover
9Clip, Cover
