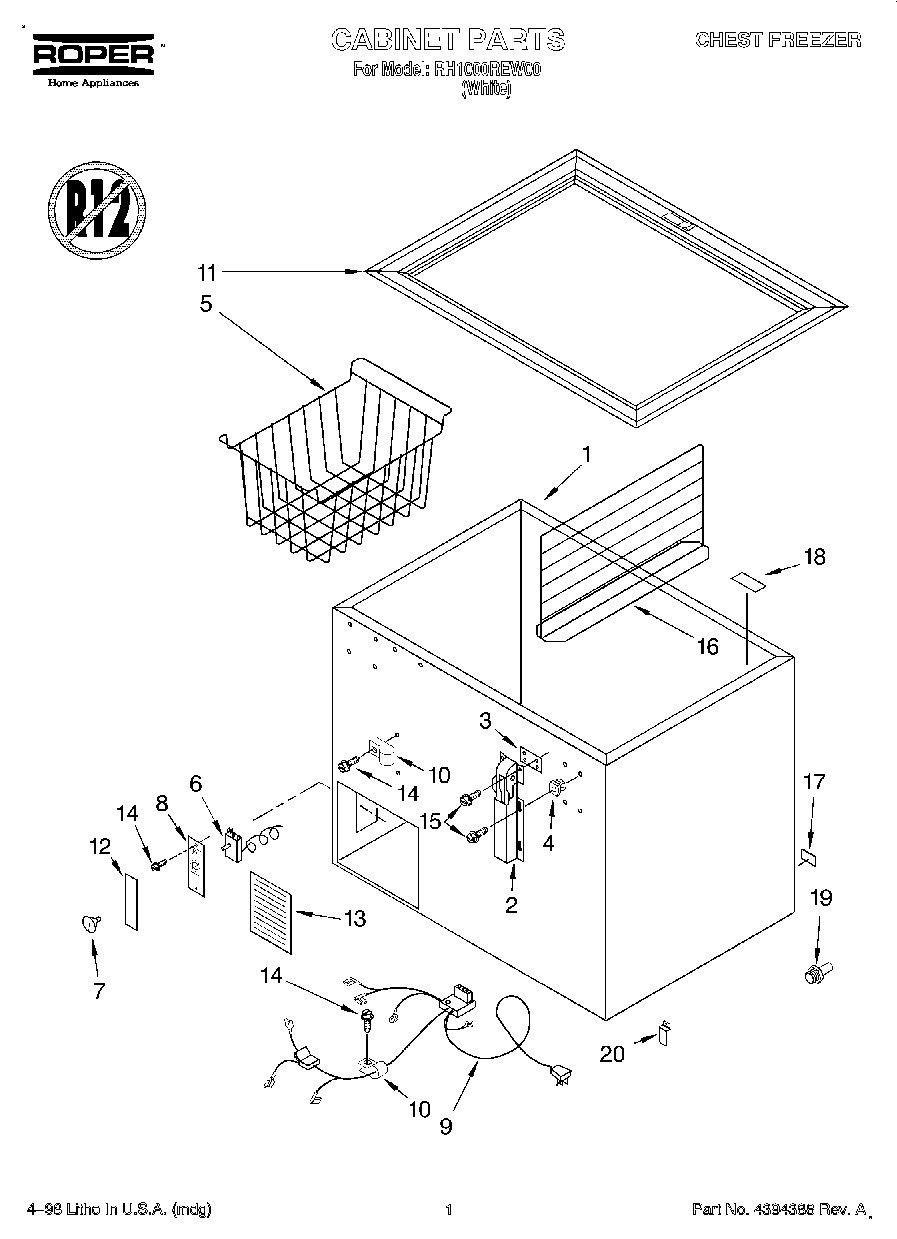

RH1000REW00 01 – SECTION

RH1000REW00 01 – SECTION

Written by

in

RH1000REW00 01 – SECTION

Products

PositionProduct
Use & Care Guide
Energy Label
1Cabinet (Not A Serviceable Part)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Insert, Control
13Access Panel
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17Drain Plug
18Drain, Cap
19W11663505 Whirlpool Hose Adapter
20Clip, Gasket (Kit Of 60)
20Clip
20799344 Whirlpool Refrigerator Paint
20350942 Whirlpool Spray Paint
2072017 Whirlpool Appliance Touch-Up Paint White
