RH1000RYW00 01 – SECTION

RH1000RYW00 01 – SECTION

Written by

in

RH1000RYW00 01 – SECTION

Products

PositionProduct

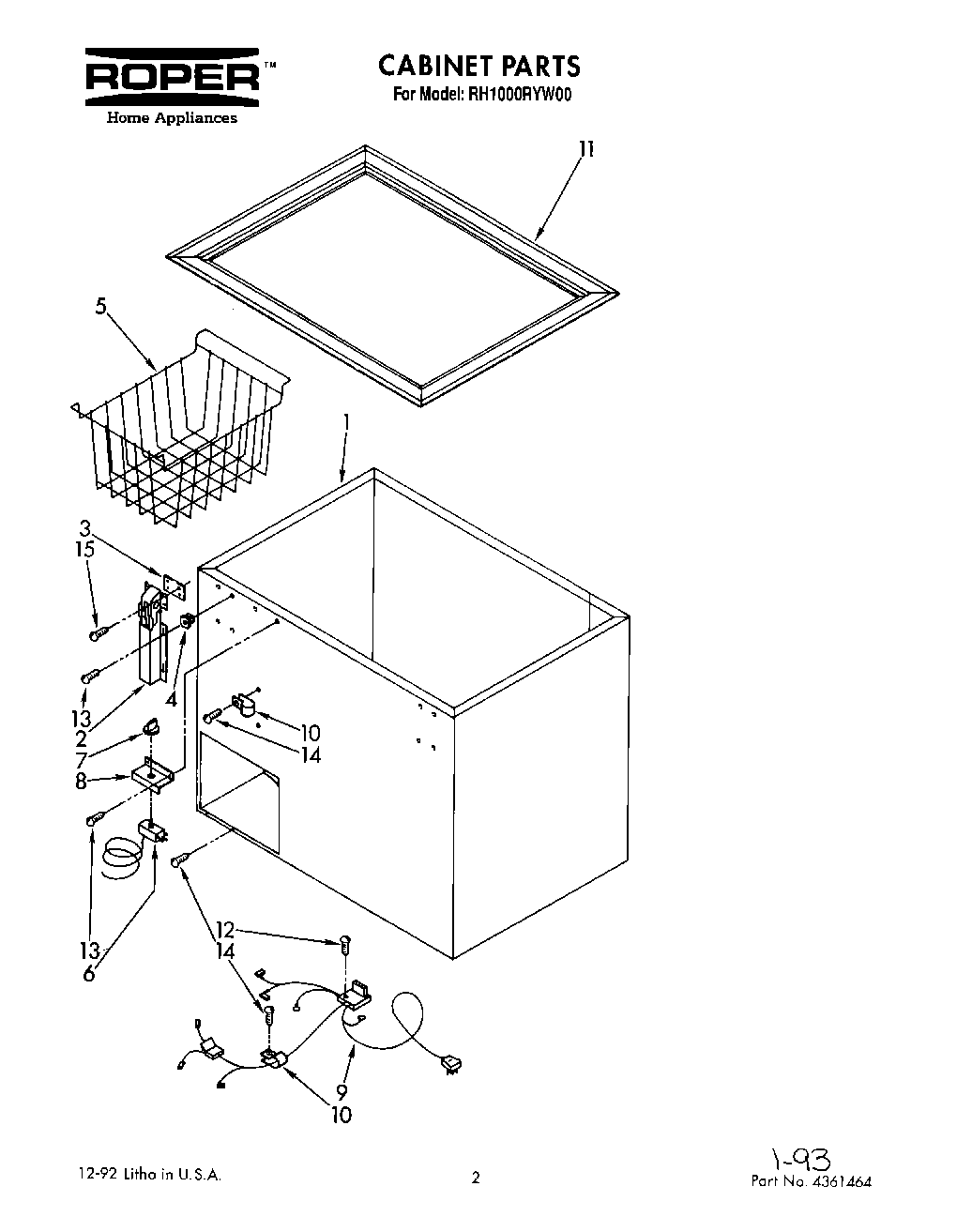

Parts List
Owner`s Manual
1Cabinet (Not A Serviceable Part)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6Thermostat
7Thermostat, Knob
8Thermostat, Control Bracket
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Screw
13WP308685 Whirlpool Microwave Screw
14WP488787 Whirlpool Refrigerator Screw
15Screw
15350942 Whirlpool Spray Paint
15799344 Whirlpool Refrigerator Paint
1572017 Whirlpool Appliance Touch-Up Paint White
