RH1200RWW00 02 – CABINET

RH1200RWW00 02 – CABINET

Written by

in

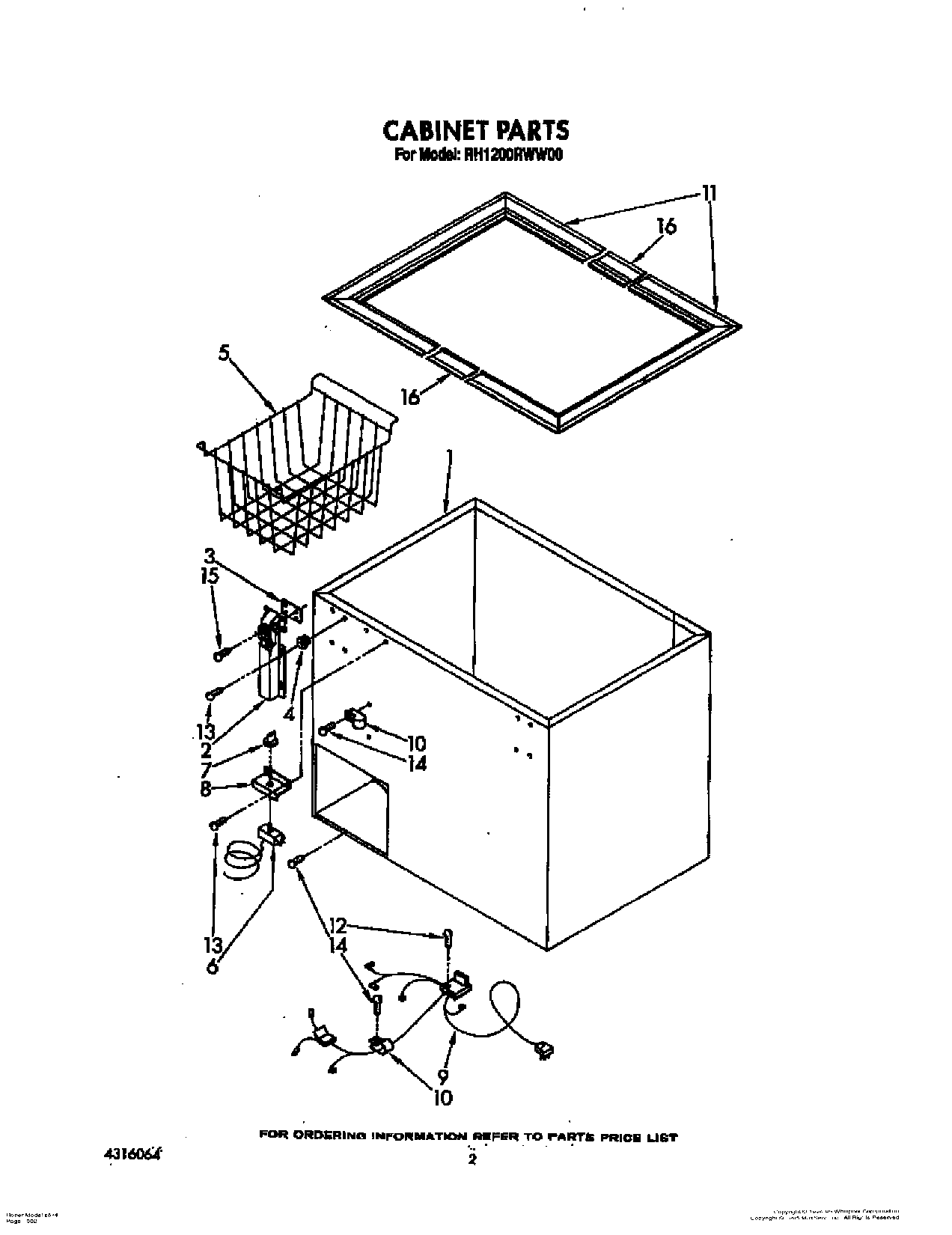

RH1200RWW00 02 – CABINET

Products

PositionProduct
Parts List
1Cabinet (Not A Serviceable Part)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6Thermostat
7Thermostat, Knob
8Thermostat, Control Bracket
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11End, Breaker (2)
12Screw
13WP308685 Whirlpool Microwave Screw
14WP488787 Whirlpool Refrigerator Screw
15Screw
164-35010-004 Whirlpool Breaker Trim
16799344 Whirlpool Refrigerator Paint
1672017 Whirlpool Appliance Touch-Up Paint White
16350930 Whirlpool White Spray Paint
