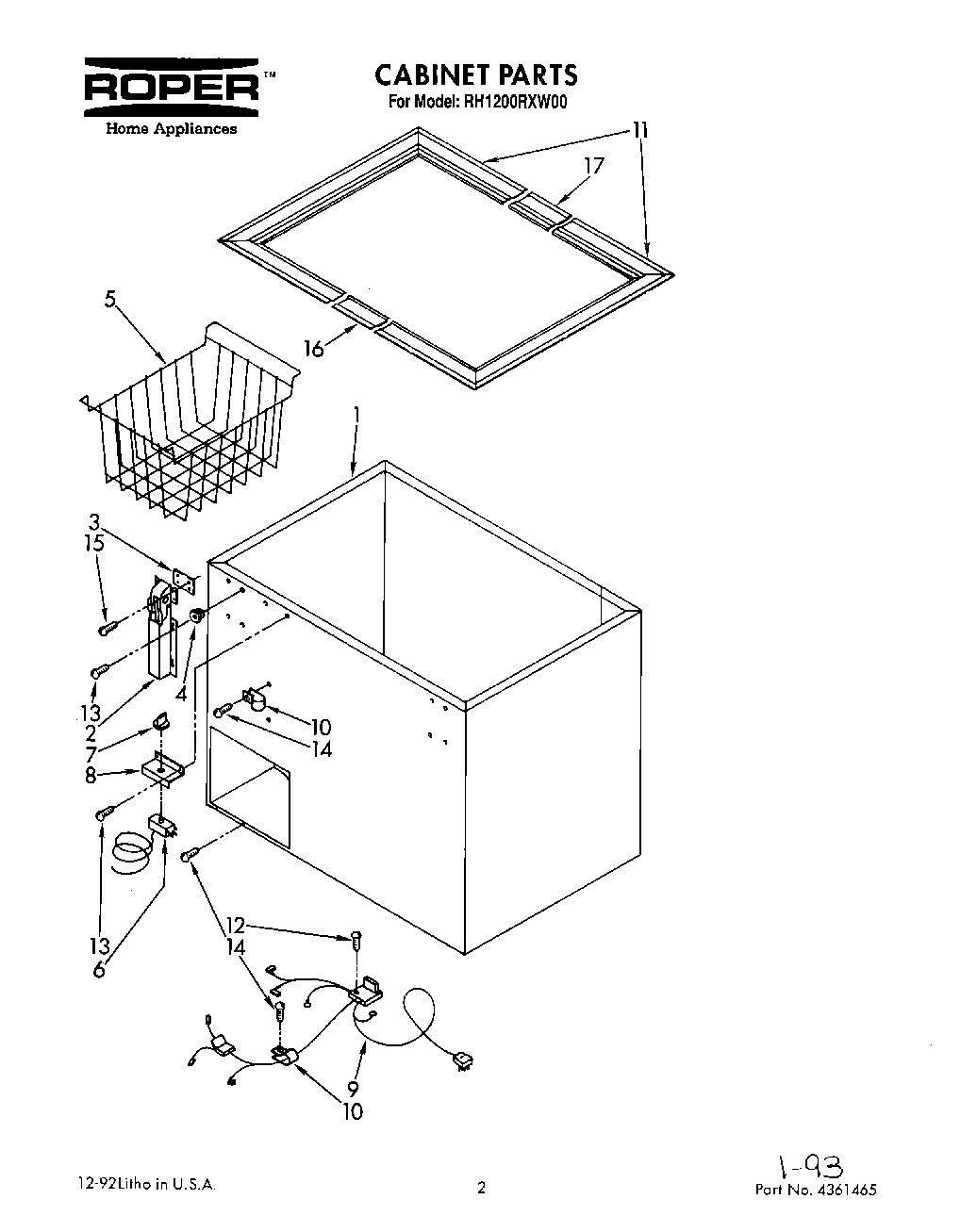

RH1200RXW00 01 – SECTION

RH1200RXW00 01 – SECTION

Written by

in

RH1200RXW00 01 – SECTION

Products

PositionProduct
Parts List
Owners Manual
1Cabinet (Not A Serviceable Part)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6Thermostat
7Thermostat, Knob
8Thermostat, Control Bracket
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11End, Breaker (2)
12Screw
13WP308685 Whirlpool Microwave Screw
14WP488787 Whirlpool Refrigerator Screw
15Screw
164-35010-004 Whirlpool Breaker Trim
1772017 Whirlpool Appliance Touch-Up Paint White
17799344 Whirlpool Refrigerator Paint
174-35011-004 Whirlpool Refrigerator Breaker Trim
17350930 Whirlpool White Spray Paint
