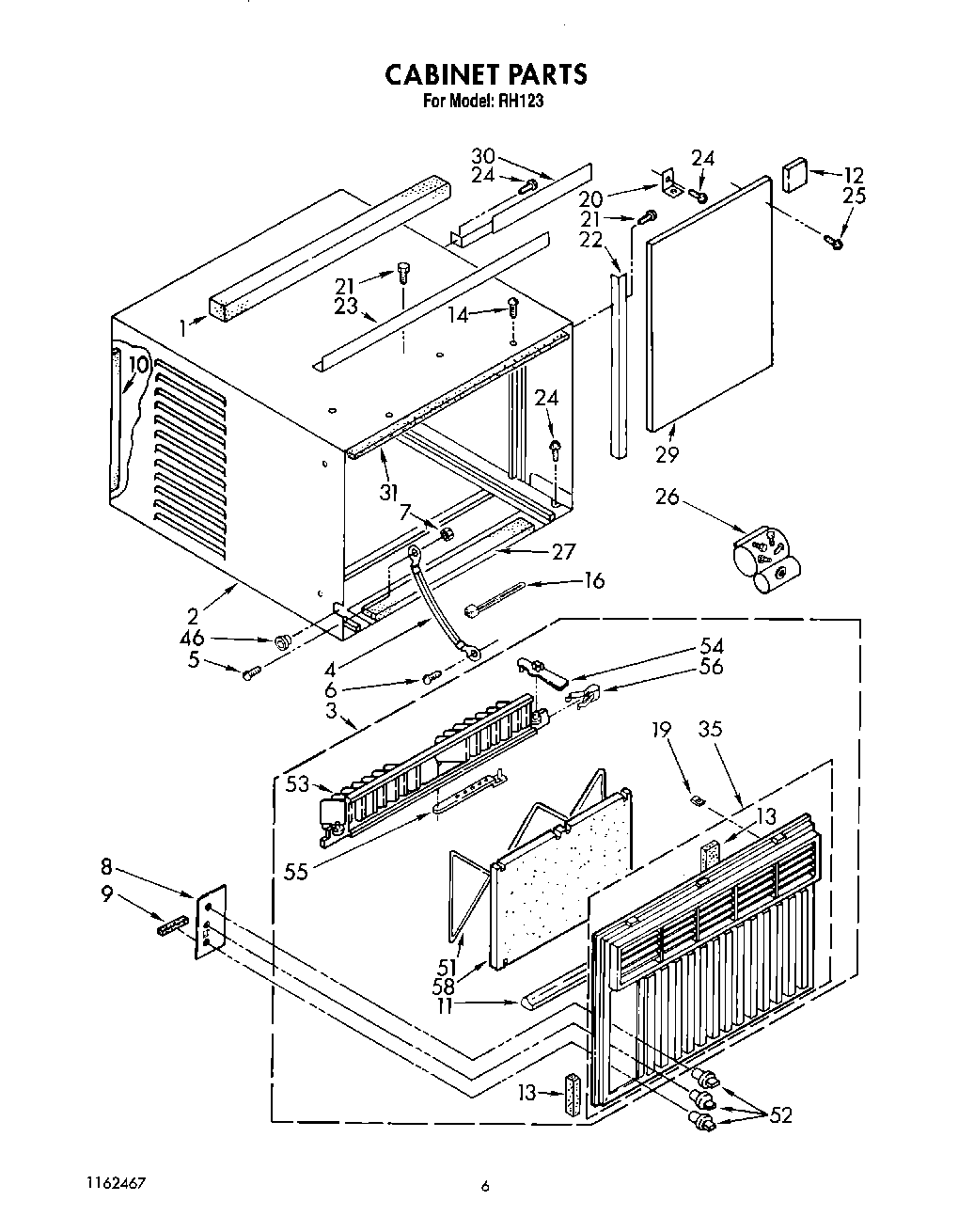

| 1 | Gasket, Meeting Rail |
| 2 | Cabinet |
| 3 | Front Assembly, Cabinet (Complete) |
| 4 | Wire, Ground |
| 5 | Screw, 8 x 3/8 |
| 6 | Screw, 8 x 3/8 |
| 7 | WP486255 Whirlpool Air Conditioner Nut |
| 8 | Plate, Escutcheon |
| 9 | Spacer, Escutcheon Plate (3) |
| 11 | Seal |
| 11 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 12 | Spacer, Block (4) |
| 13 | Seal |
| 14 | Screw (2) |
| 16 | WPW10339879 Whirlpool Wire Tie |
| 19 | Clip, Cabinet Front (2) |
| 20 | Bracket |
| 21 | WP308685 Whirlpool Microwave Screw |
| 22 | Angle (2) |
| 23 | Angle, Top |
| 24 | Screw, Wood 8-15 x .750 |
| 25 | WP965173 Whirlpool Dishwasher Screw |
| 26 | Bag, Accessory |
| 27 | Seal |
| 29 | Bracket, R.S. |
| 30 | Bracket, L.S. |
| 30 | Bracket, R.S. |
| 31 | Insulation, Cabinet (Top) |
| 31 | WPL 647847 |
| 31 | WPL 647848 |
| 35 | Front, Cabinet |
| 46 | Grommet, Appliance Cable |
| 51 | Retainer, Filter |
| 52 | Knob, Control (3) |
| 53 | Louver, Vertical |
| 54 | Handle, Vertical Louver (2) |
| 55 | Link, Vertical Louver (2) |
| 56 | Detent Spring (2) |
| 58 | Filter |
