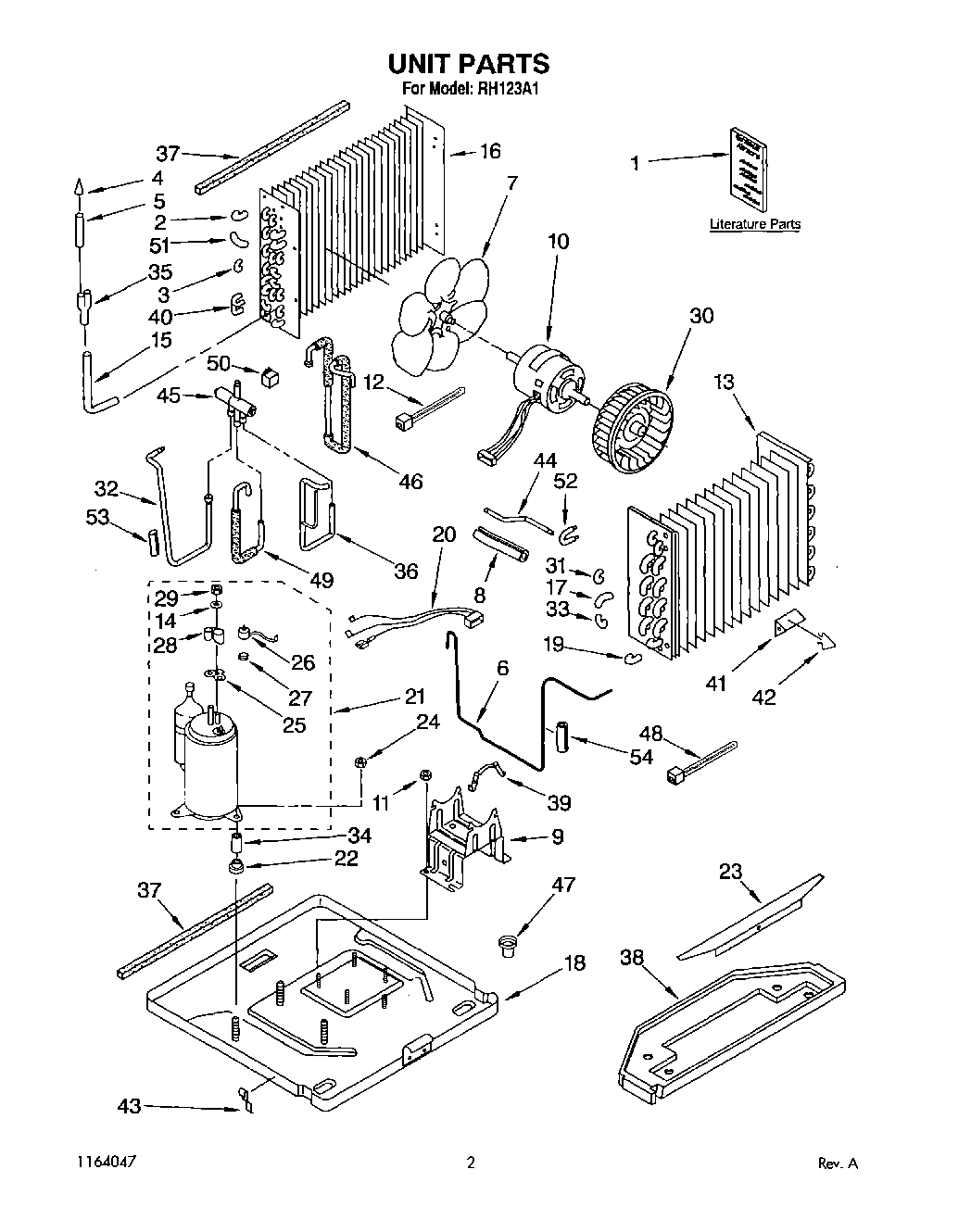

RH123A1 02 – UNIT, LITERATURE

Products

Position	Product
1	Use & Care Guide
1	LITERATURE PARTS (Instructions, Installation)
1	Tech Sheet
1	List, Repair Parts
1	Wiring Diagram
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Item 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, 90~ Connect
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
19	Return Bend (2)
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Cover, Pan
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Tube Assy., Valve To Condenser
33	Bend, Return Evaporator (4)
34	Sleeve (3)
35	Tube, Flow Divider
36	Tube Assy., Valve to Evaporator
37	Seal, Condenser Bottom
37	WP854334 Whirlpool Air Conditioner Sealing Strip
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Bend, Return (3-Way)
41	Anticipator
42	Clip, Anticipator
43	Clamp (2)
44	Tube, Suction
45	Valve, Reversing
46	Tube Assy., Valve to Discharge
47	Cup, Condensate Drain
48	Cable, Tie
49	Tube Assy., Valve to Accumulator
50	Coil, Solenoid
51	Tube, Riser (2)
52	Bend Return Three-Way
53	Dampener, T
54	WPL 1162344
