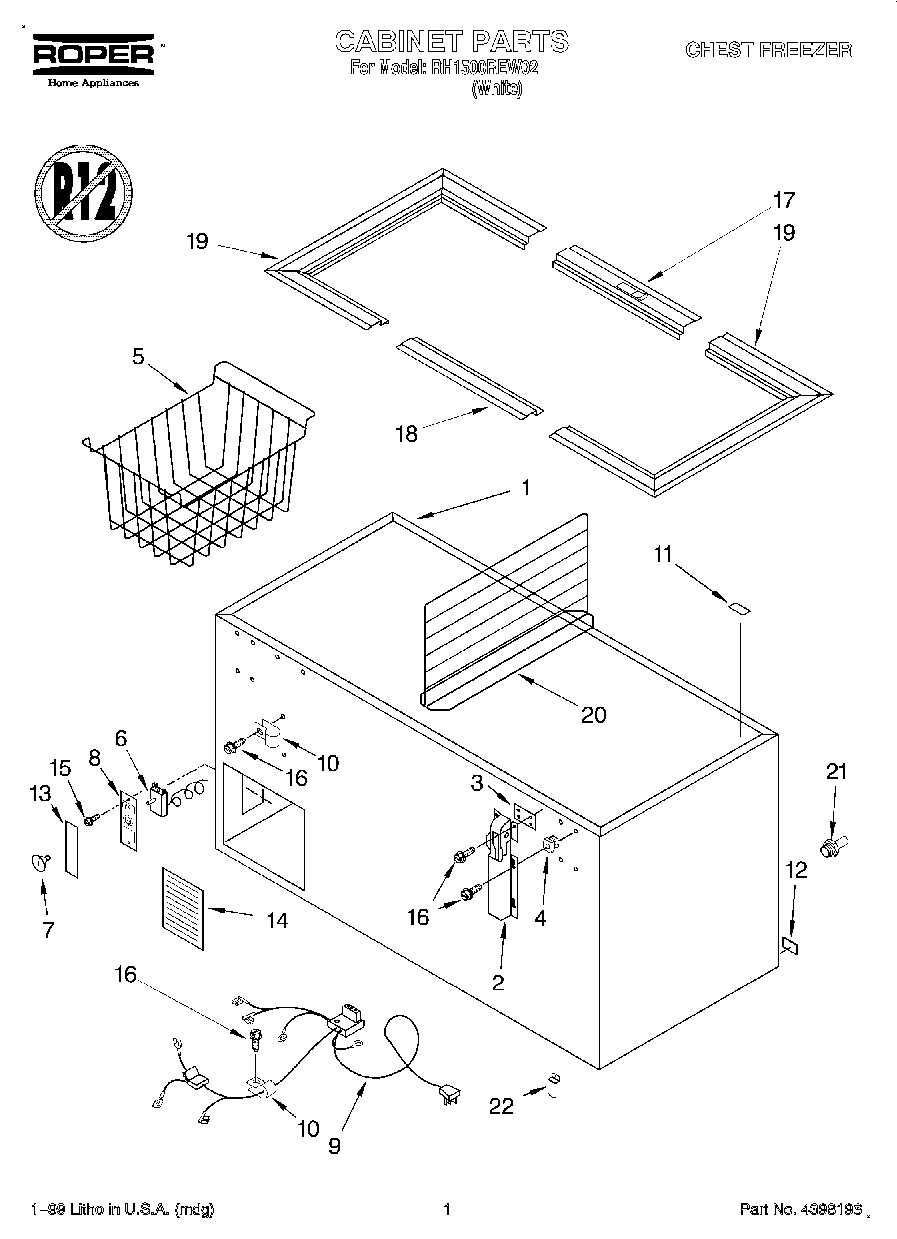

RH1500REW02 01 – SECTION

Products

Position	Product
	Energy Label
	Owner`s Manual
1	Cabinet (Not A Serviceable Part)
2	4356490 Whirlpool Refrigerator Door Hinge
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Knob, Thermostat
8	W10682894 Whirlpool Refrigerator Control Box
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
11	Drain, Cap
12	Drain Plug
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4-35011-004 Whirlpool Refrigerator Breaker Trim
18	4-35010-004 Whirlpool Breaker Trim
19	W11045300 Whirlpool Refrigerator Trim Bracket
20	Divider
21	W11663505 Whirlpool Hose Adapter
22	Clip
22	Clip, Gasket (Kit Of 60)
22	350942 Whirlpool Spray Paint
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
