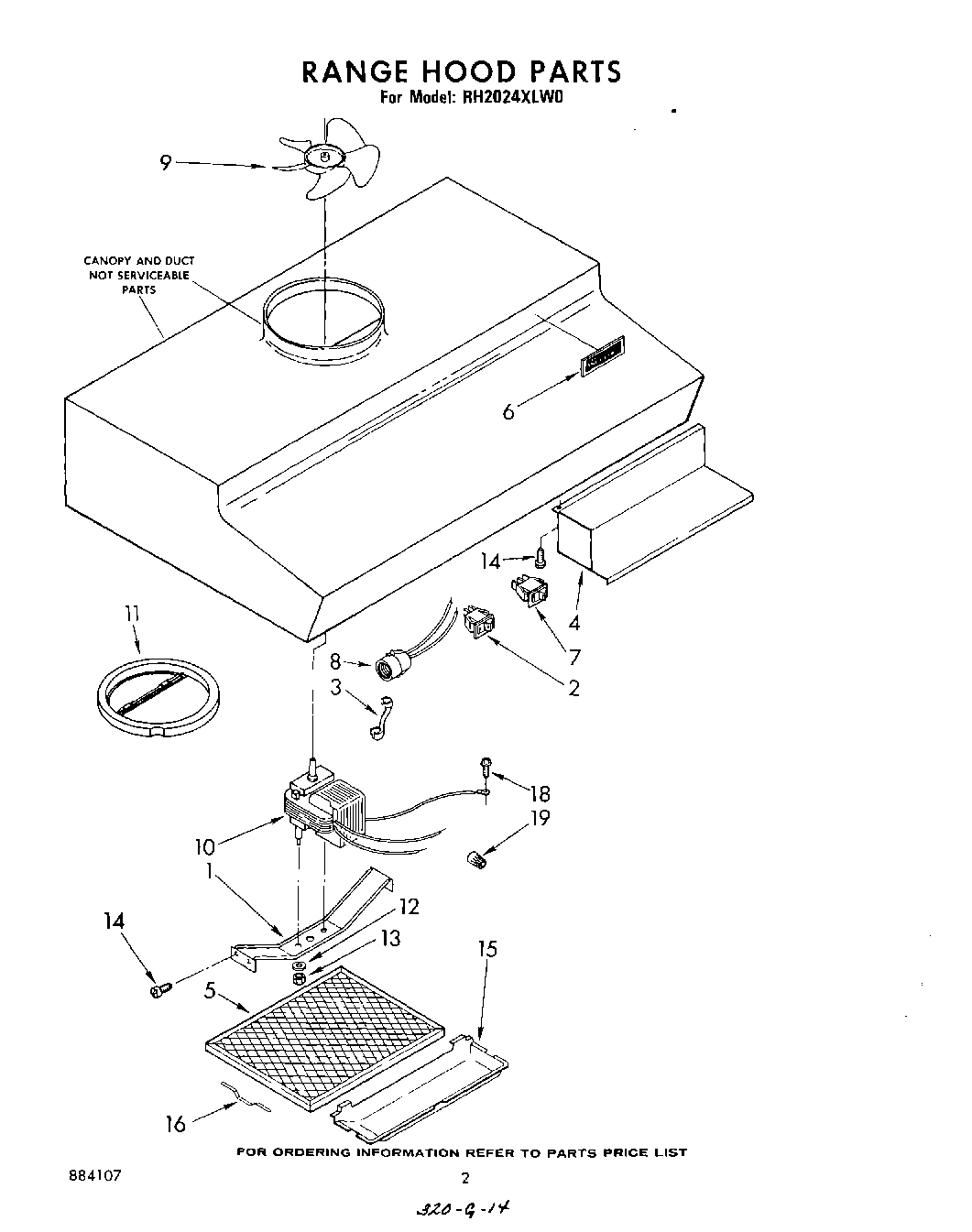

RH2024XLW0 02 – SECTION

Products

Position	Product
1	Bracket, Motor
2	W10673703 Whirlpool Rocker Switch
3	Bushing, Strain Relief
4	Cover, Wiring (Platinum)
4	Cover, Wiring (Toast)
4	Cover, Wiring (Almond)
4	Cover, Wiring (White)
5	Filter, Grease
6	Nameplate
7	Switch, Fan
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Damper Assembly
12	Washer, No. 8 (2)
13	WP486255 Whirlpool Air Conditioner Nut
14	WP489069 Whirlpool Compactor Screw
15	Light Lens
16	Spring, Filter
18	Screw, 10-32 x 3/8
19	Order Blank, Filter
19	Installation & Operating Instructions
19	Connector, Wire
19	List, Parts
