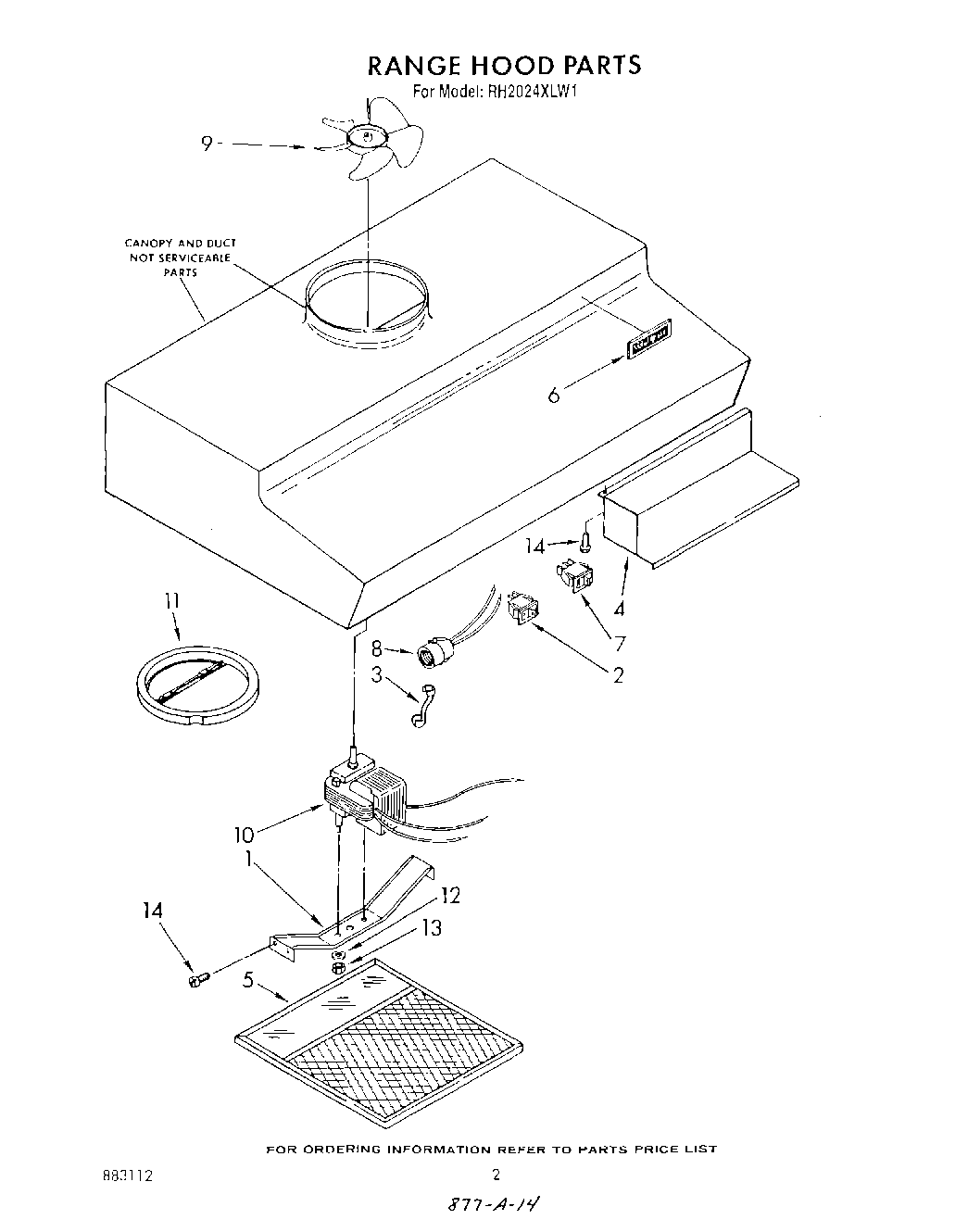

RH2024XLW1 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Order Blank, Filter
	Instructions, Installation & Operating
1	Bracket, Motor
2	W10673703 Whirlpool Rocker Switch
3	Bushing, Strain Relief
4	Cover, wiring (White)
4	Cover, Wiring (Stainless Steel)
4	Cover, Wiring (Almond)
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate
7	Switch, Fan
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Damper Assembly
12	Washer, No. 8 (2)
13	WP486255 Whirlpool Air Conditioner Nut
14	WP489069 Whirlpool Compactor Screw
